Powertrain Control Module (Pcm): Removal

  1. Disconnect battery ground cable.
  2. Disconnect PCM wiring harness connectors from PCM.
  3. Remove PCM from bracket.

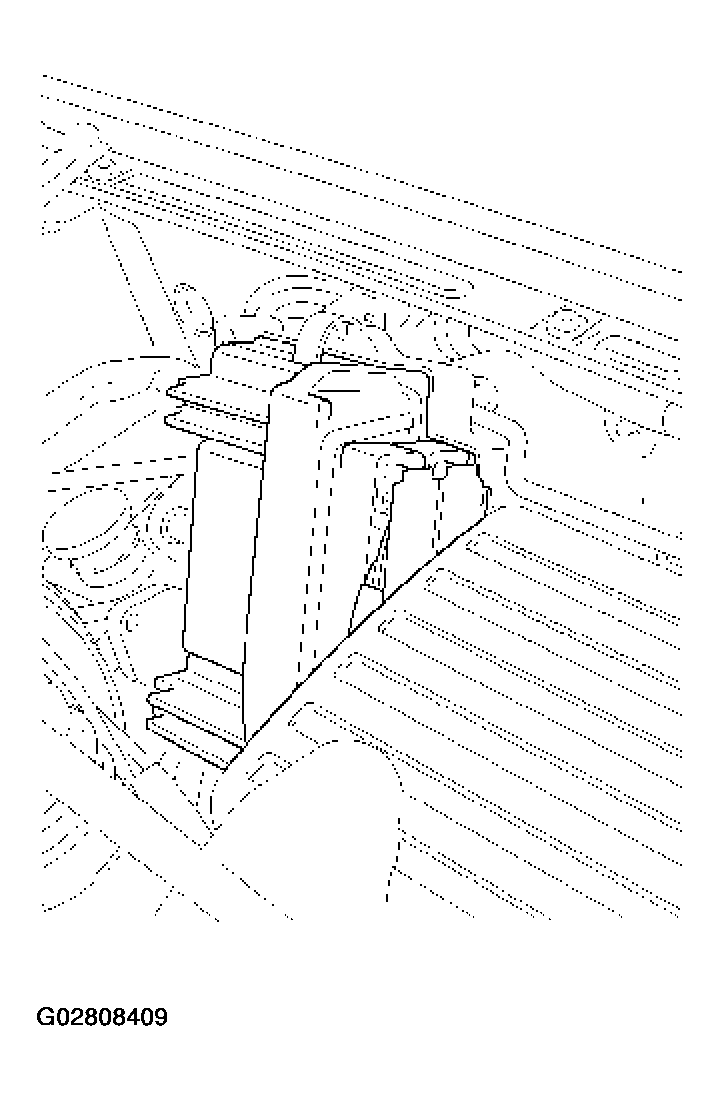

    Fig 1: Locating Powertrain Control Module
    G02808409Courtesy of ISUZU MOTOR CO.
