Disassembled View: Notes

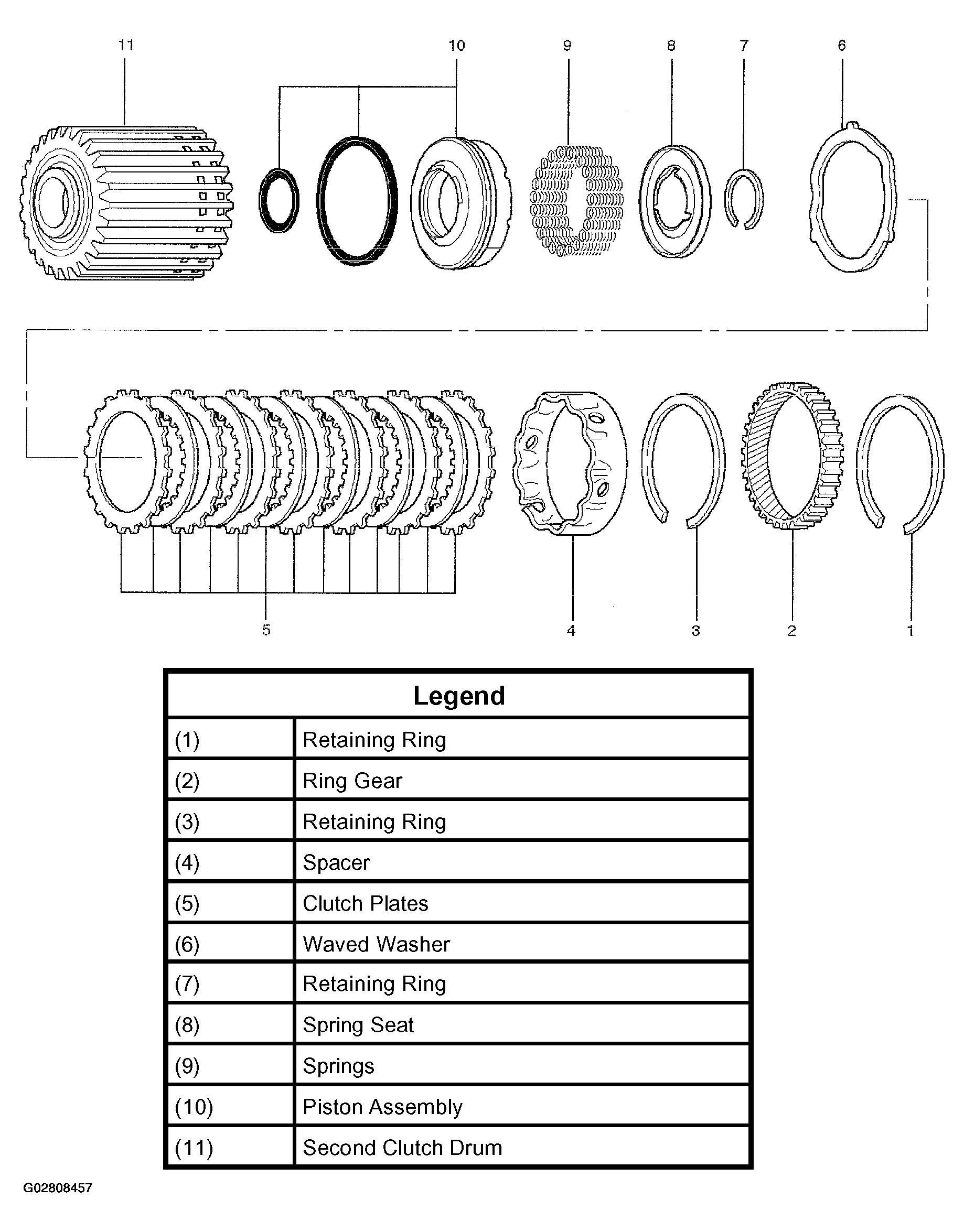

Fig 1: Disassembled View Of Second Clutch
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
