Disassembled View: Reassembly

  1. Install piston assembly (10) into the second clutch drum (11).
    • Lubricate the lip seal with transmission fluid. Use the J-23080-A second clutch piston installer to protect the outer piston lip seal.
      NOTE: Lip of the seal should point toward front of transmission.
    • Remove the installer.

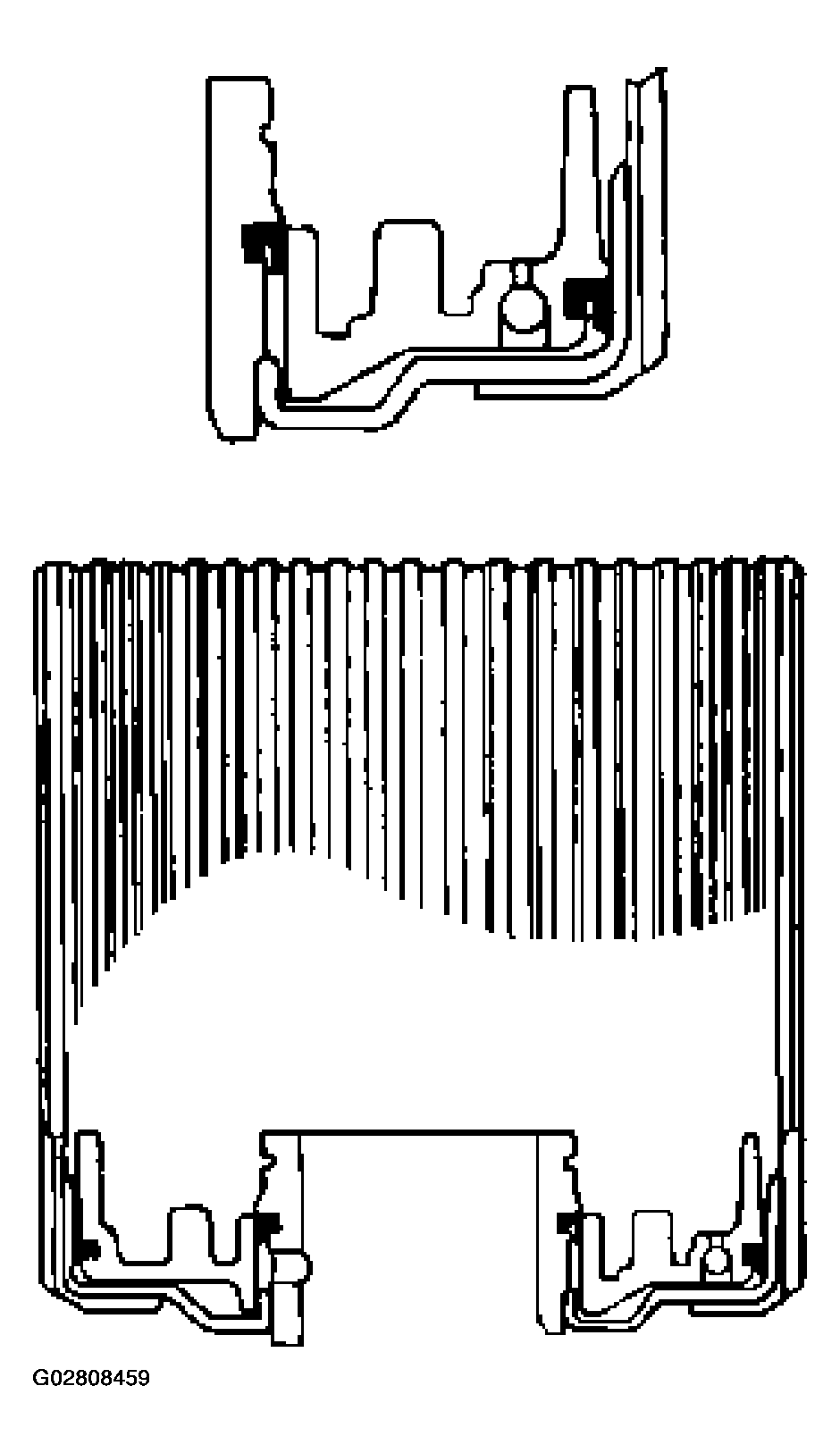

      Fig 1: Installing Piston Assembly Into Second Clutch Drum
      G02808459Courtesy of ISUZU MOTOR CO.
  2. Install twenty-two piston springs (9) and spring seat (8) on the second clutch piston (10). Place retaining ring (7) onto spring seat.
    • Use the J -23327 compressor to compress the piston springs.
      NOTE: Do not let spring seat catch in ring groove.
    • Remove the compressor.
  3. Install waved plate (6) and clutch plates (5). Start with a steel plate and alternate with lined plates.
    • Align second clutch inner tangs.
  4. Install spacer (4), with the fluted end toward clutch plates.
  5. Install retaining ring (3), ring gear (2) and retaining ring (1).
