Disassembled View: Disassemble

  1. Compress spring seat using the J-23075 spring compressor and J-23075-12 adapter tool.
    NOTE: Do not over-stress the springs and seat. This will cause damage to the spring seat.
    • Remove the tool.
    • Remove retaining ring (1).

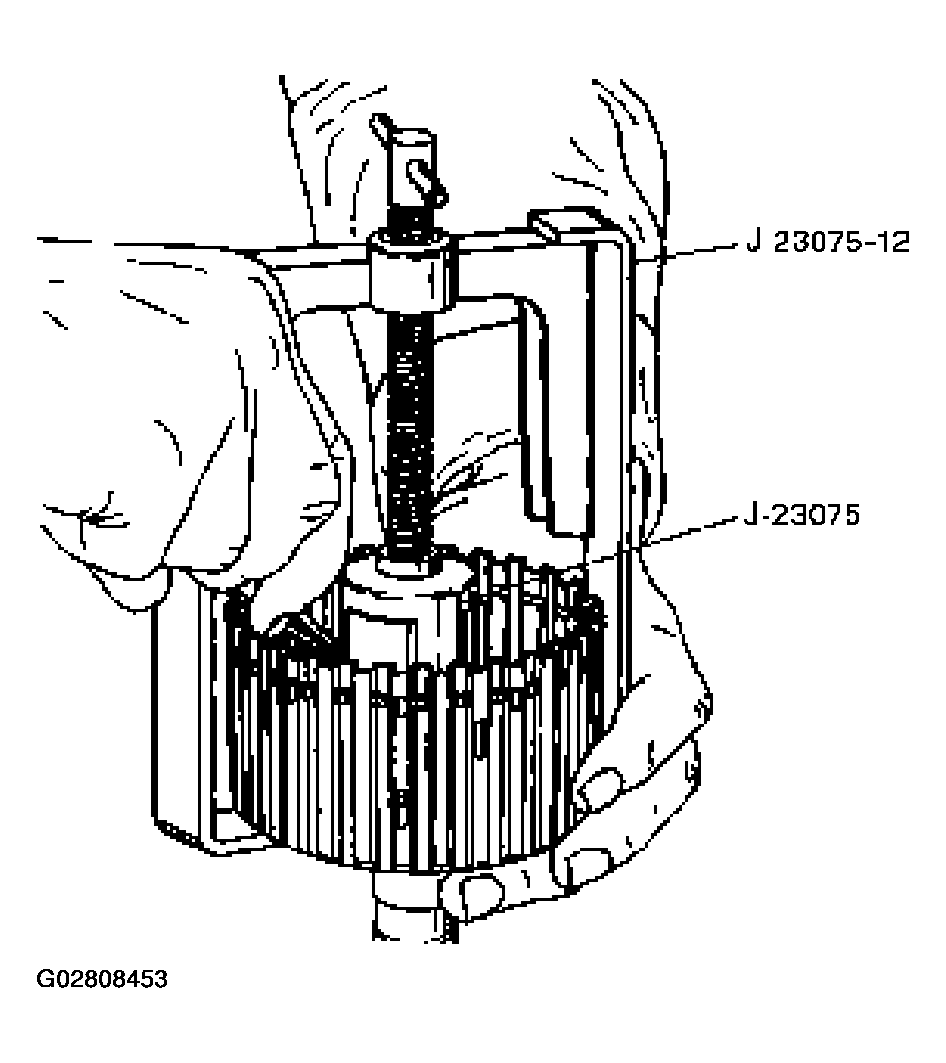

      Fig 1: Compressing Spring Seat
      G02808453Courtesy of ISUZU MOTOR CO.
  2. Release the spring seat (2).
    NOTE: Do not let the spring seat catch in the ring groove.
    • Remove spring seat (2) and springs (3).
  3. Remove piston assembly (4) from third clutch drum (5).
