Disassembled View: Reassembly

  1. The lip of the piston seal must point toward the front of the transmission. Lubricate the seal lip with transmission fluid.
    • Install piston assembly (4) into the third clutch drum (5). Use the J-23084 third clutch piston installer to protect the outer seal during installation.
    • Remove the seal installer.

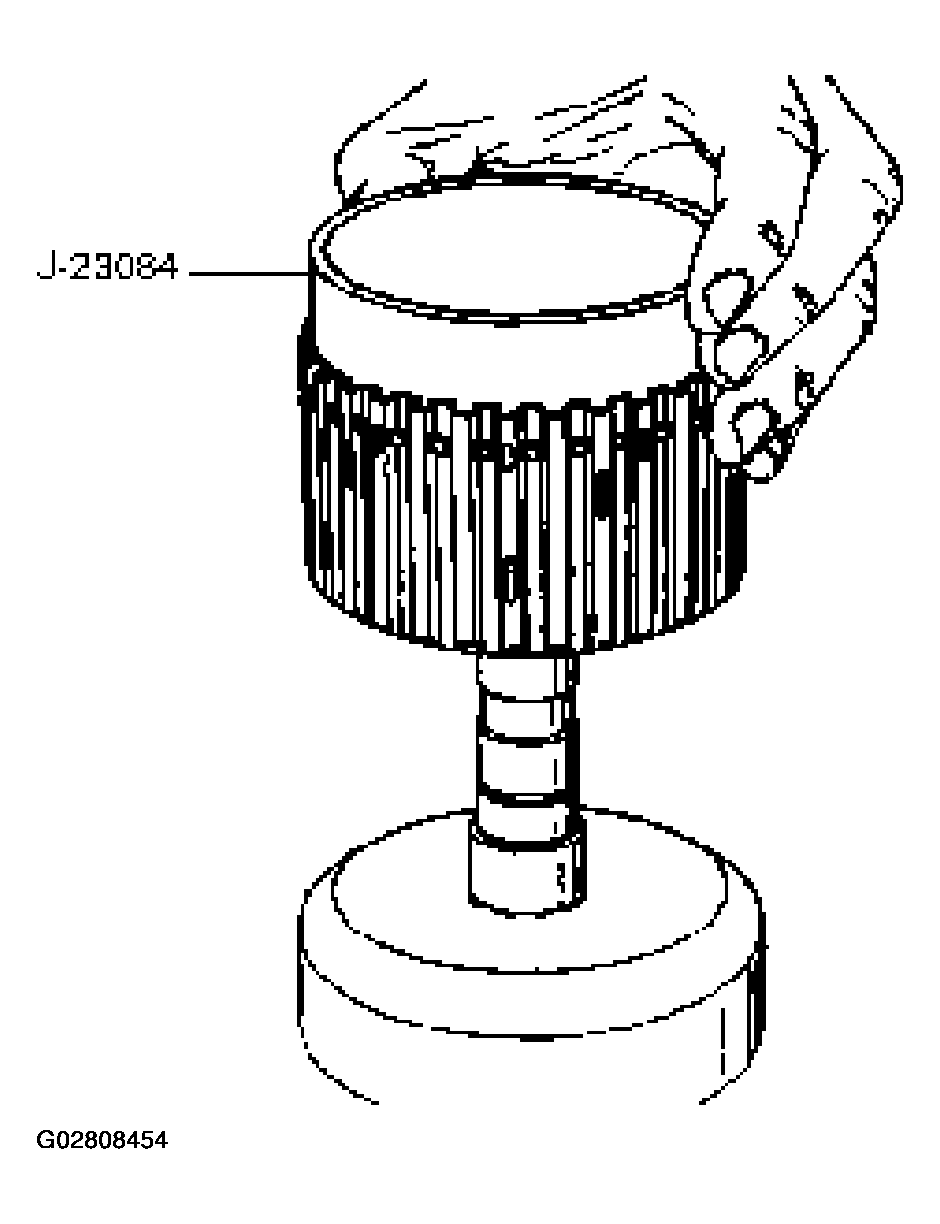

      Fig 1: Installing Piston Assembly Into Third Clutch Drum
      G02808454Courtesy of ISUZU MOTOR CO.
  2. Install twelve springs (3) and spring seat (2).
  3. Place retaining ring (1) onto spring seat.
    • Compress the piston springs, using the J-23075 piston spring compressor and J-23075-12 adapter.
      CAUTION: Do not over stress the springs and seat. Do not let the spring seat catch in the ring groove. This may cause damage to the spring seat.
    • Install spring seat retaining ring (1).
    • Remove the piston spring compressor and adapter.
