Transmission Data

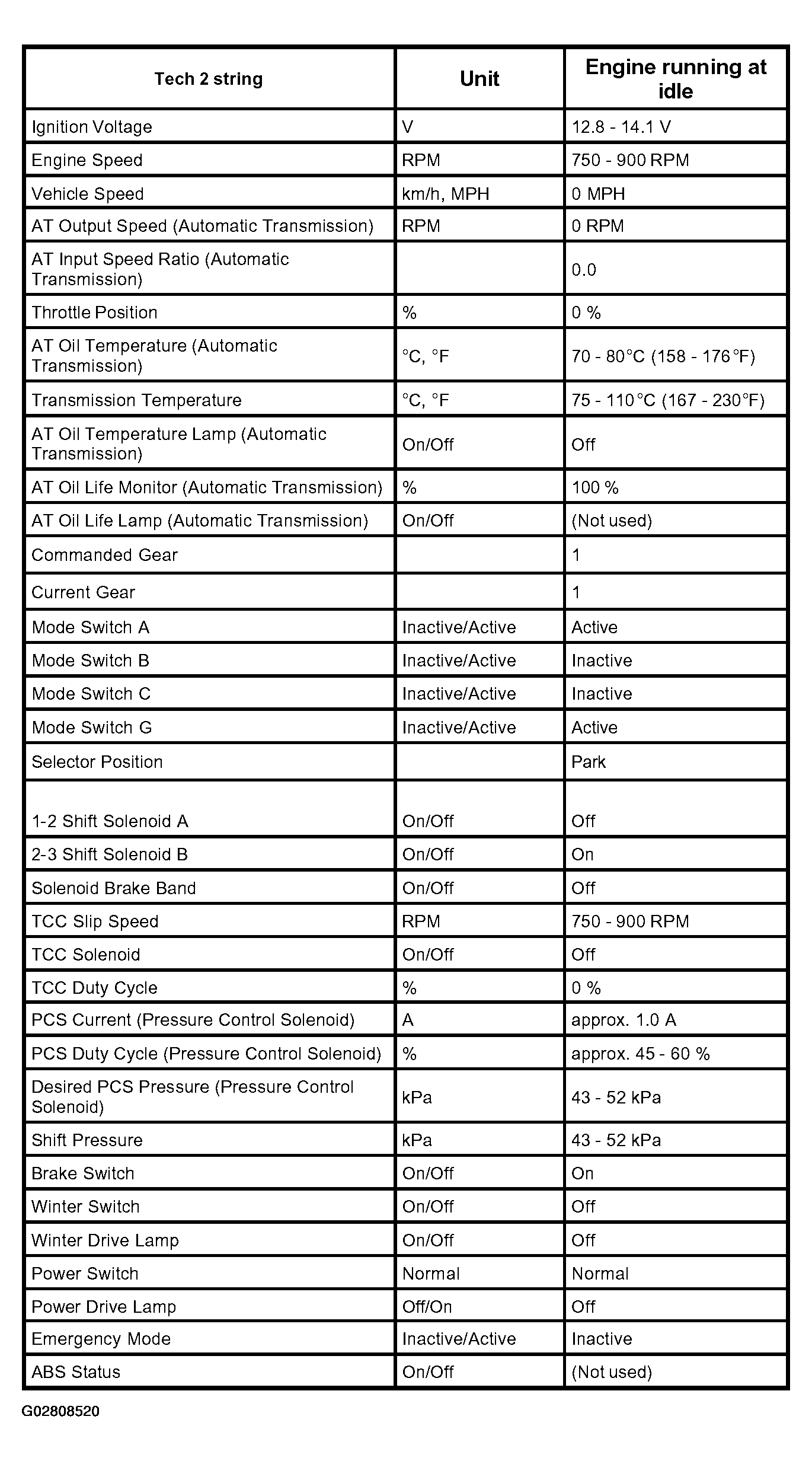

Fig 1: Transmission Data Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
