Harness Connector Faces

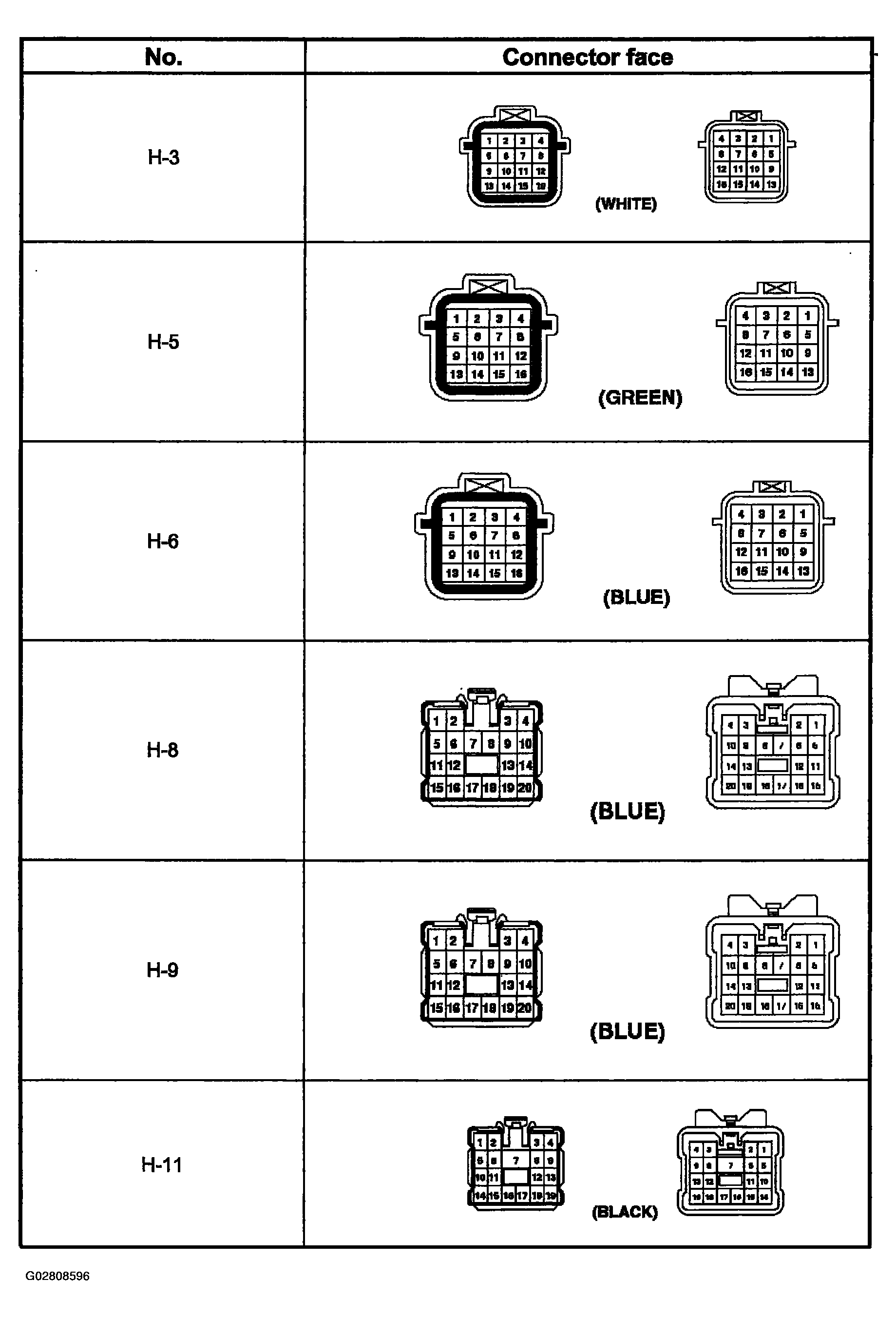

Fig 1: Identifying Harness Connector Faces And Terminals (1 Of 5)
Courtesy of ISUZU MOTOR CO.

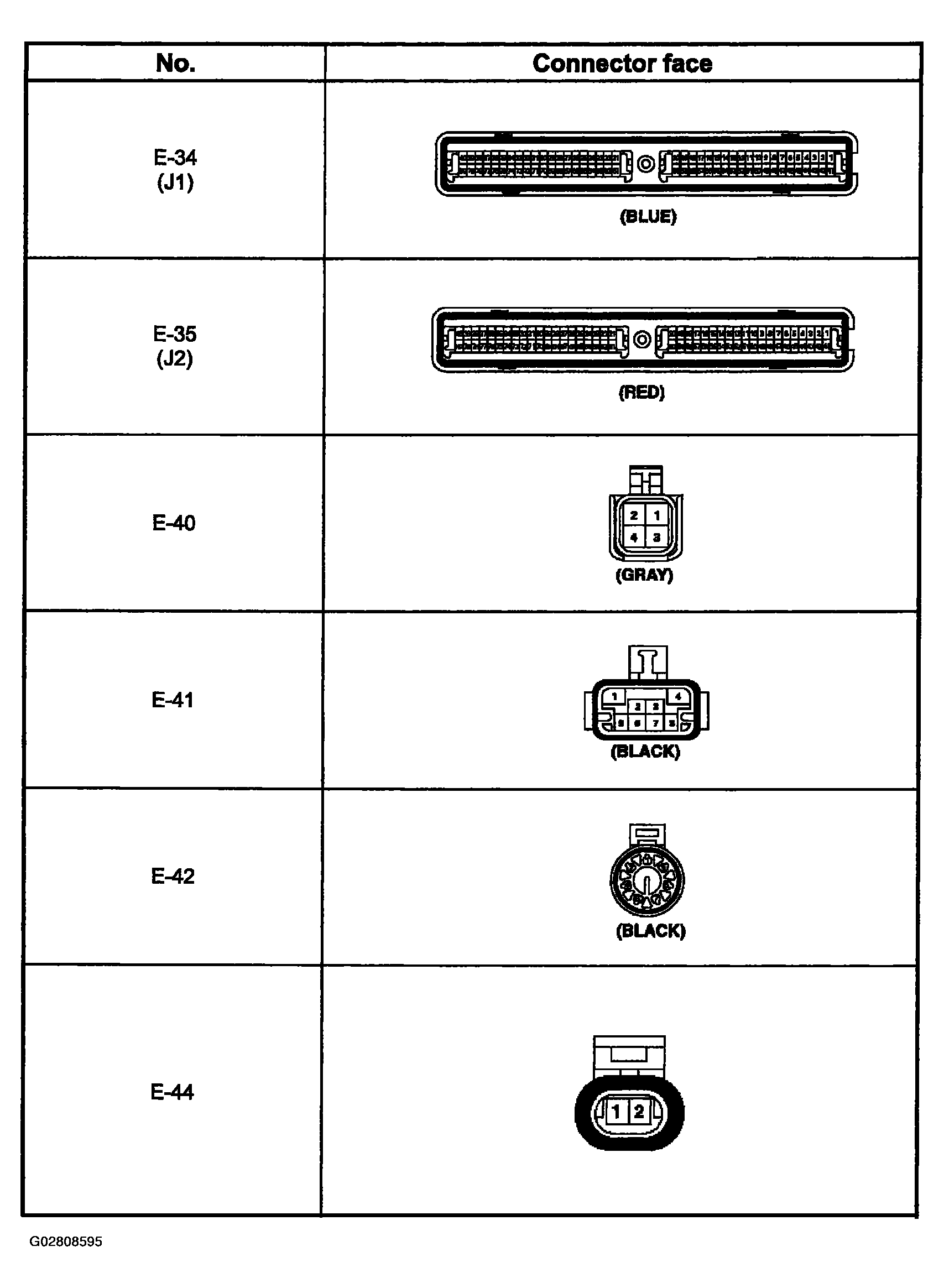

Fig 2: Identifying Harness Connector Faces And Terminals (2 Of 5)
Courtesy of ISUZU MOTOR CO.

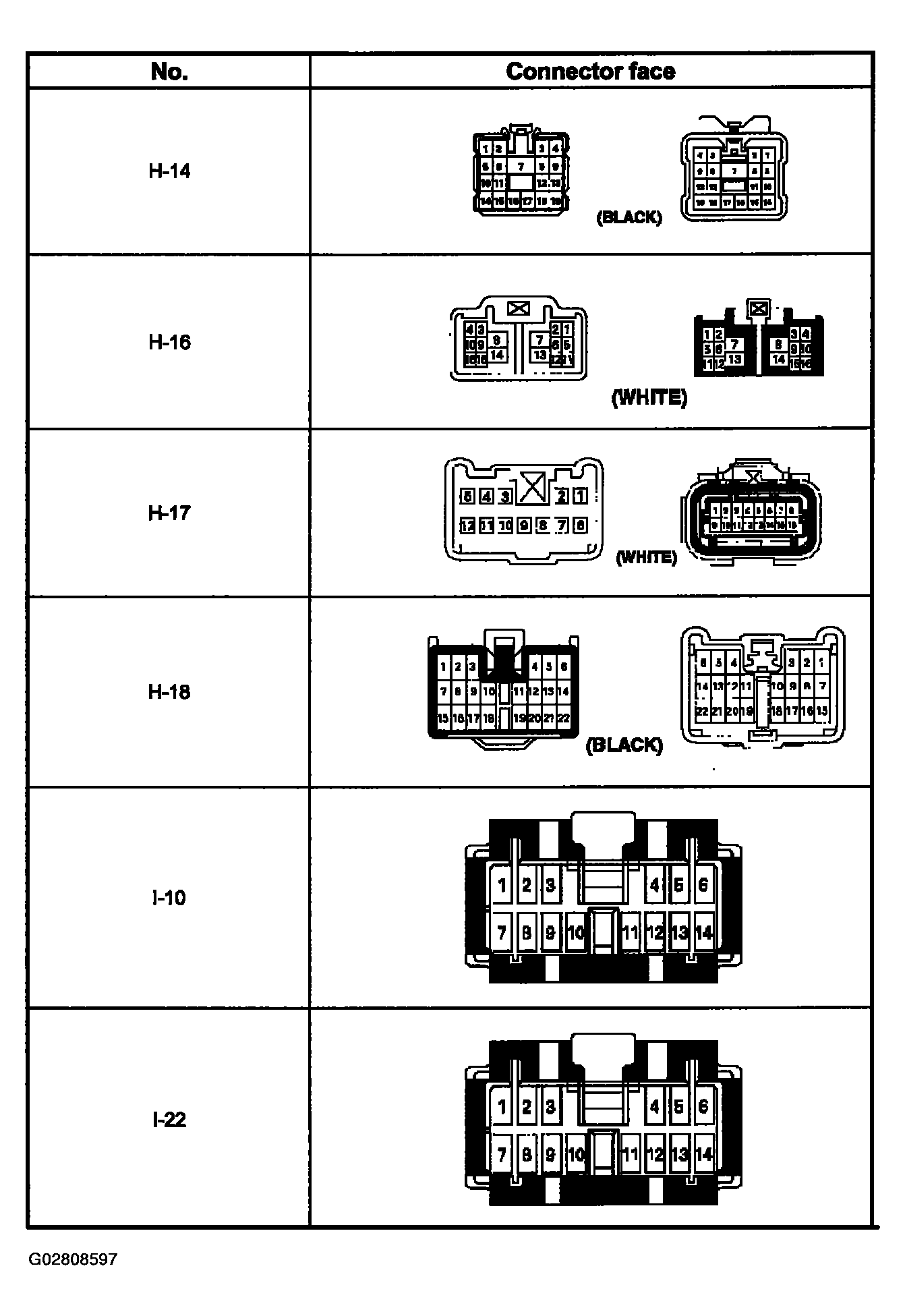

Fig 3: Identifying Harness Connector Faces And Terminals (3 Of 5)
Courtesy of ISUZU MOTOR CO.

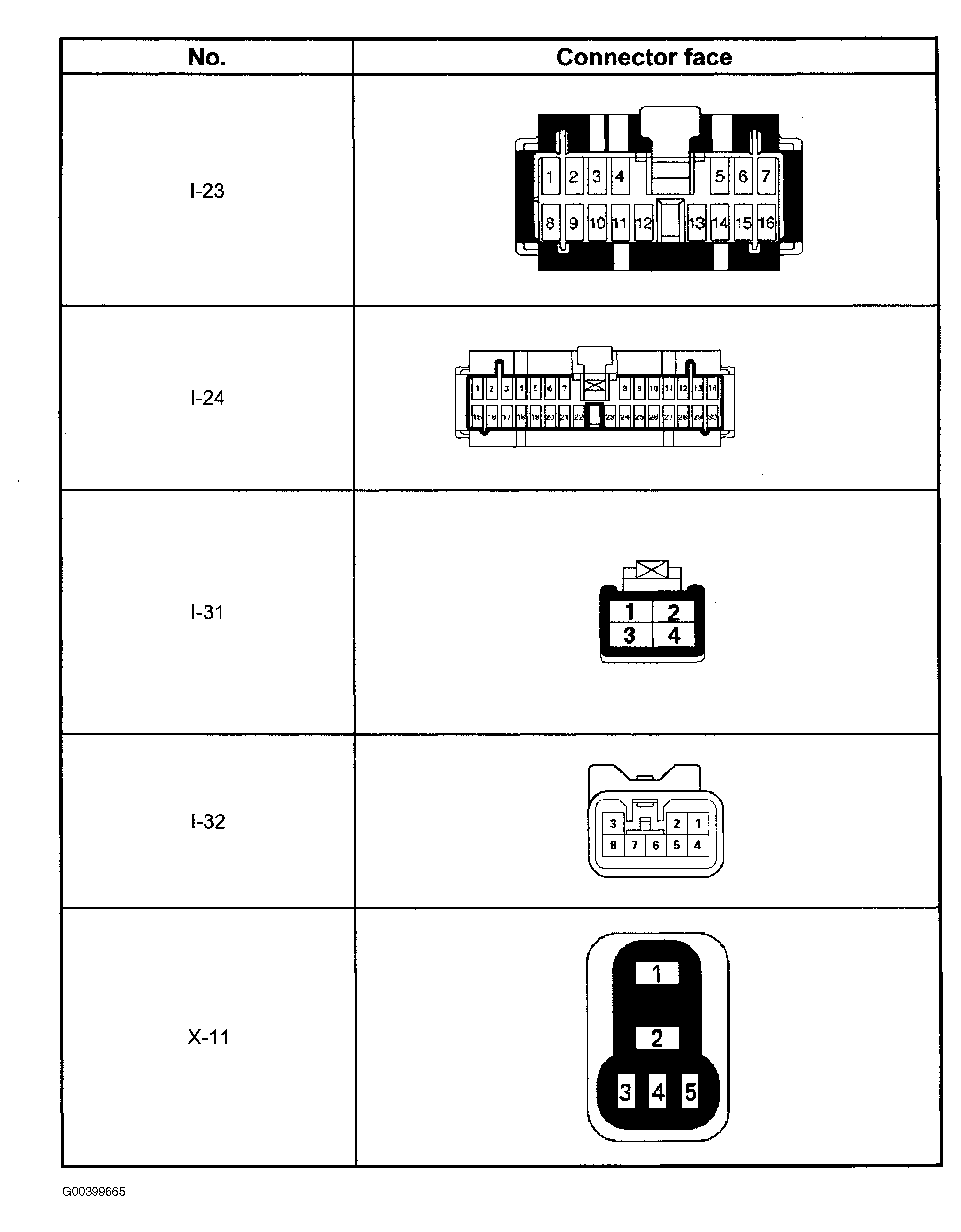

Fig 4: Identifying Harness Connector Faces And Terminals (4 Of 5)
Courtesy of ISUZU MOTOR CO.

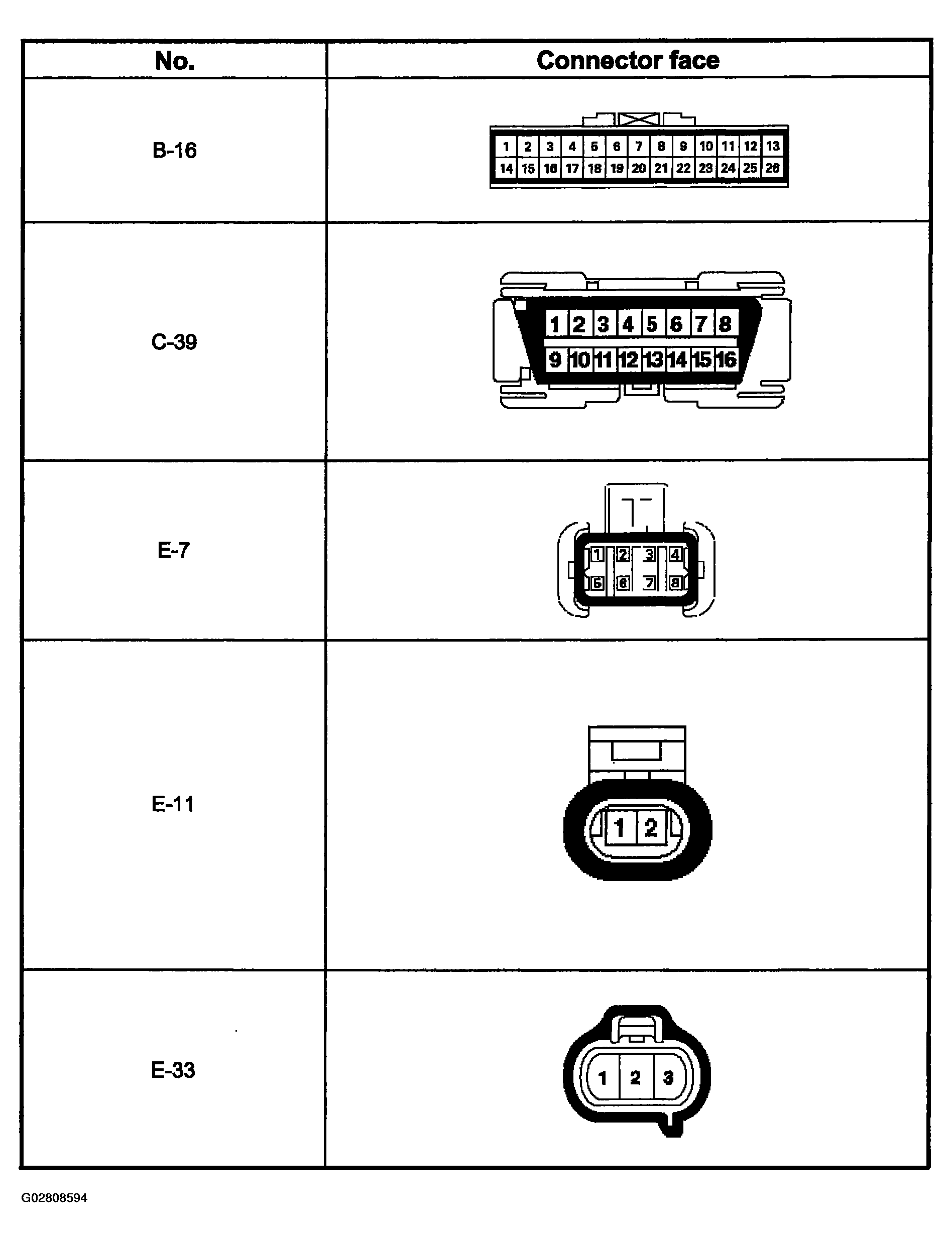

Fig 5: Identifying Harness Connector Faces And Terminals (5 Of 5)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
