Cruise Control Main Switch

Removal

1. Disconnect the battery ground cable.

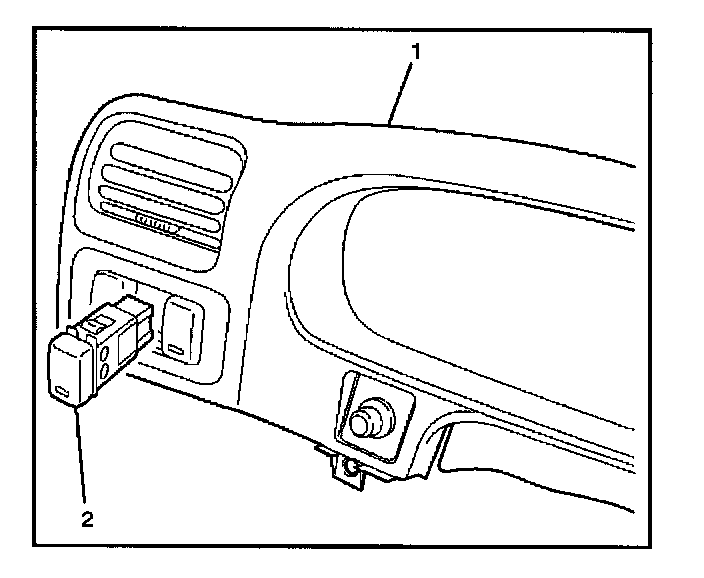

2. Remove the meter cluster assembly (1).
- Refer to the Instrument Panel Assembly in Body Structure section.

3. Remove the cruise control main switch (2).
- Disconnect the switch connector.
- To remove the switch, push the lock from the back side of the instrument panel cluster assembly.

Installation

To install, follow the removal steps in the reverse order.
