Harness Connector Views

Harness Connector Views Image 202:

B-9 - C-1:

C-2 - C-37:

C-39 - C-51:

C-52 - D-22:

D-27 - E-22:

E-33 - F-7:

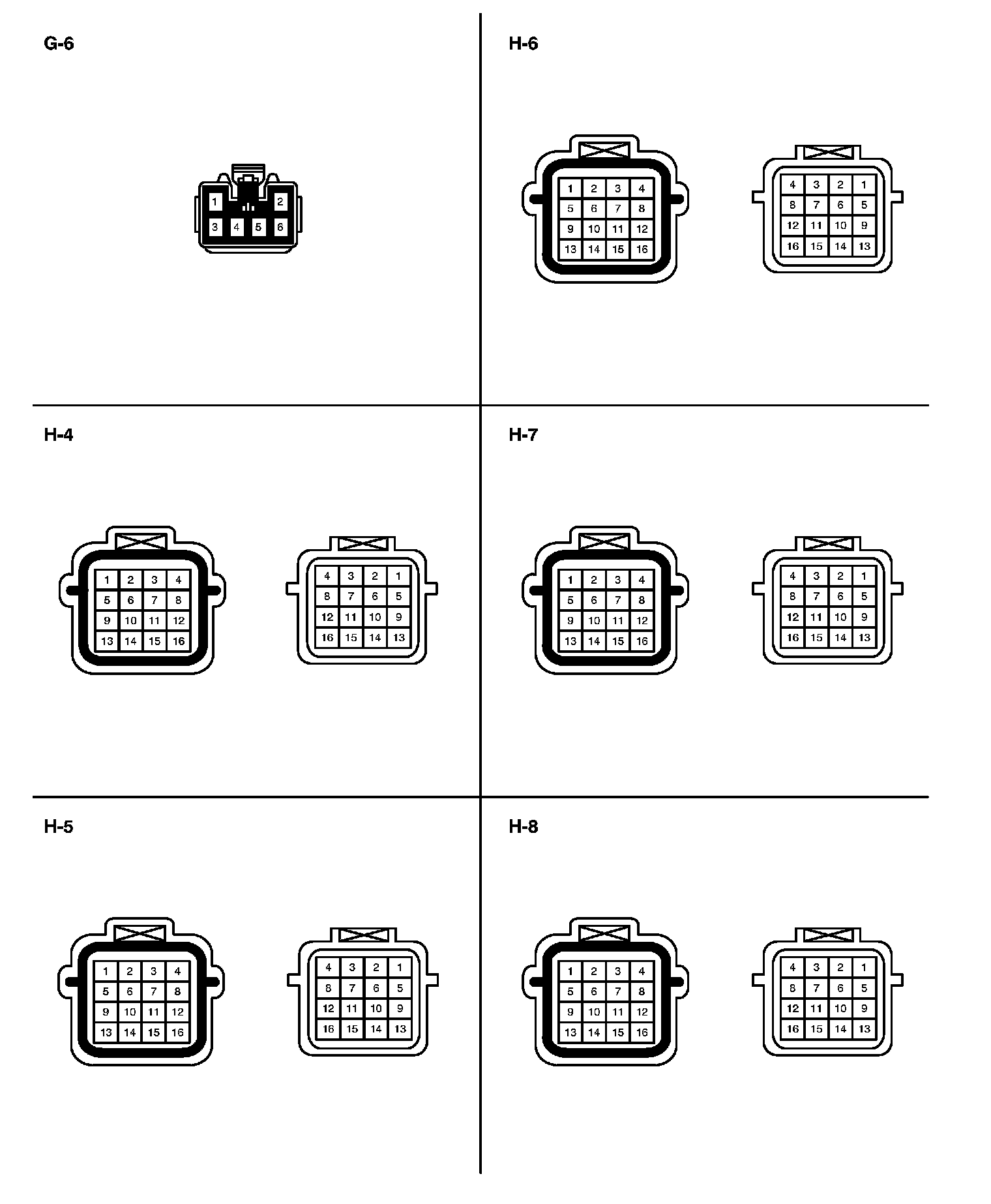

G-6 - H-8:

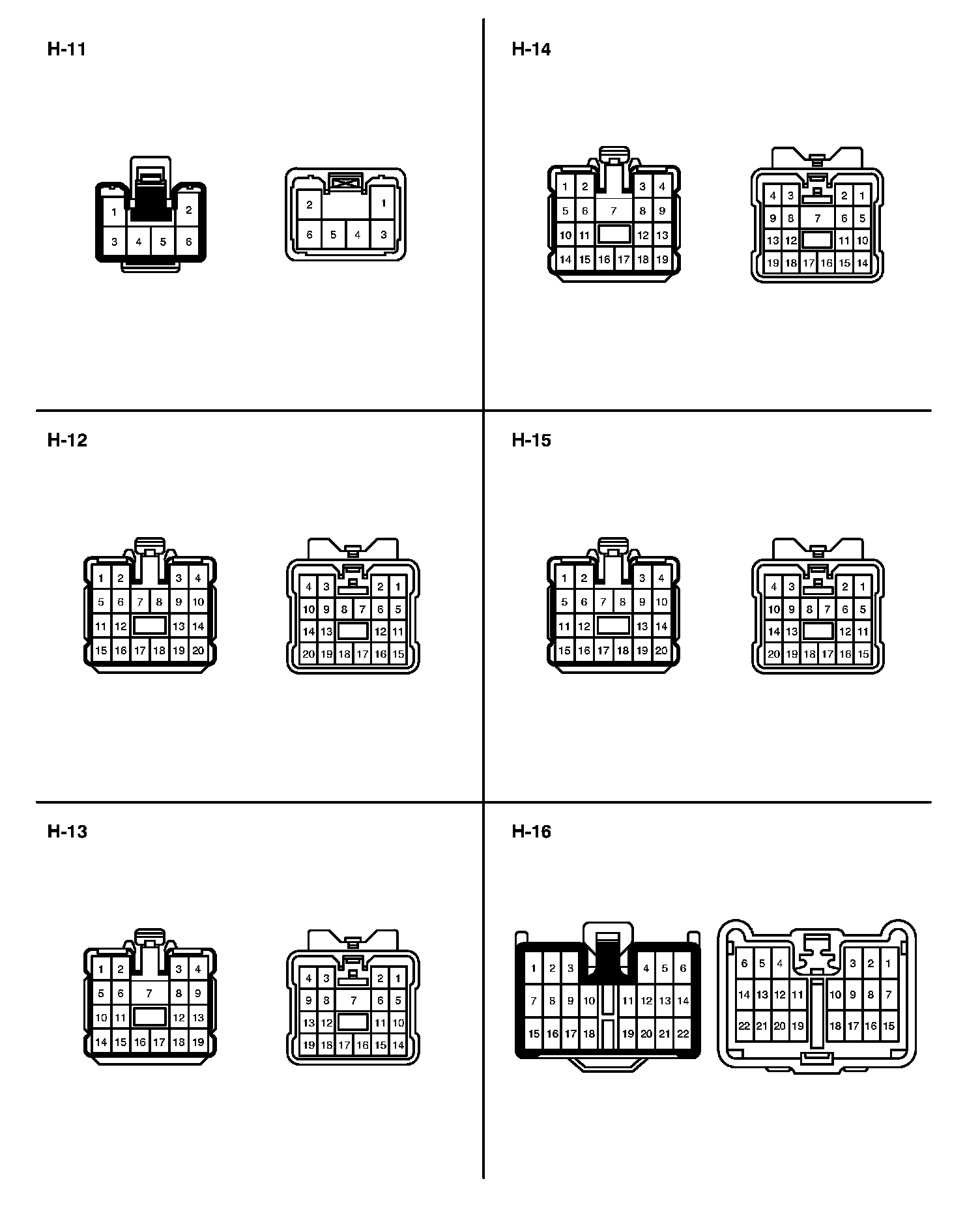

H-11 - H-16:

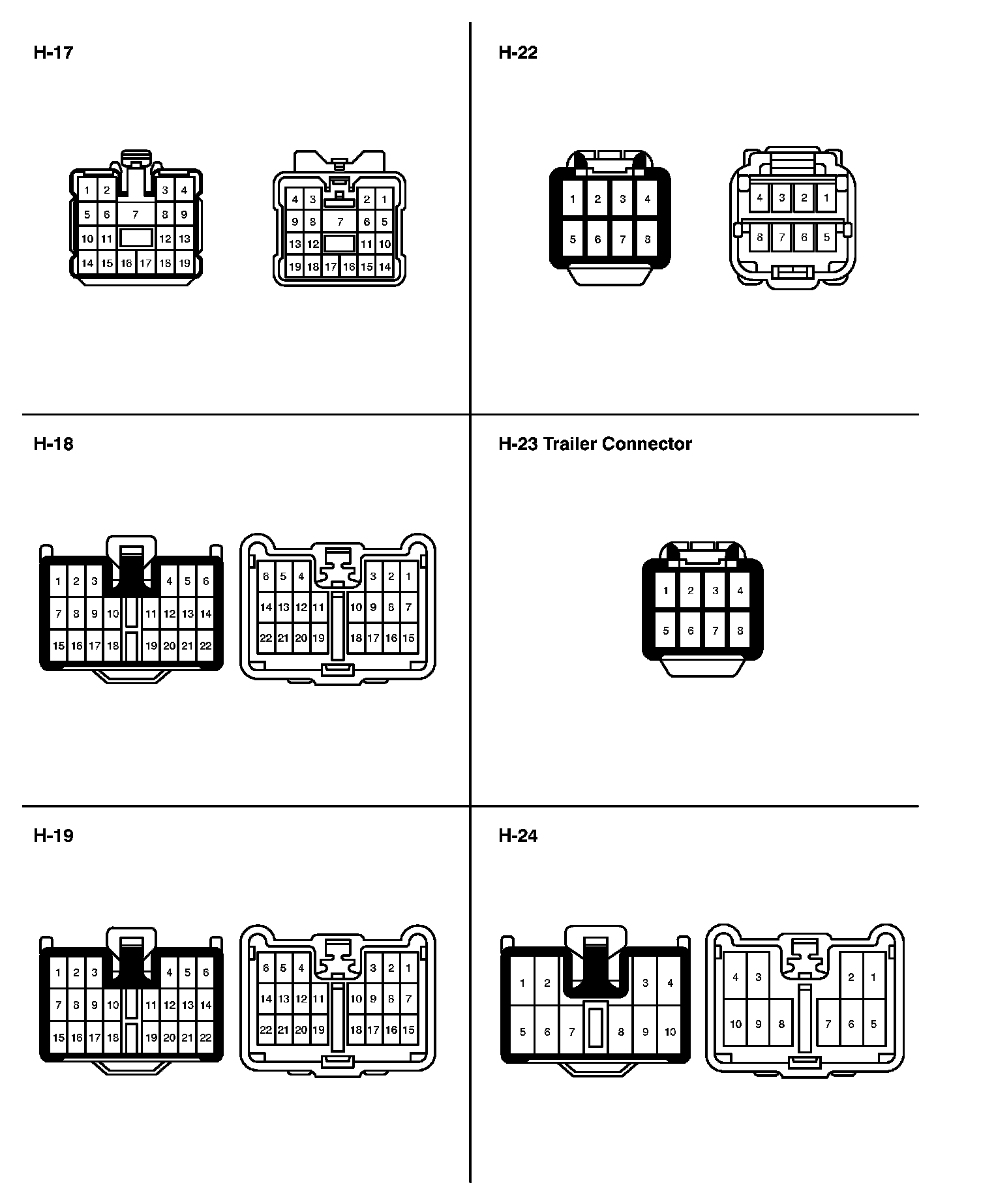

H-17 - H-24:

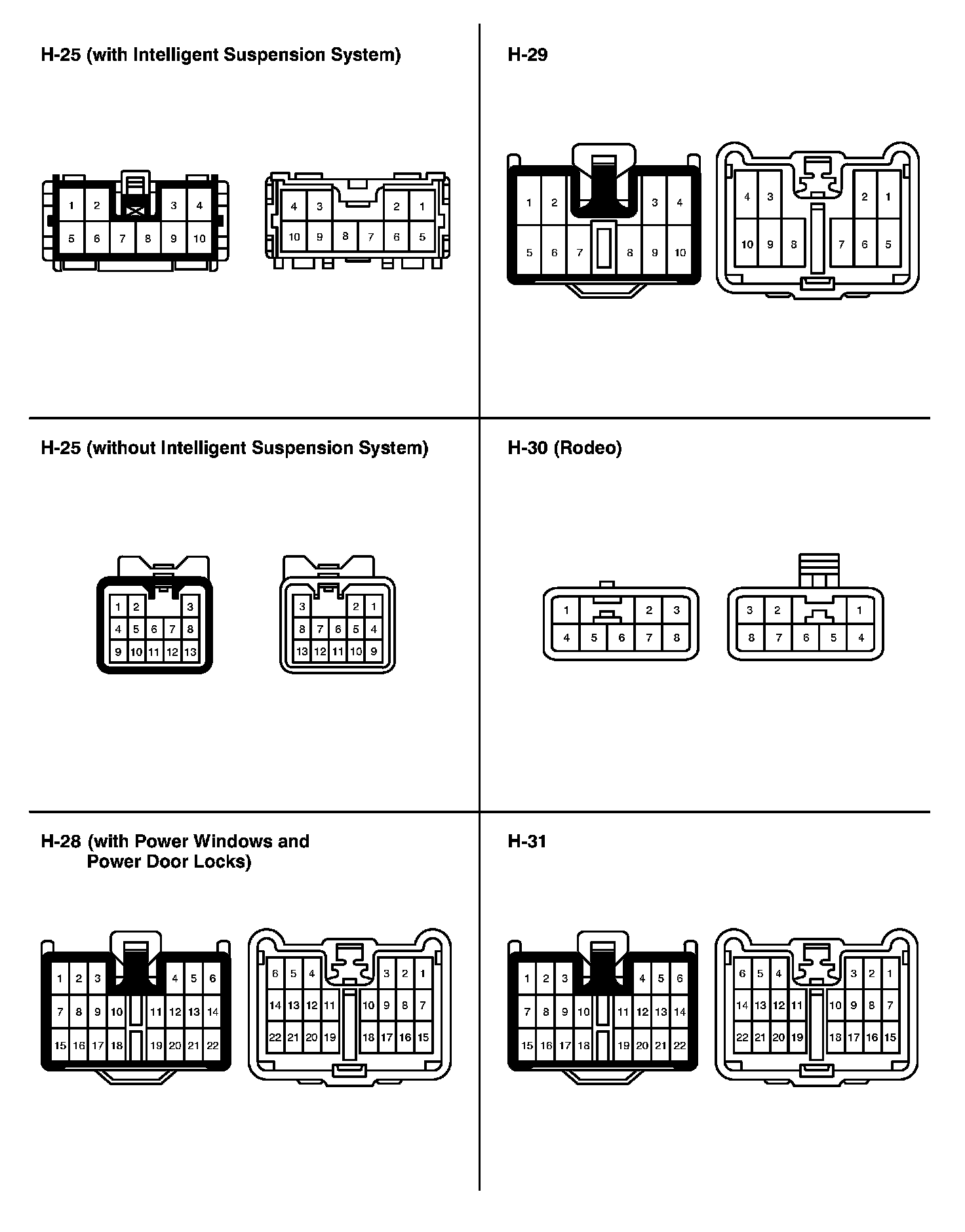

H-25(With Intelligent Suspension System) - H-31:

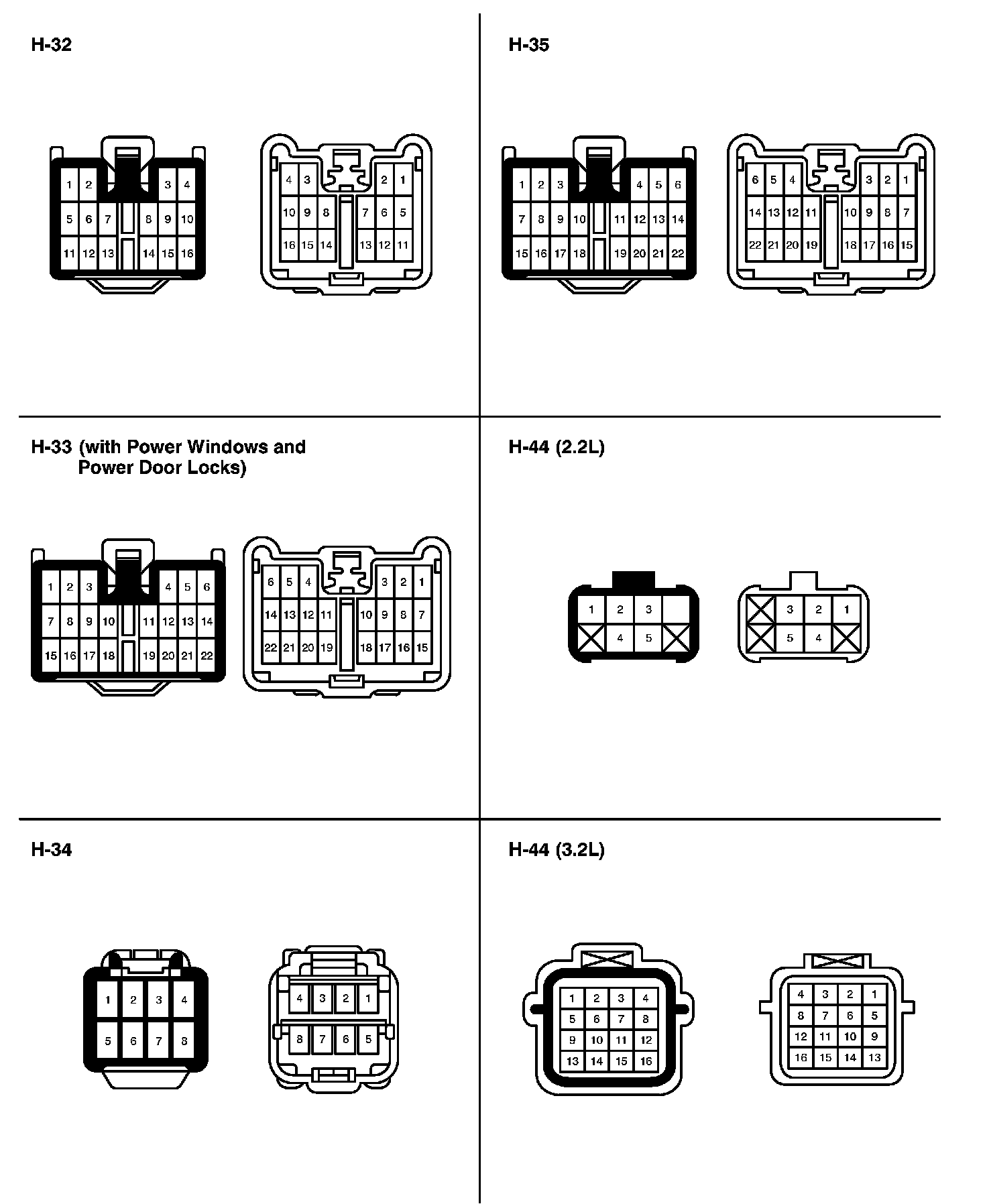

H-32 - H-44:

I-1 - I-11:

I-12 - I-26:

I-30 - I-41:

I-42 - M-16:

Amplifier A - B:
