Power and Ground Distribution: Diagrams

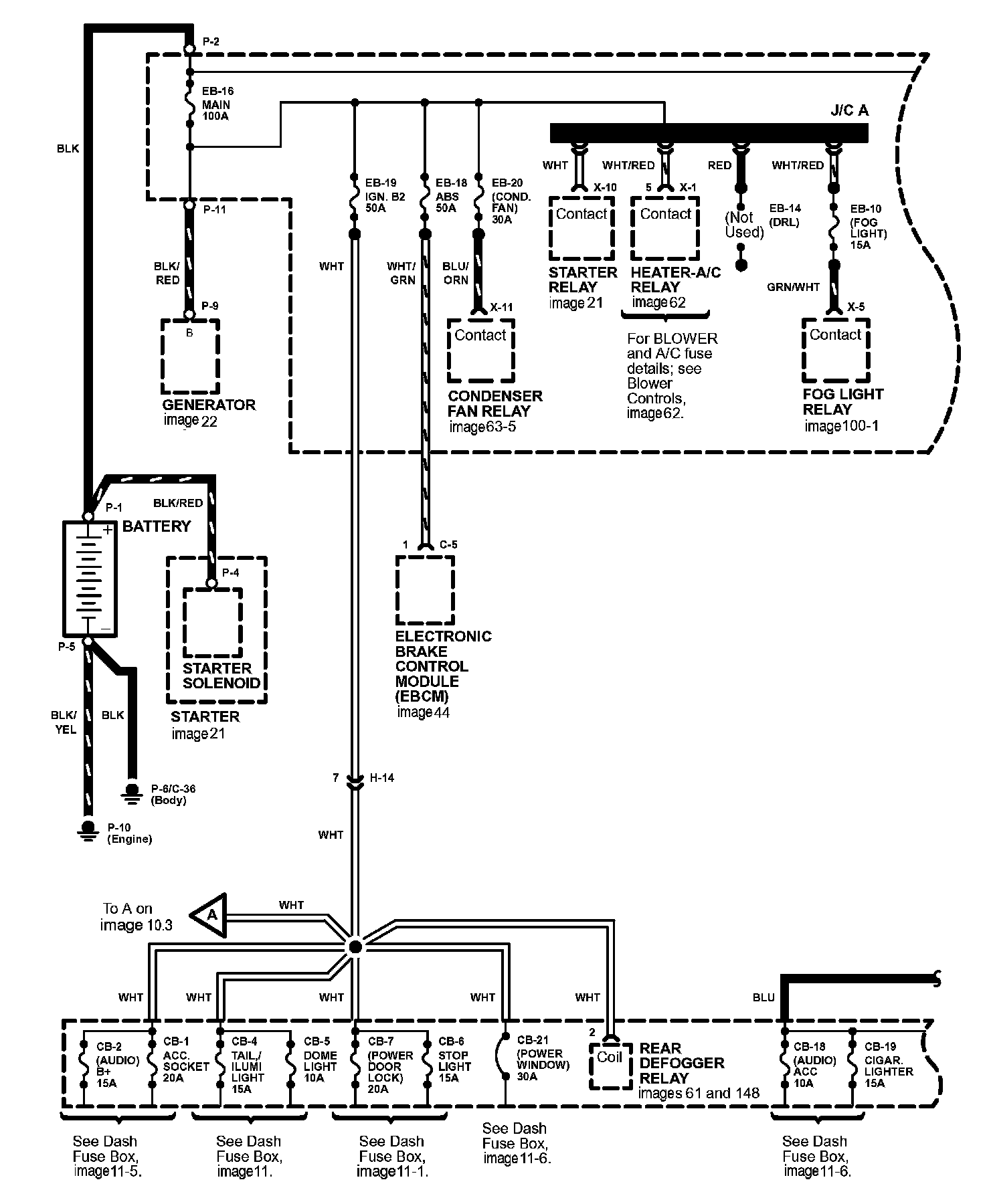

Power Distribution Image 10-2:

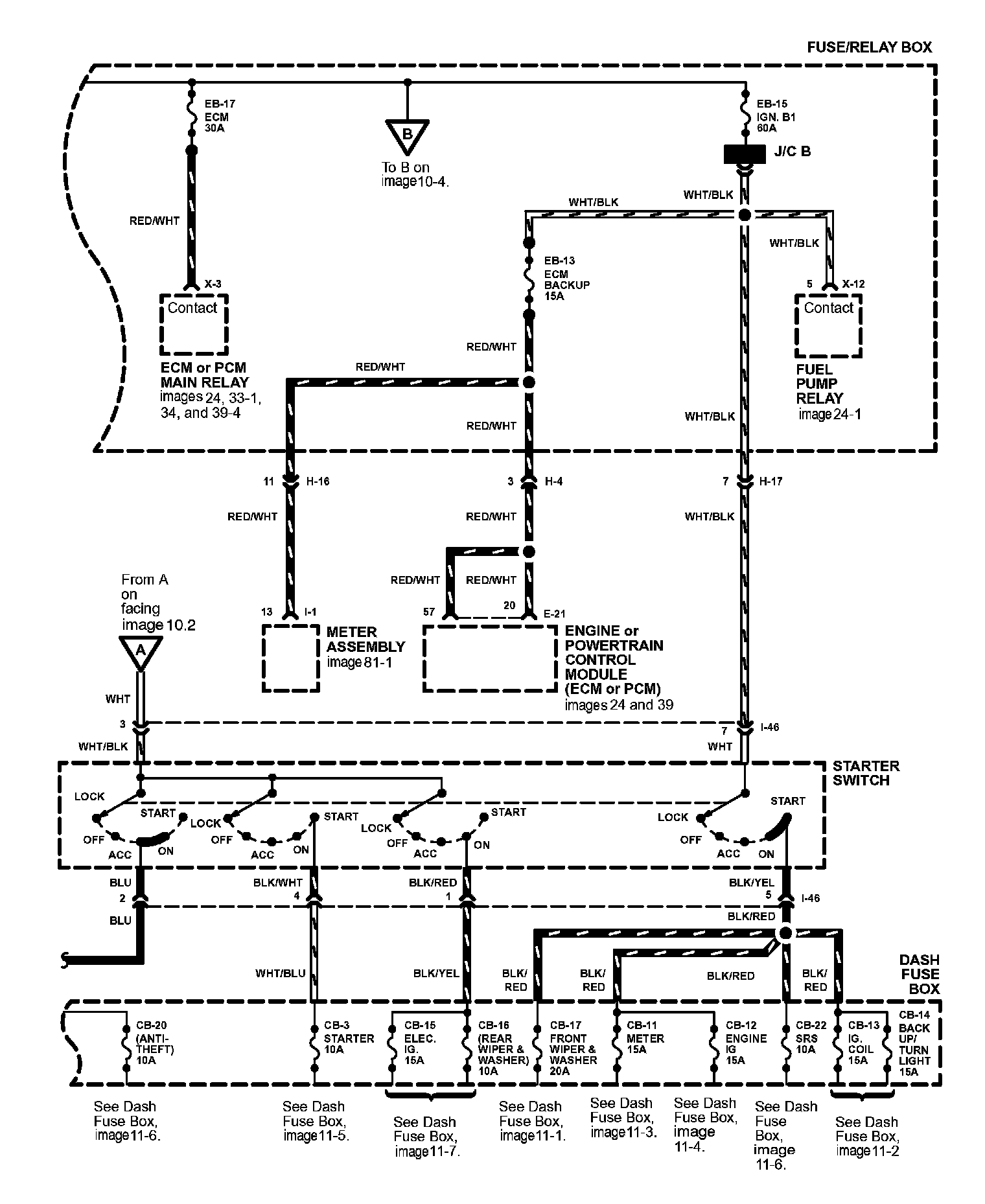

Power Distribution Image 10-3:

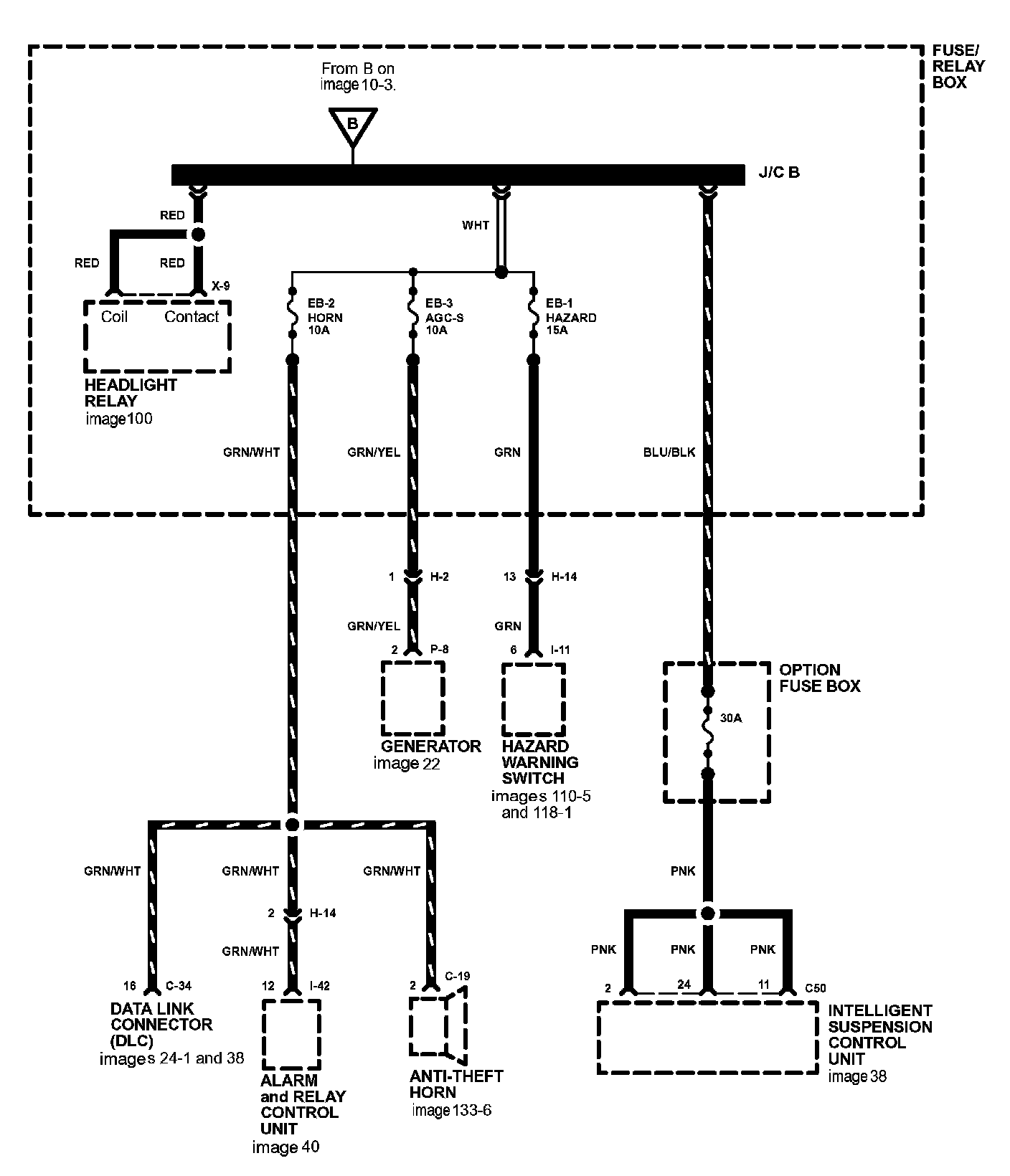

Power Distribution Image 10-4:
