ECM/PCM Circuit Diagrams

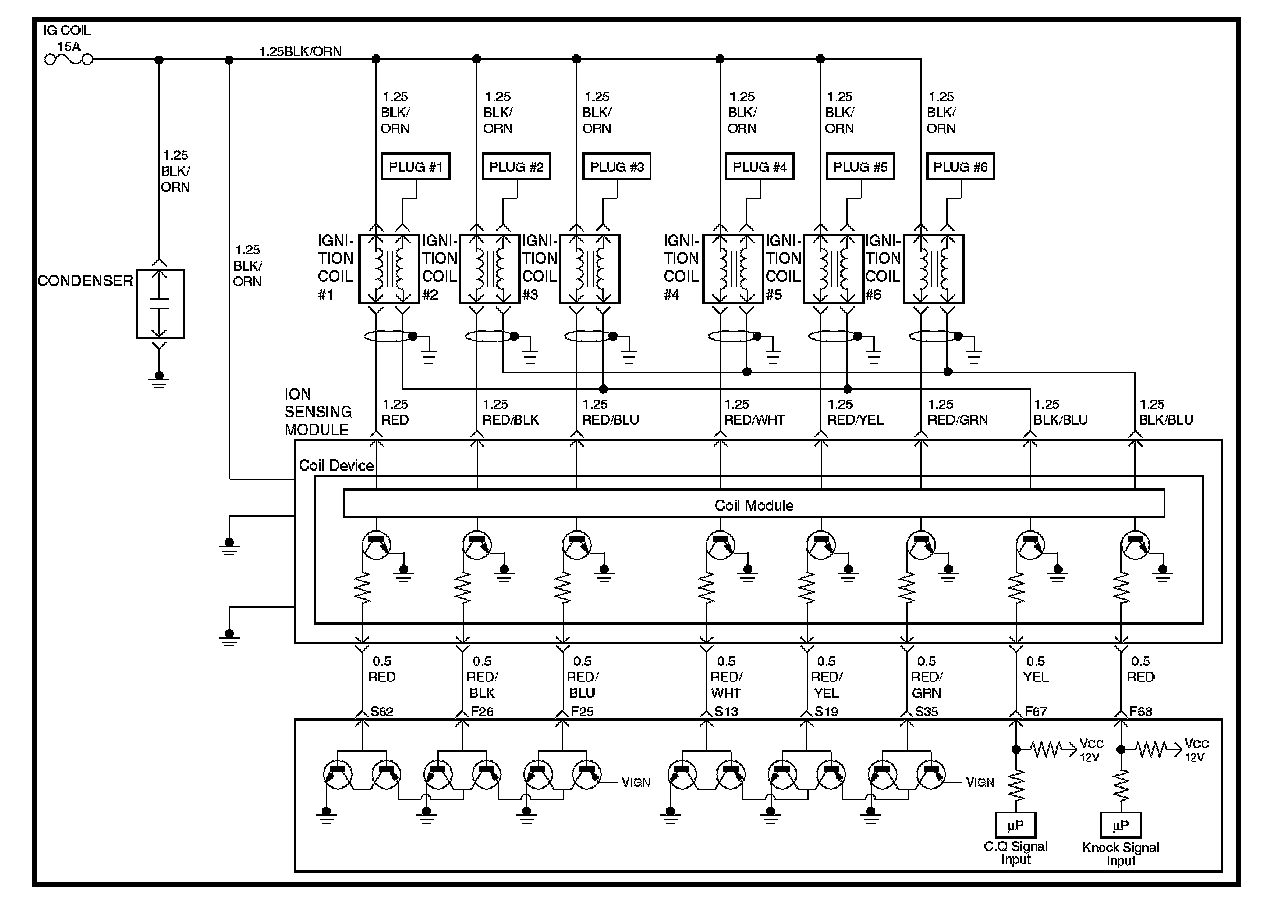

PCM Wiring Diagram (1 Of 7):

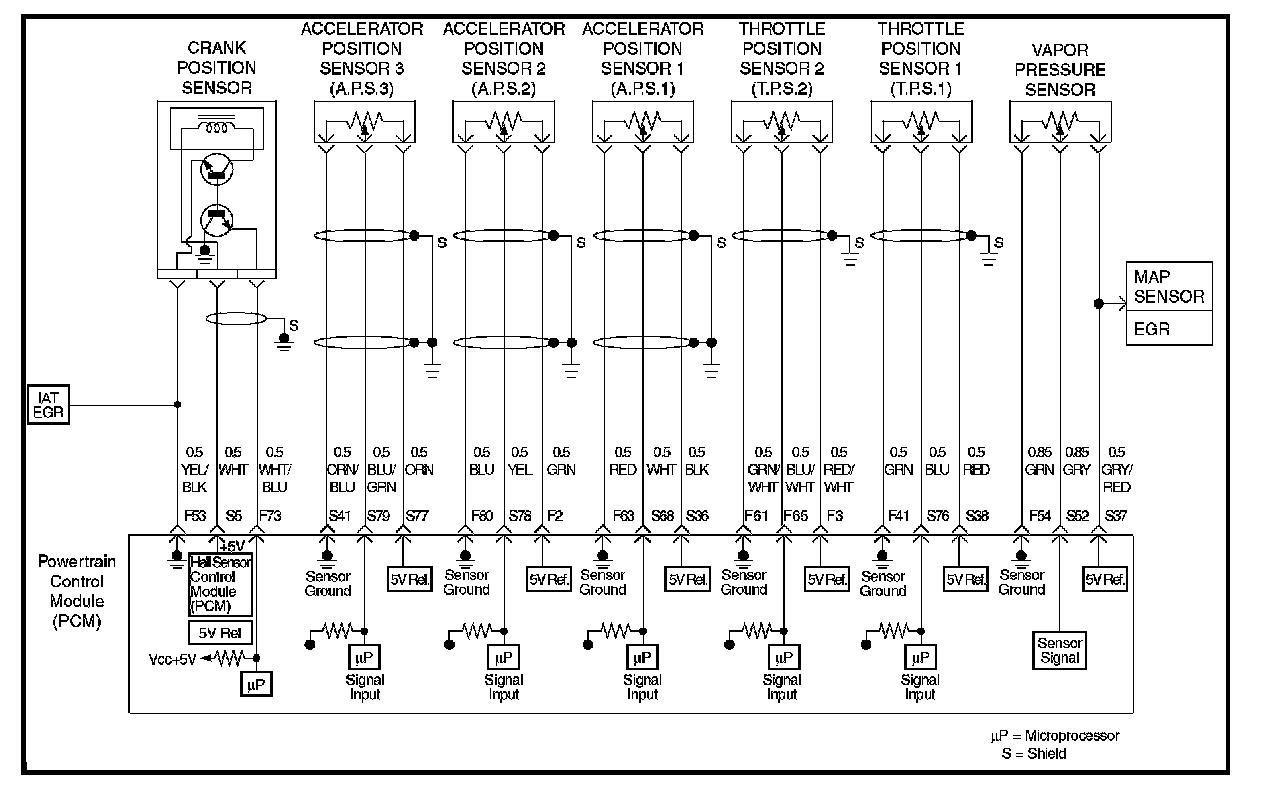

PCM Wiring Diagram (2 Of 7):

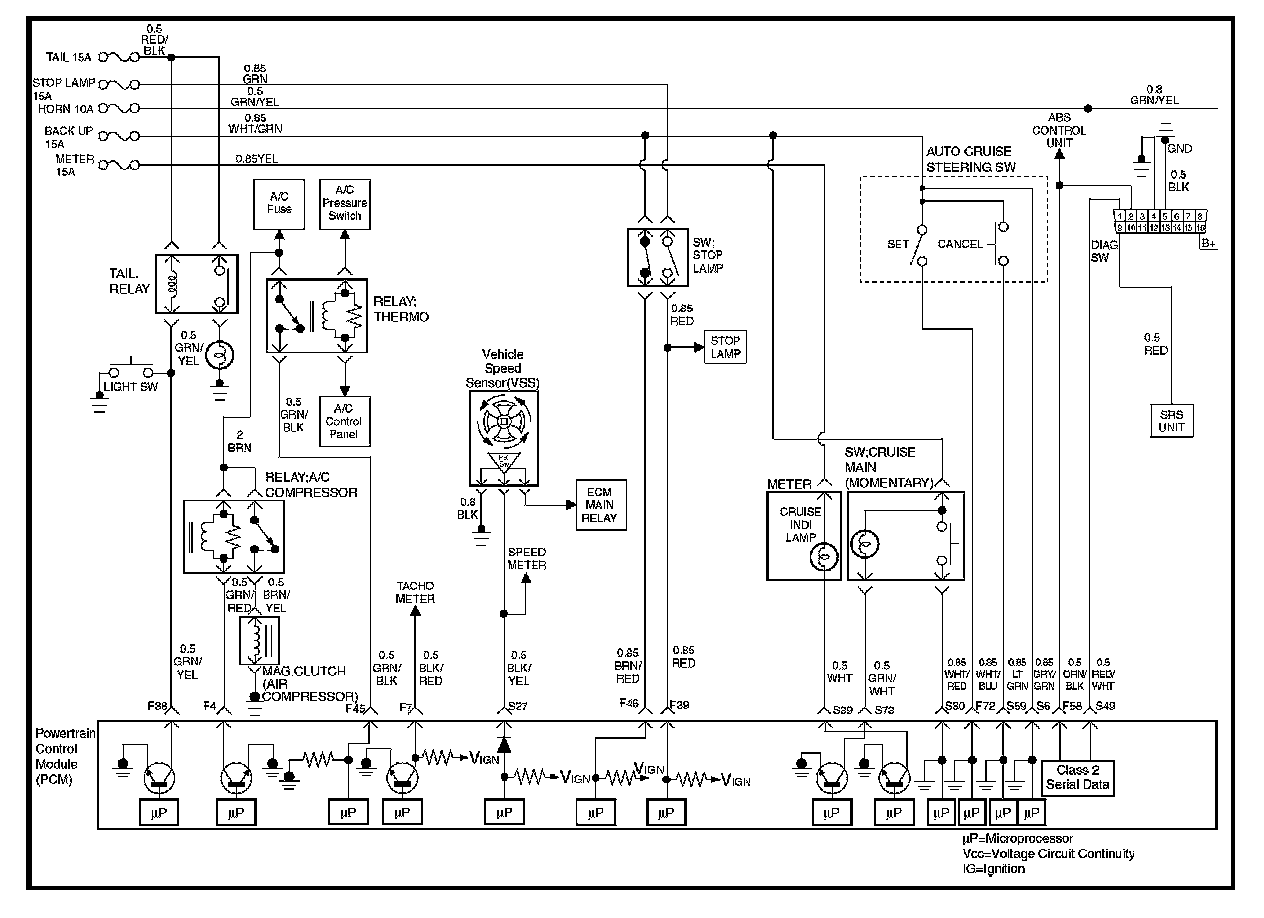

PCM Wiring Diagram (3 Of 7):

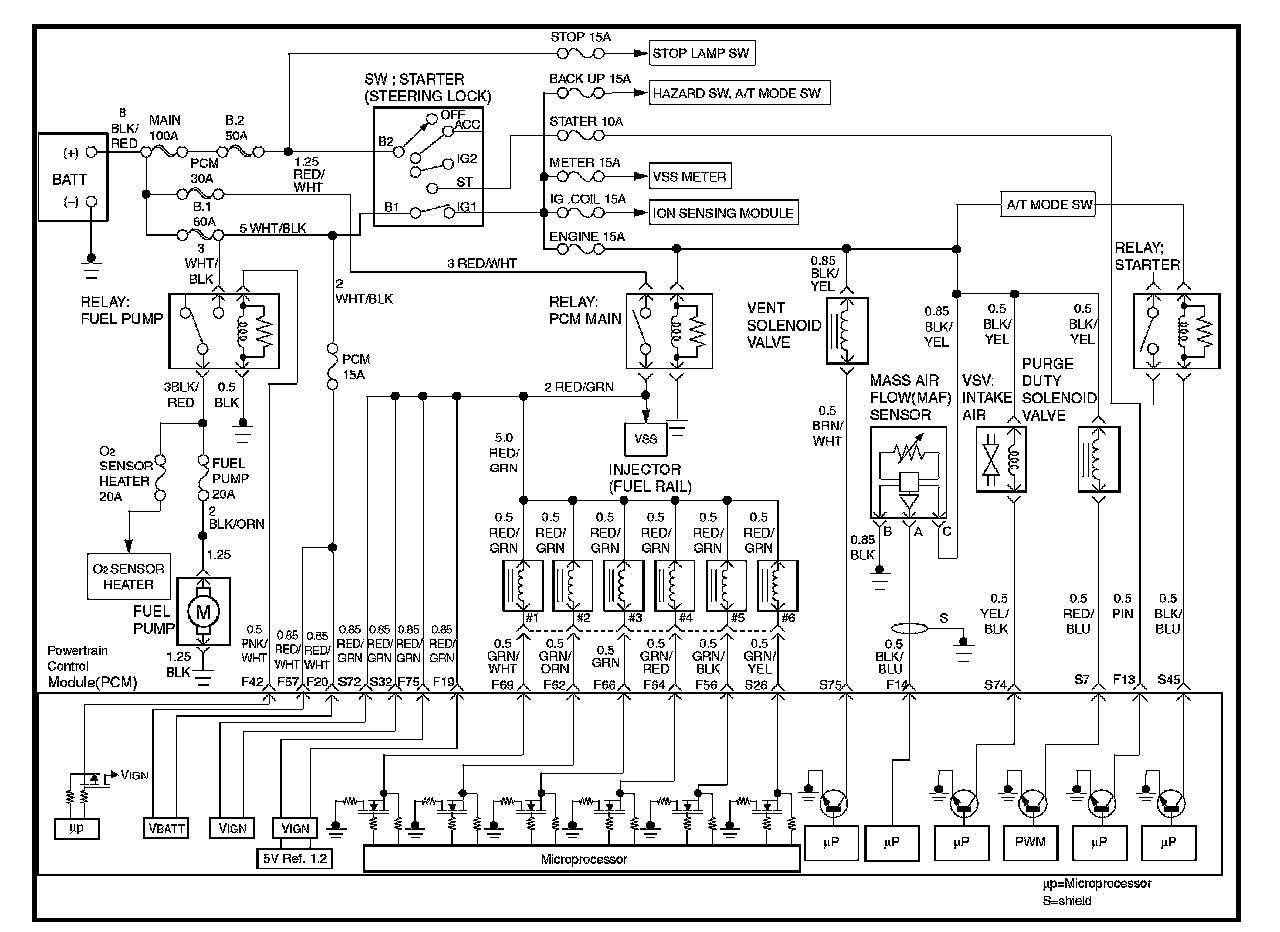

PCM Wiring Diagram (4 Of 7):

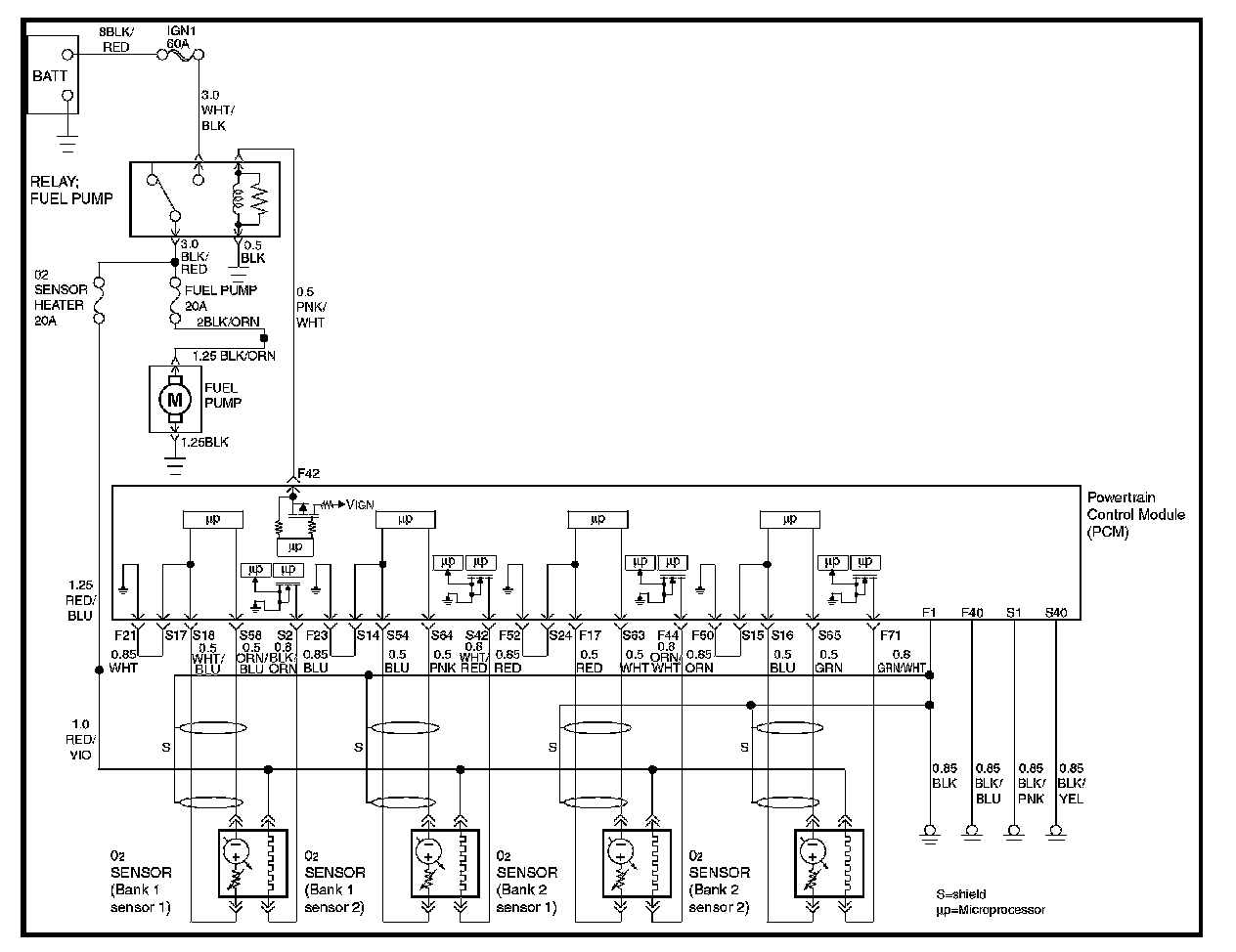

PCM Wiring Diagram (5 Of 7):
PCM Wiring Diagram (6 Of 7):
PCM Wiring Diagram (7 Of 7):
