System Specifications

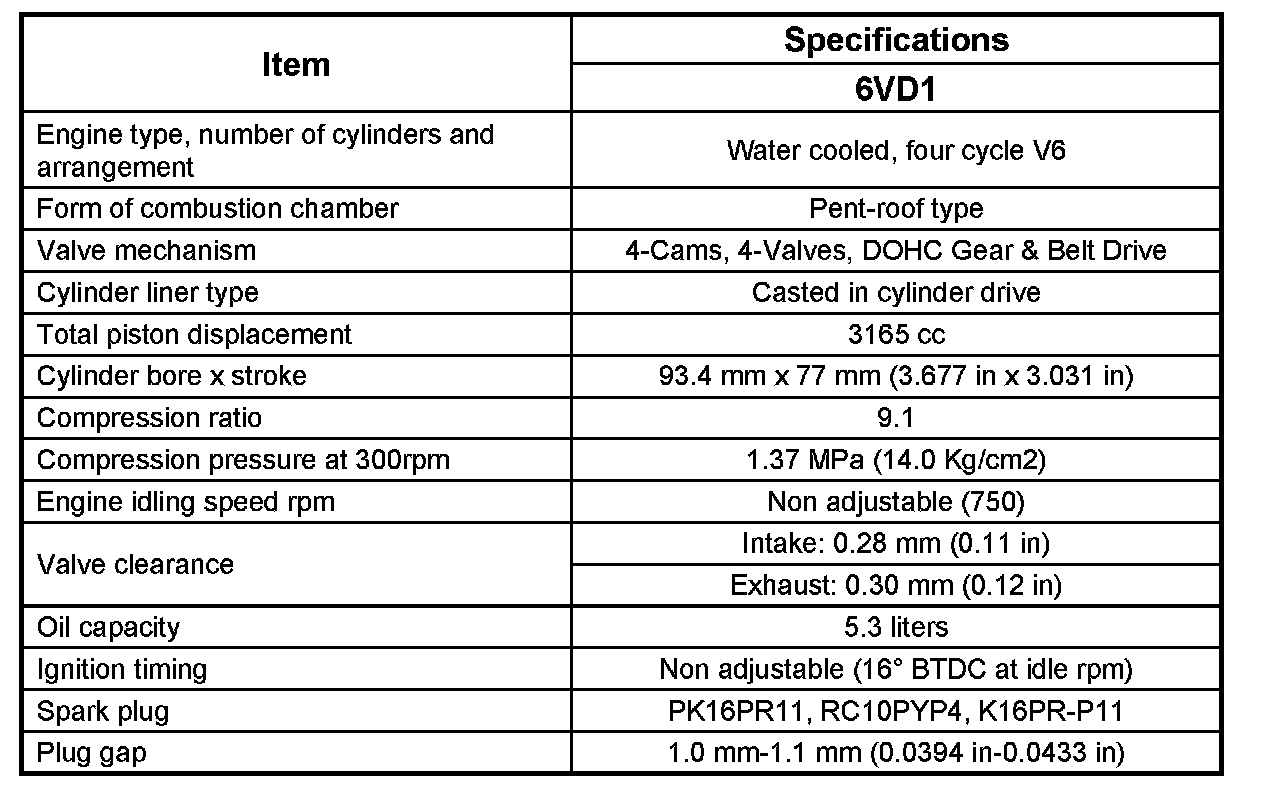

General Specification

Torque Specifications

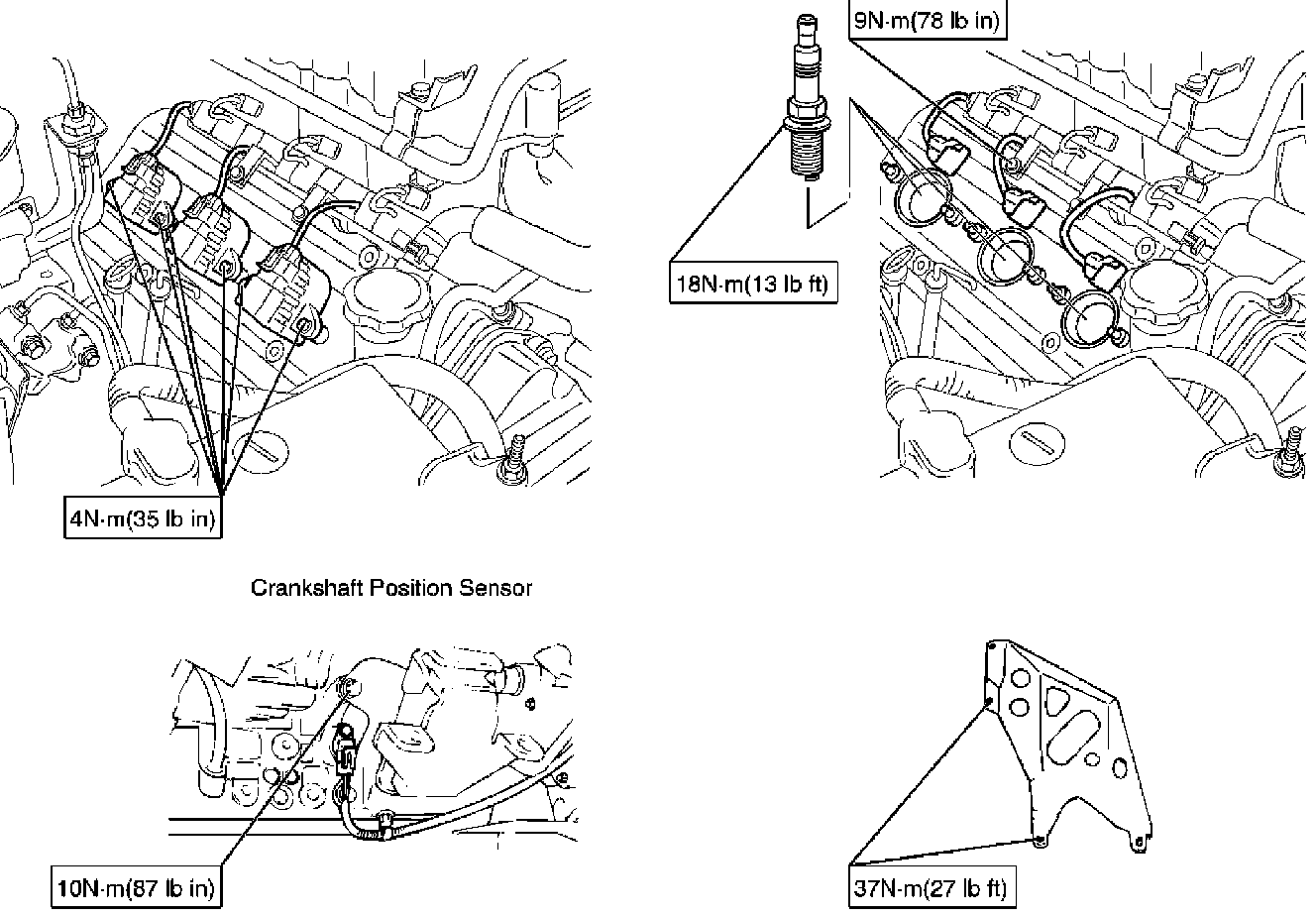

Ignition Coil, Spark Plug, Crankshaft Angle Sensor and Under Cover

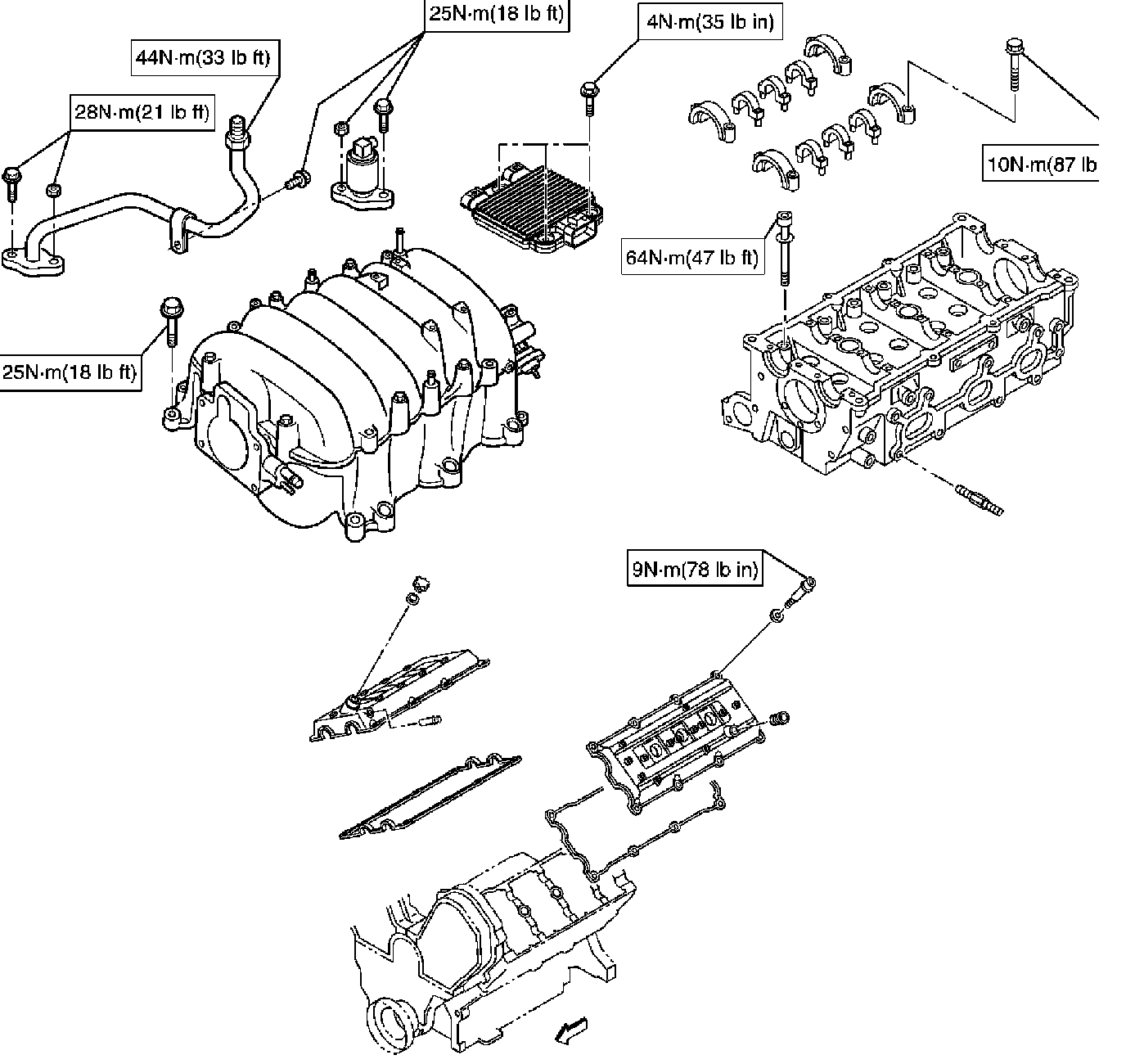

Cylinder Head Cover, Cylinder Head, Camshaft Bearing Cap, Common Chamber, EGR Valve and EGR Pipe

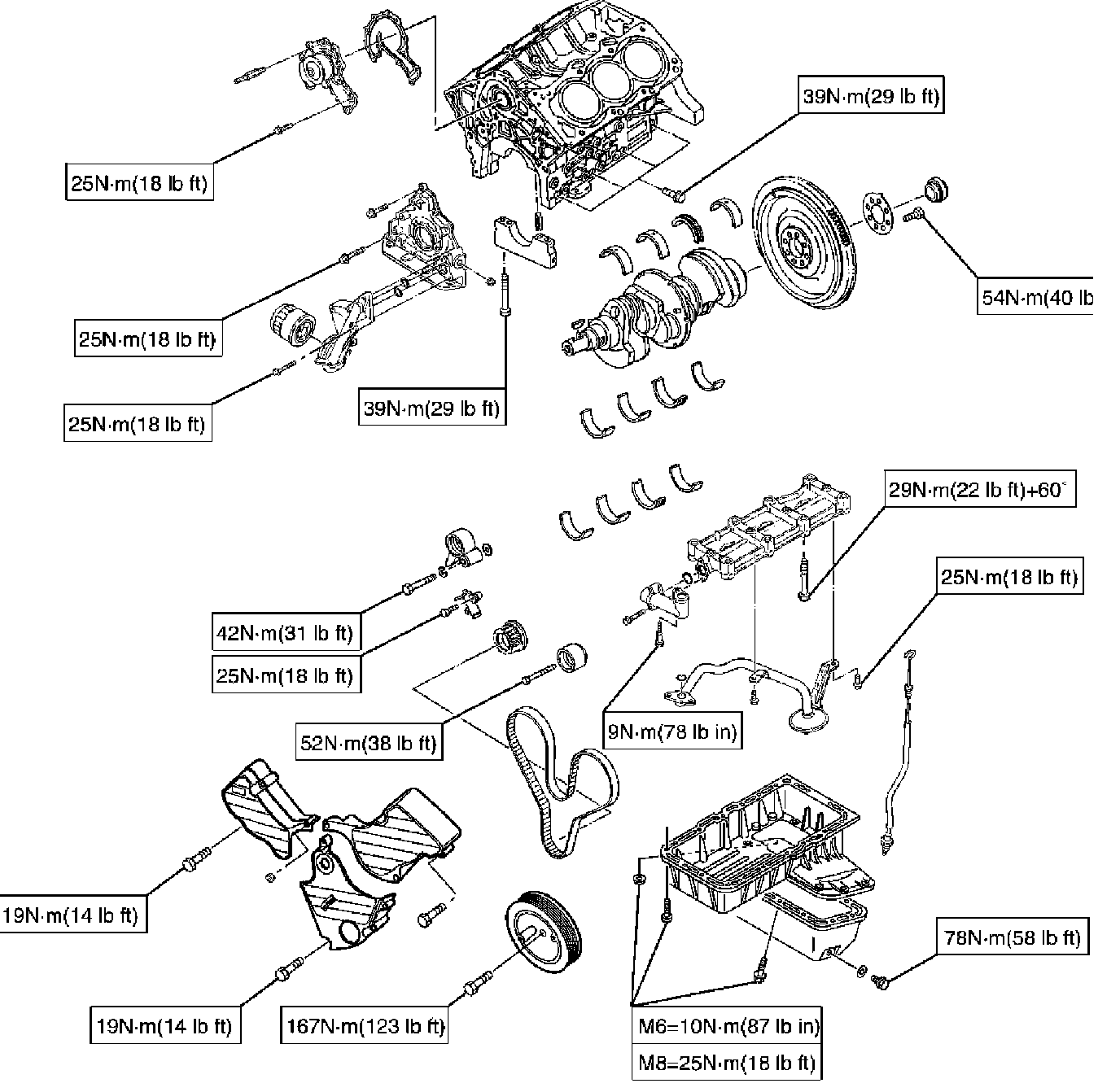

Crankshaft Main Bearing, Flywheel, Crankcase, Oil Pan, Timing Belt Tensioner, Timing Pulley, Timing Belt Cover, Oil Pump, Oil Gallery, Oil Strainer and Water Pump

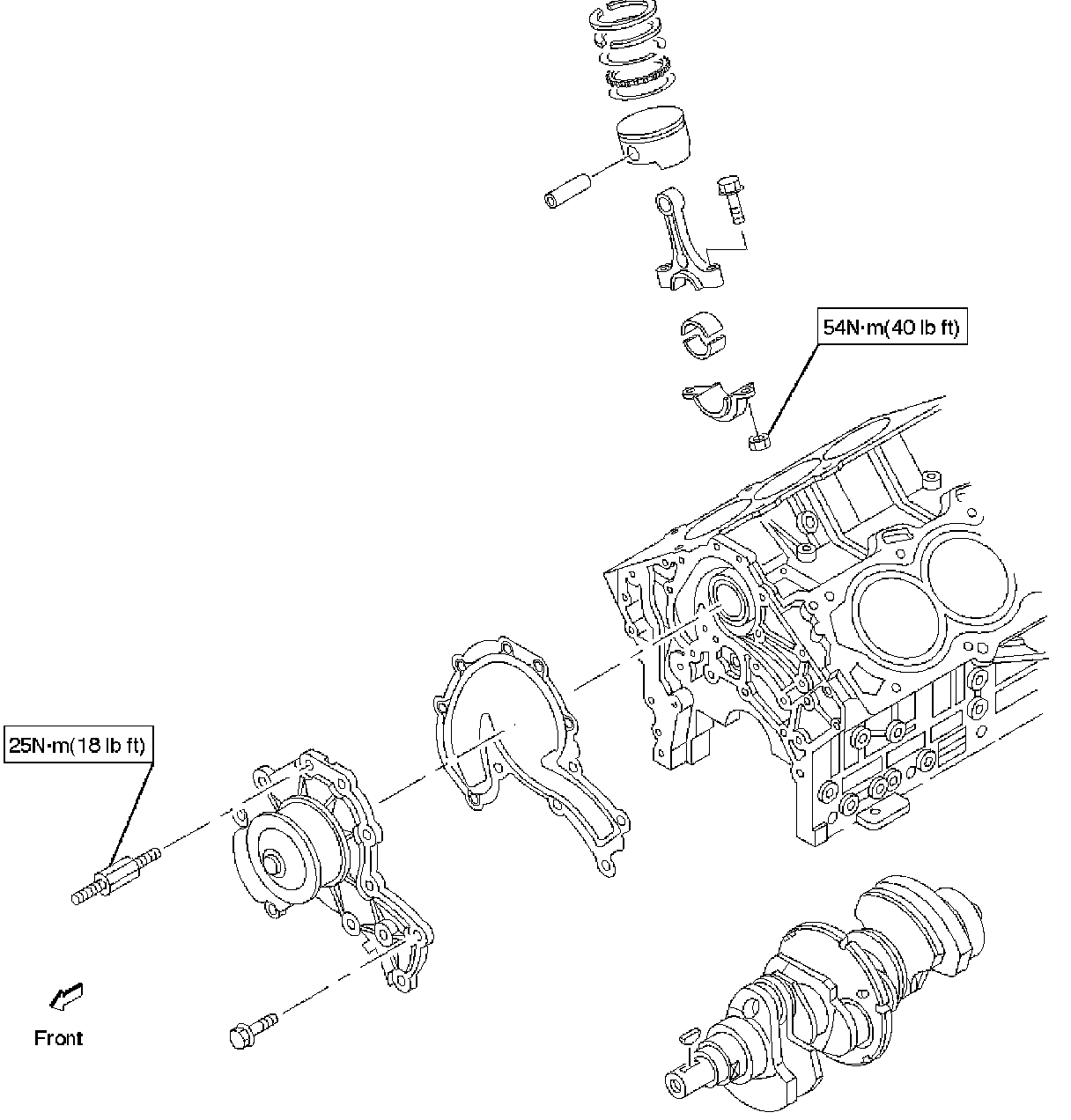

Connecting Rod and Water Pump

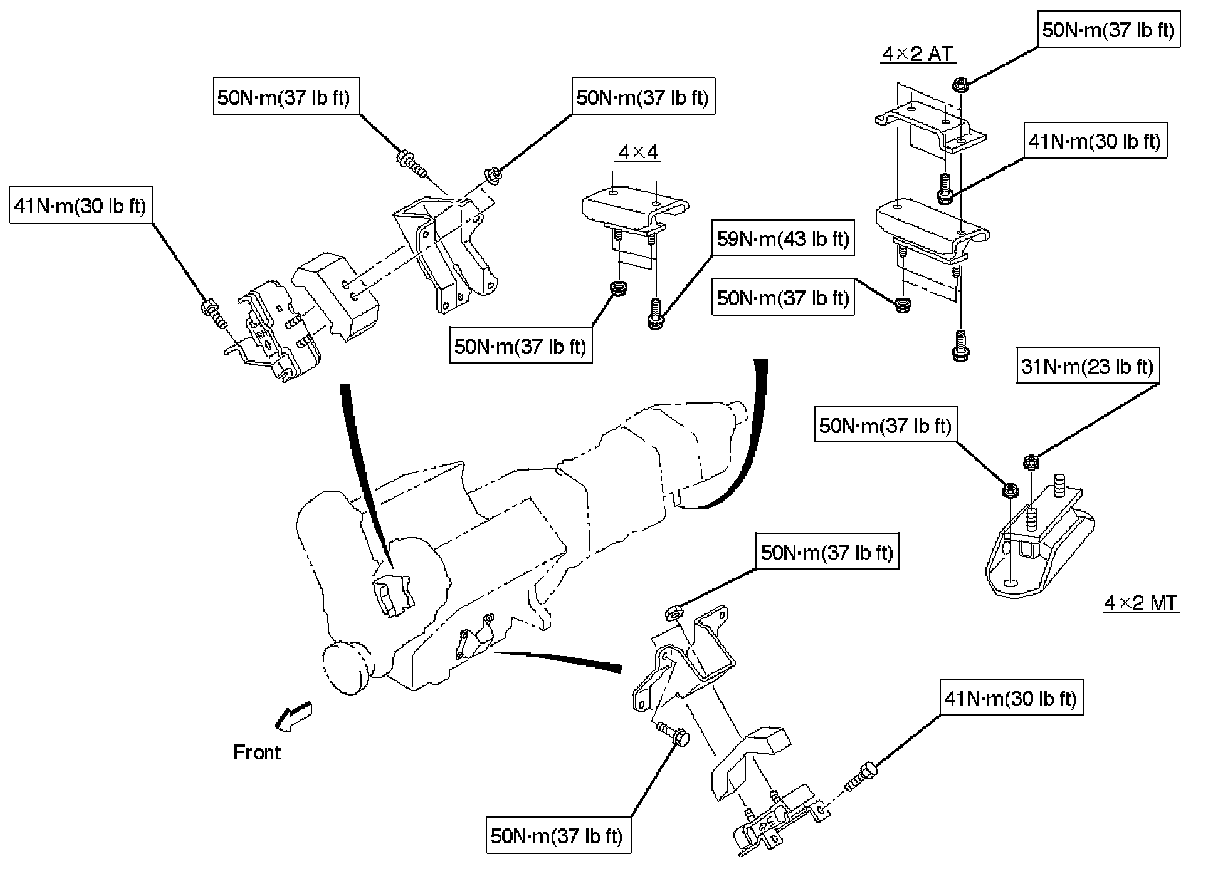

Engine Mount
