Control Module: Service and Repair

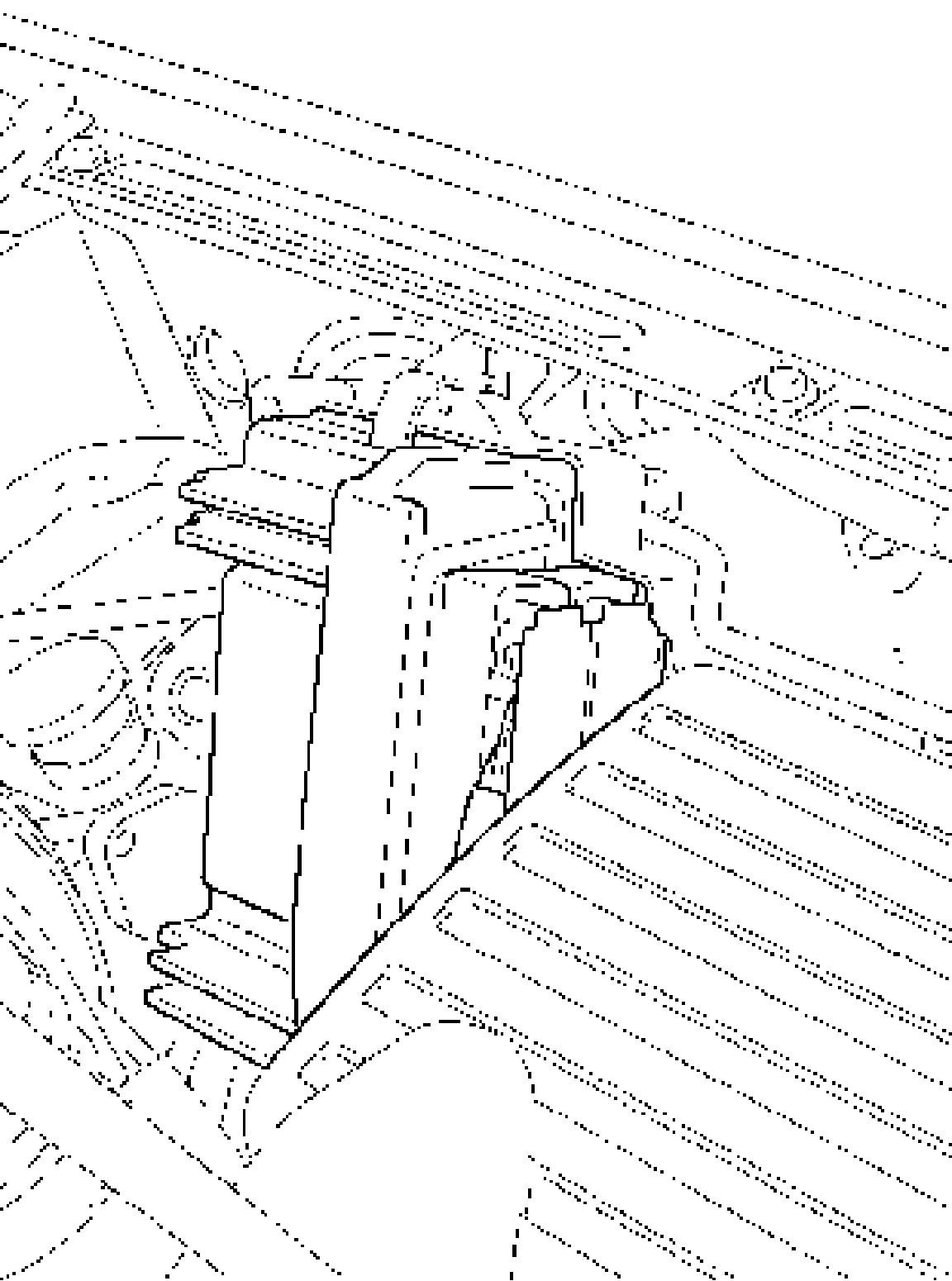

Powertrain Control Module (PCM) (V6)
Removal
1. Disconnect battery ground cable.
2. Disconnect PCM wiring harness connectors from PCM.





3. Remove PCM from bracket.

Installation
1. Install PCM to bracket.
2. Connect PCM wiring harness connectors to PCM.
3. Connect battery ground cable.
