4WD Control Unit

4WD Control Unit





Removal

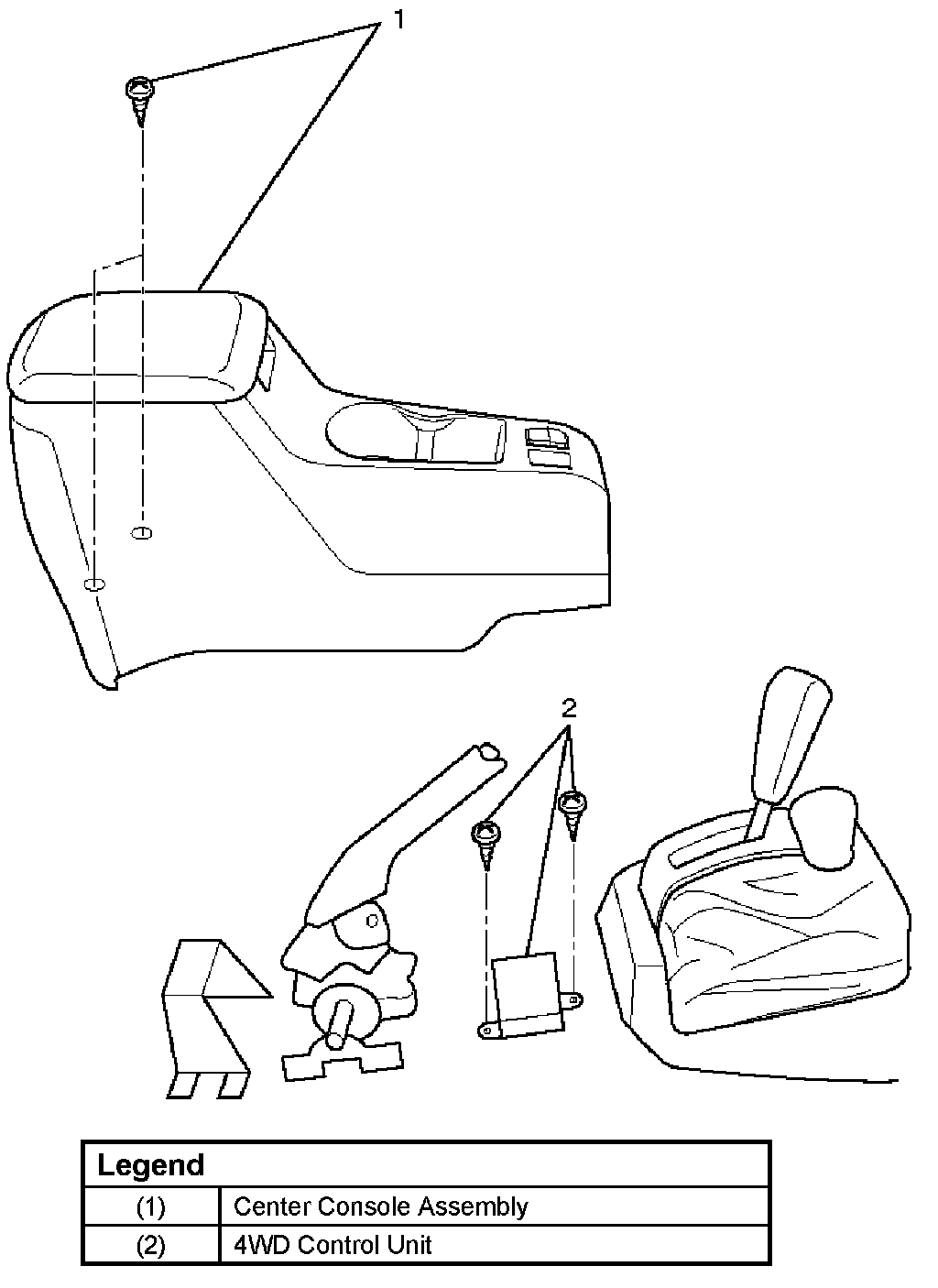

1. Remove center console assembly.

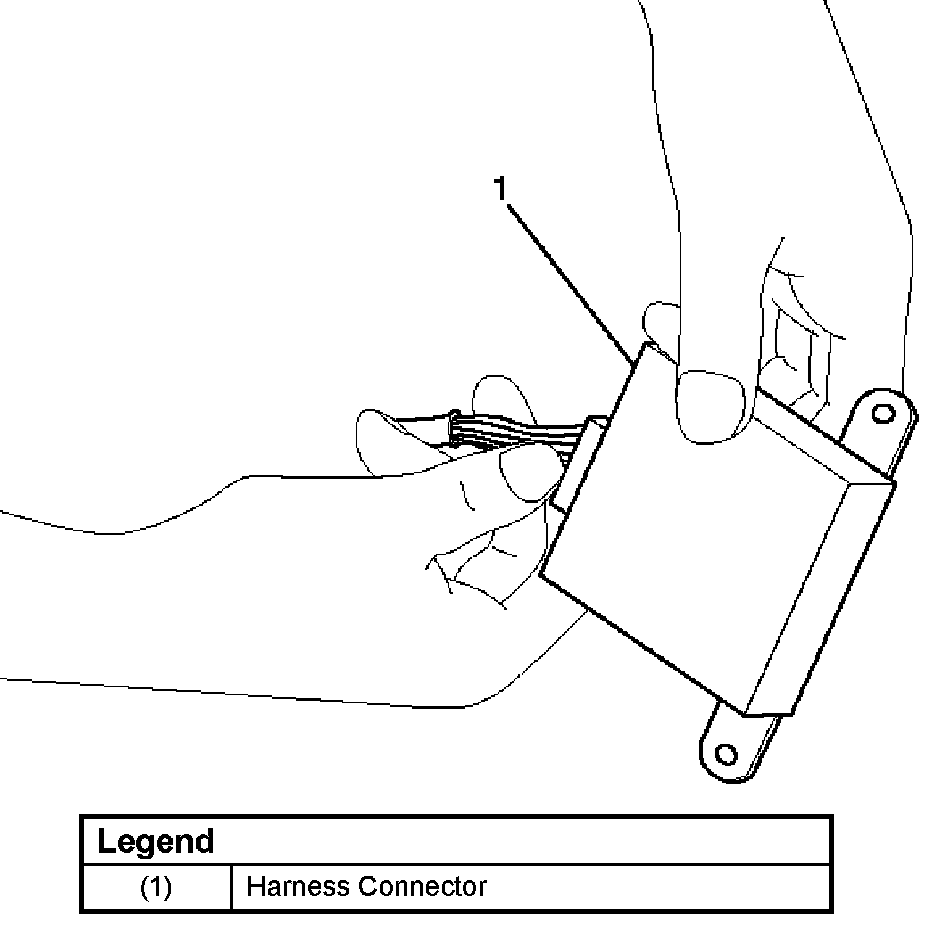

2. Remove two screws and harness connector (1) from 4WD control unit.

Installation
1. Connect harness connector, then install 4WD control unit.
2. Install center console assembly.
