Component Locations

NOTE: For component locations, refer to appropriate illustration. See Fig 1-Fig 3 .

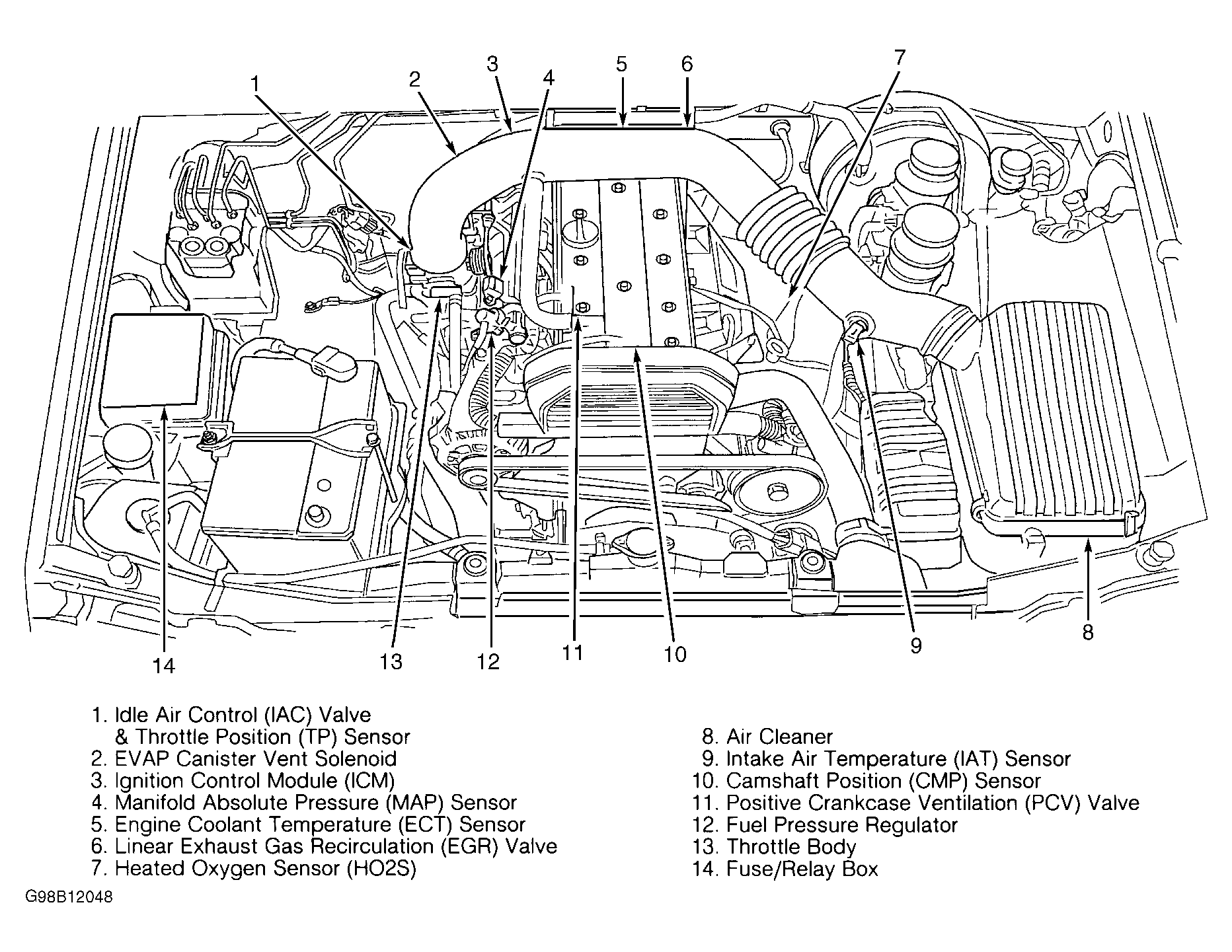

Fig 1: Component Locations (Rodeo & Rodeo Sport 2.2L)

Courtesy of ISUZU MOTOR CO.

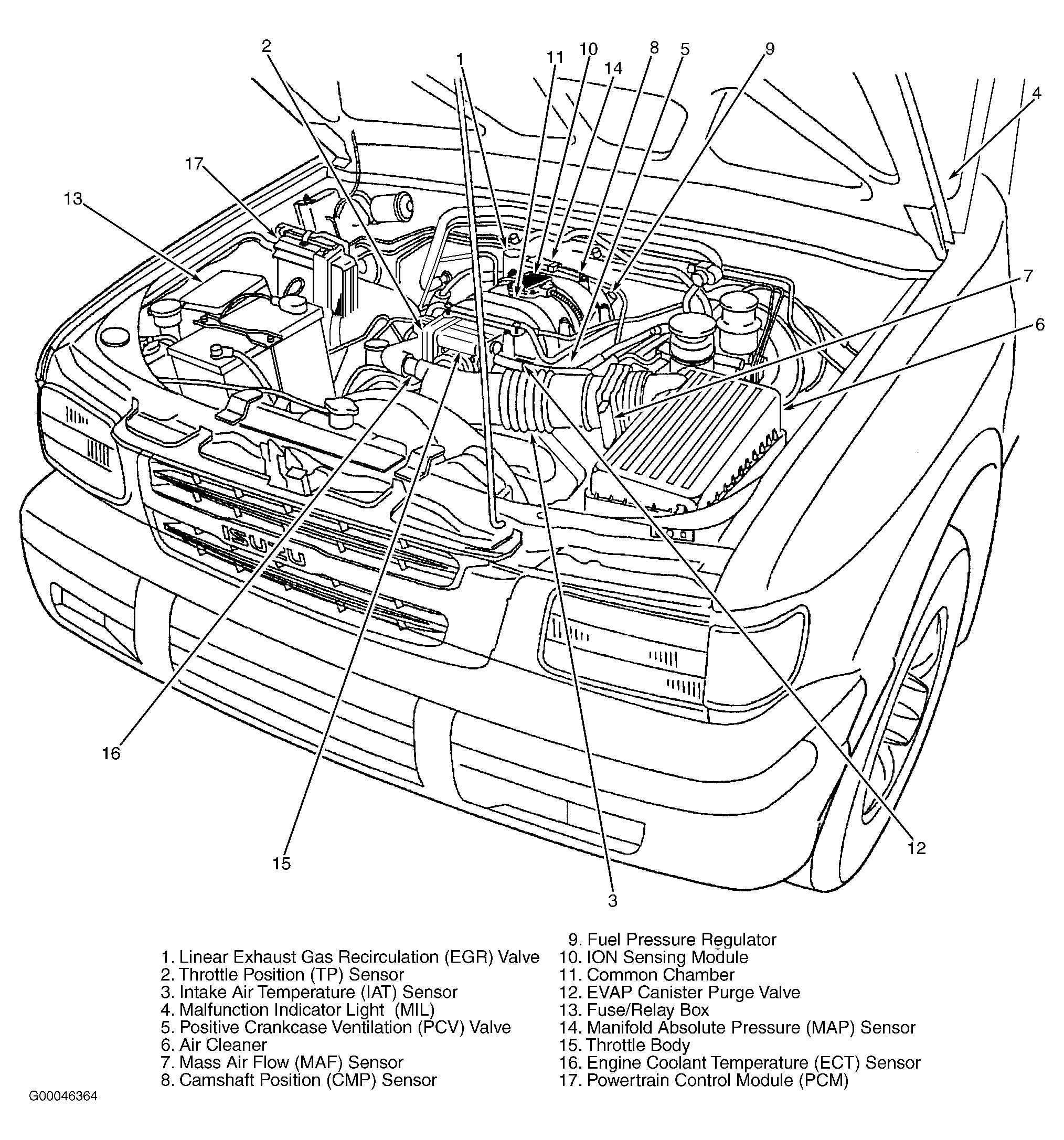

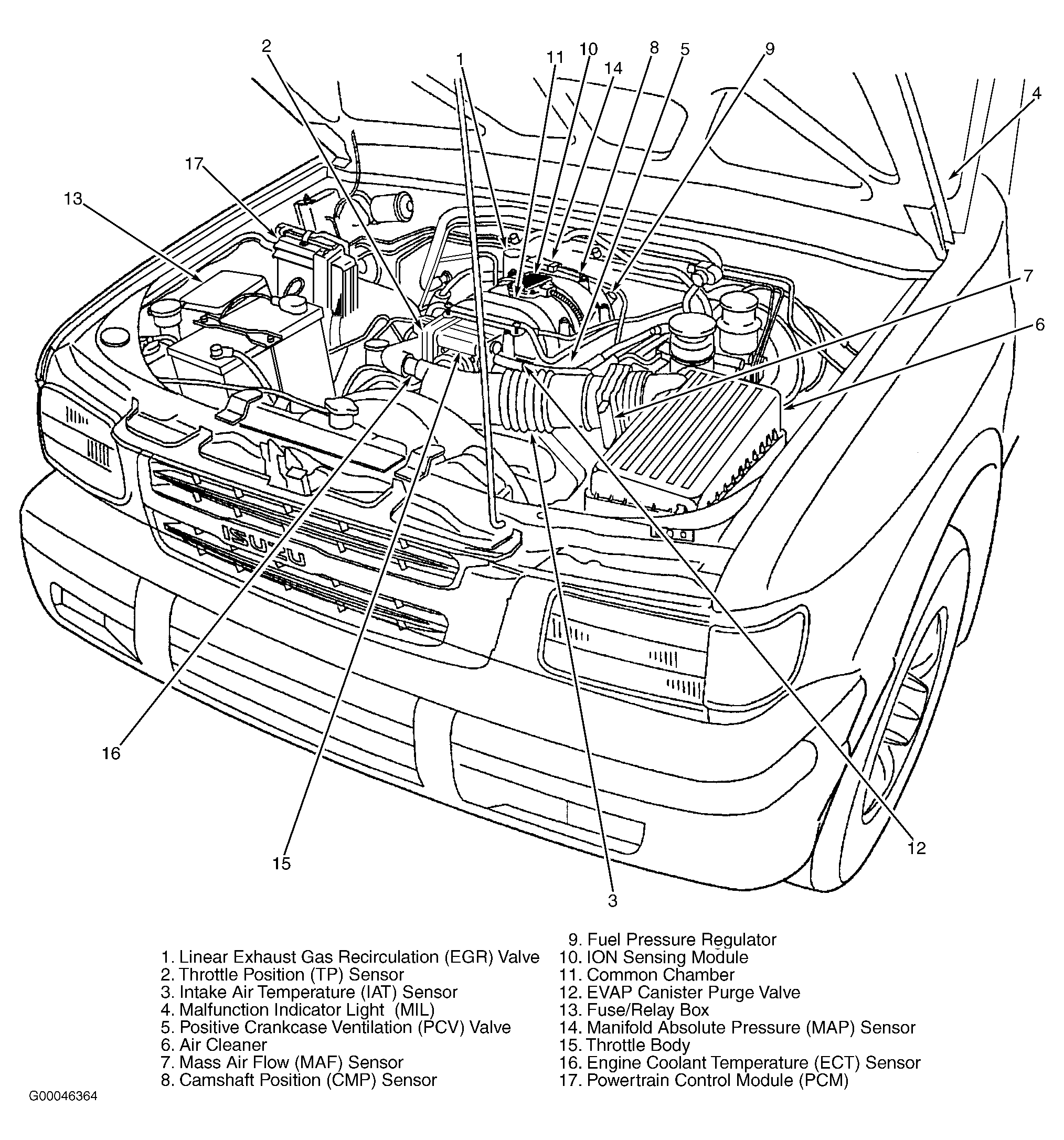

Fig 2: Component Locations (Axiom 3.5L, Passport, Rodeo & Rodeo Sport 3.2L)

Courtesy of ISUZU MOTOR CO.

Fig 3: Component Locations (Trooper 3.5L)

Courtesy of ISUZU MOTOR CO.
