Inflator Module: Removal
- Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.
- Turn the ignition switch to "LOCK".
- Disconnect the battery "-" terminal cable, and wait at least 5 minutes.
- Disconnect the yellow 2-way SRS connector located under the steering column.

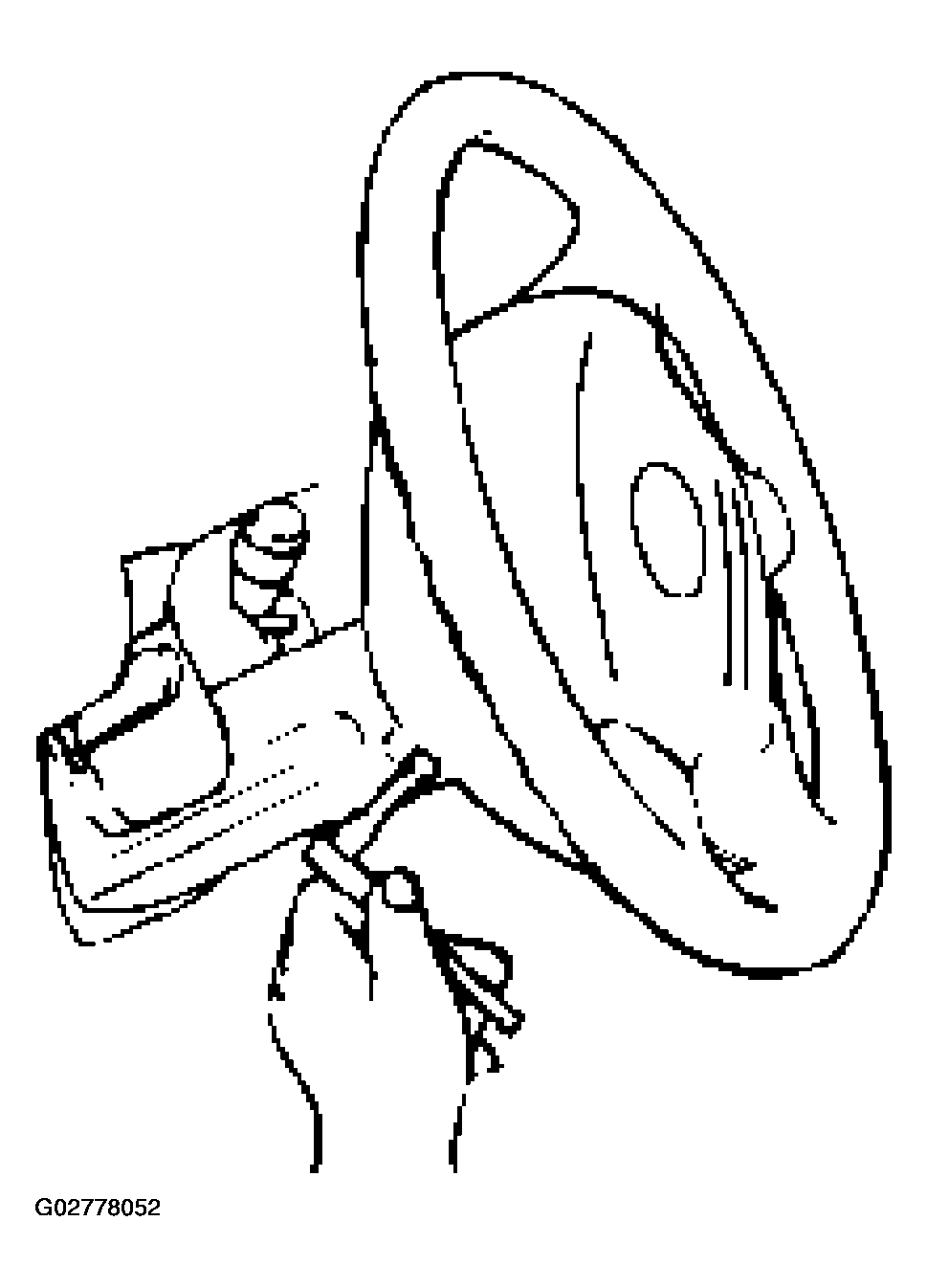

- Loosen the inflator module fixing bolt from behind the steering wheel assembly using a TORX® driver or equivalent until the inflator module can be released from steering assembly.
- Disconnect the yellow 2-way SRS connector and horn lead located behind the inflator module.
- Remove inflator module.
