Power Steering Unit: Removal: Notes

Remove the stone guard.
Remove the transfer gear assembly and universal joint assembly.
Make a setting mark across the coupling flange and steering unit to ensure reassembly of the parts in the original position.
Drain power steering fluid.
Remove the tie rod end assembly from knuckle.
Use tie rod end remover J-29107.

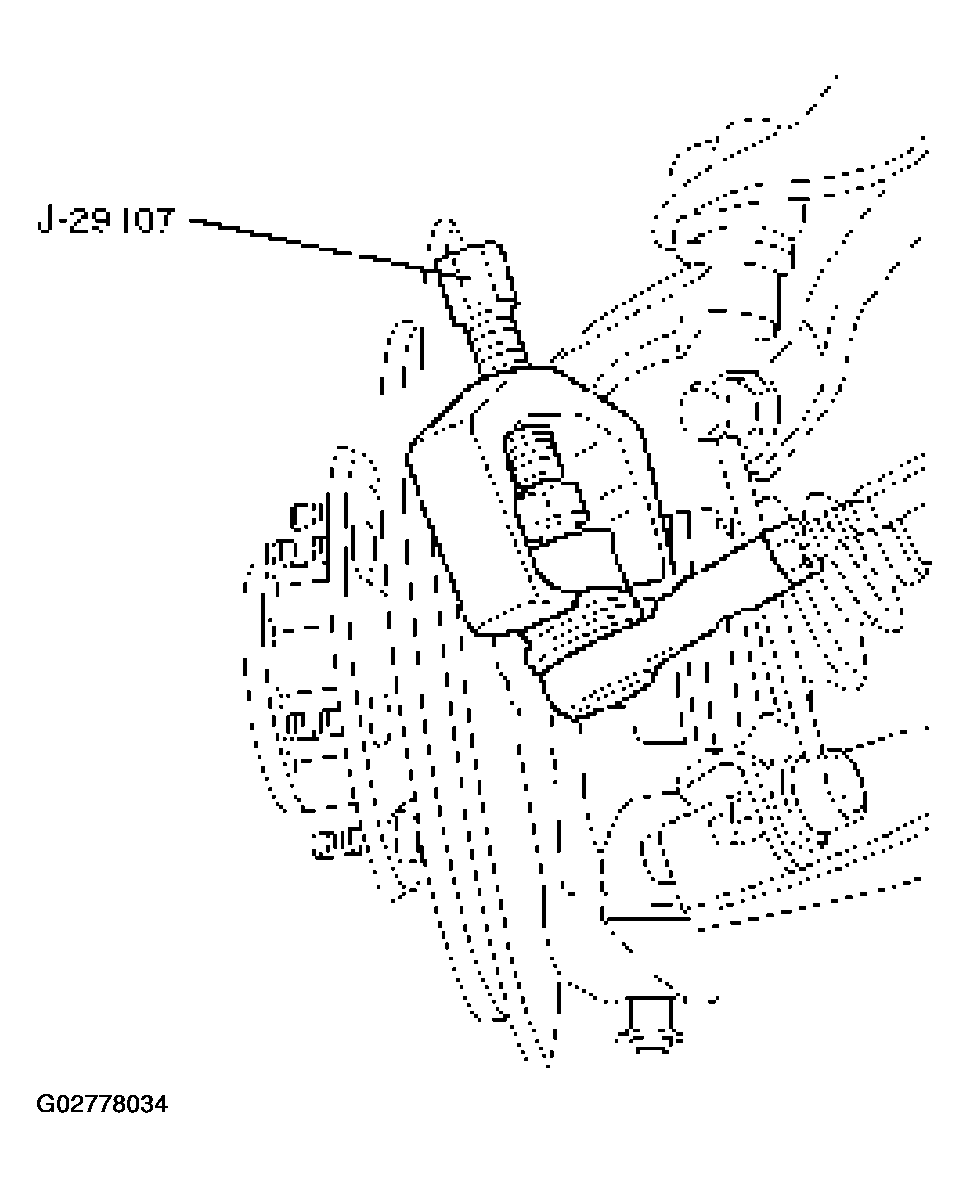

Fig 1: Identifying Tie Rod End
Disconnect the feed line and return line from steering unit.
Remove the clips on the crossmember and frame.

Wire the power steering line to frame.

NOTE: Take care to prevent foreign matter from entry when disconnect the power steering line.

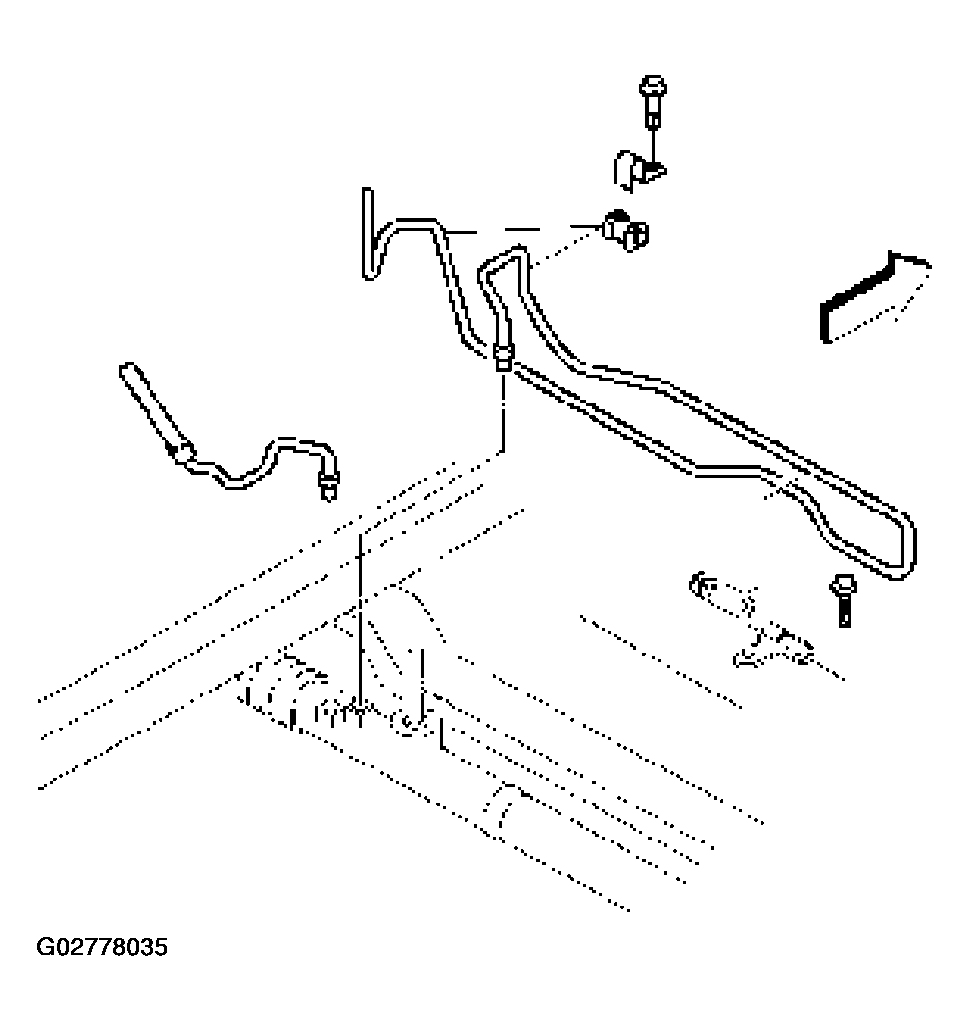

Fig 2: Disconnecting Feed Line And Return Line
