Engine Control Diagrams

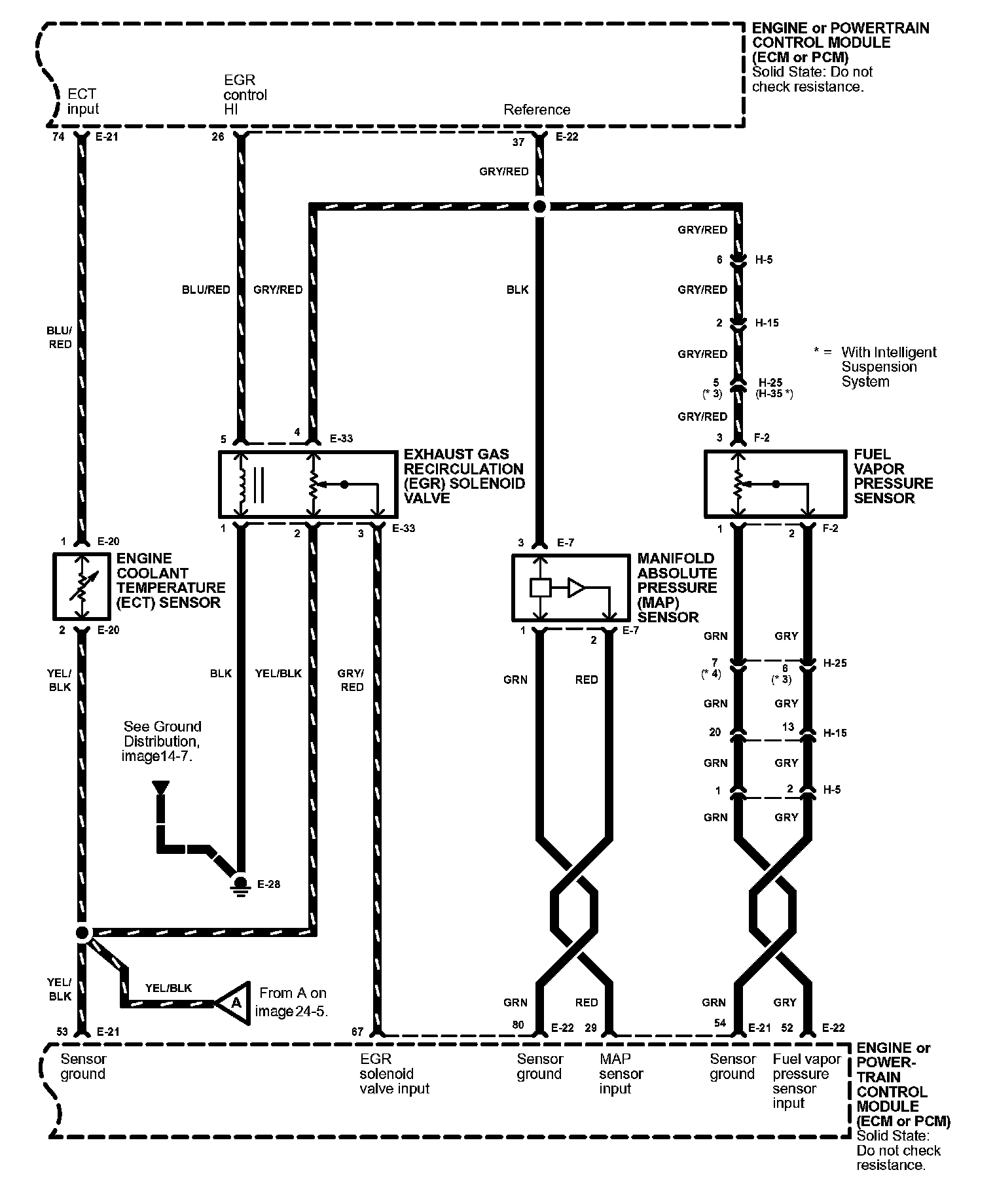

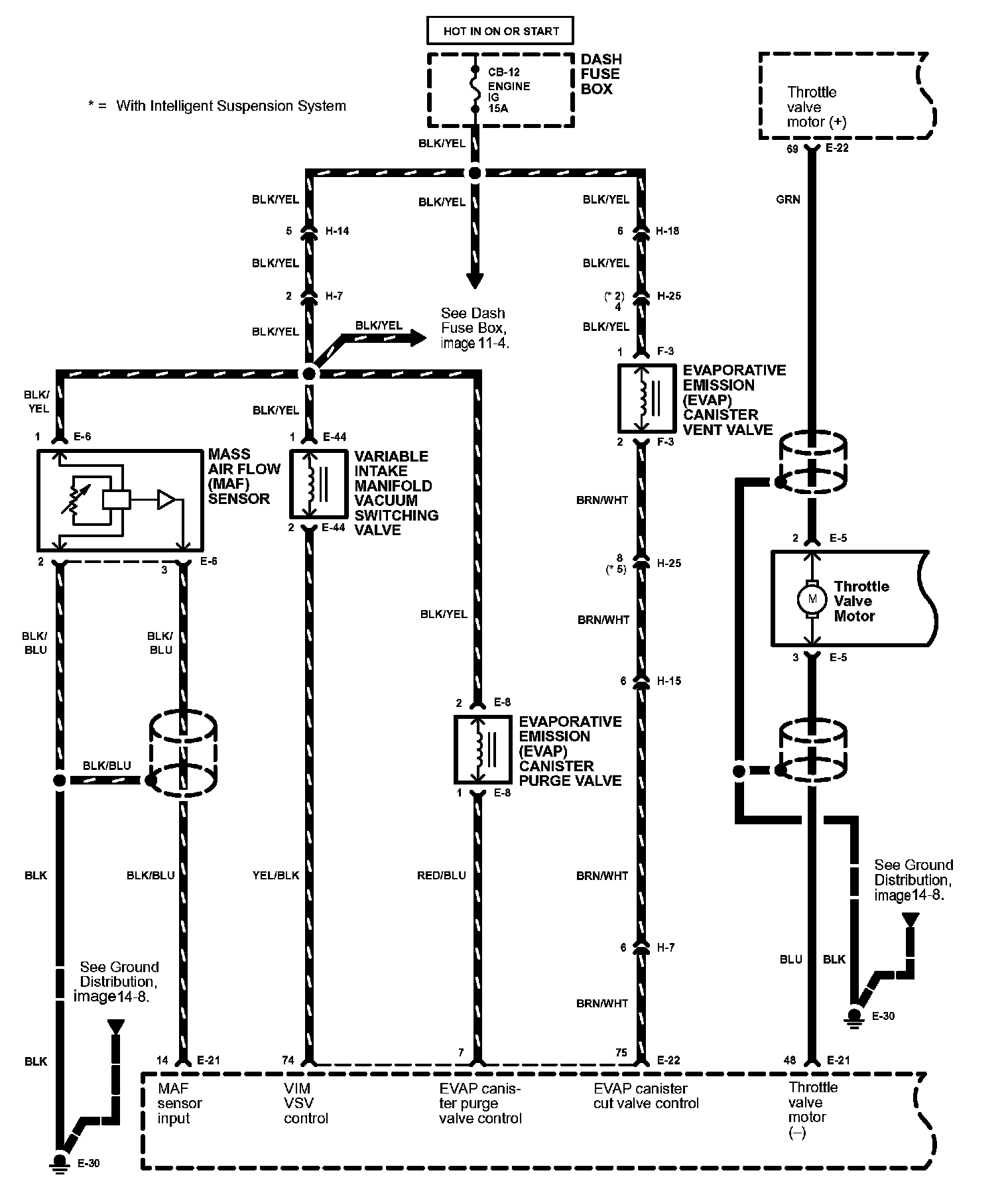

Engine Controls Image 24:

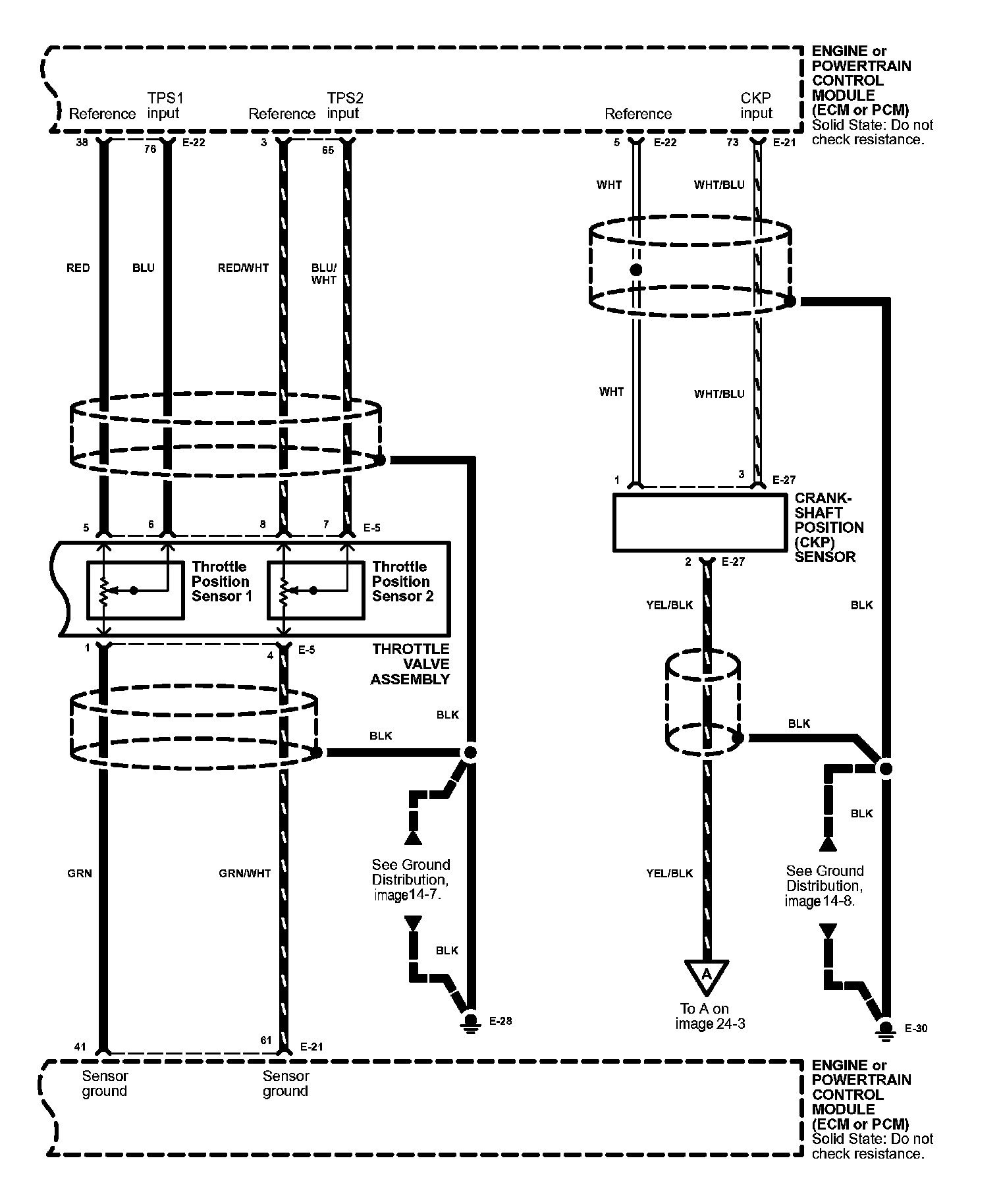

Engine Controls Image 24-1:

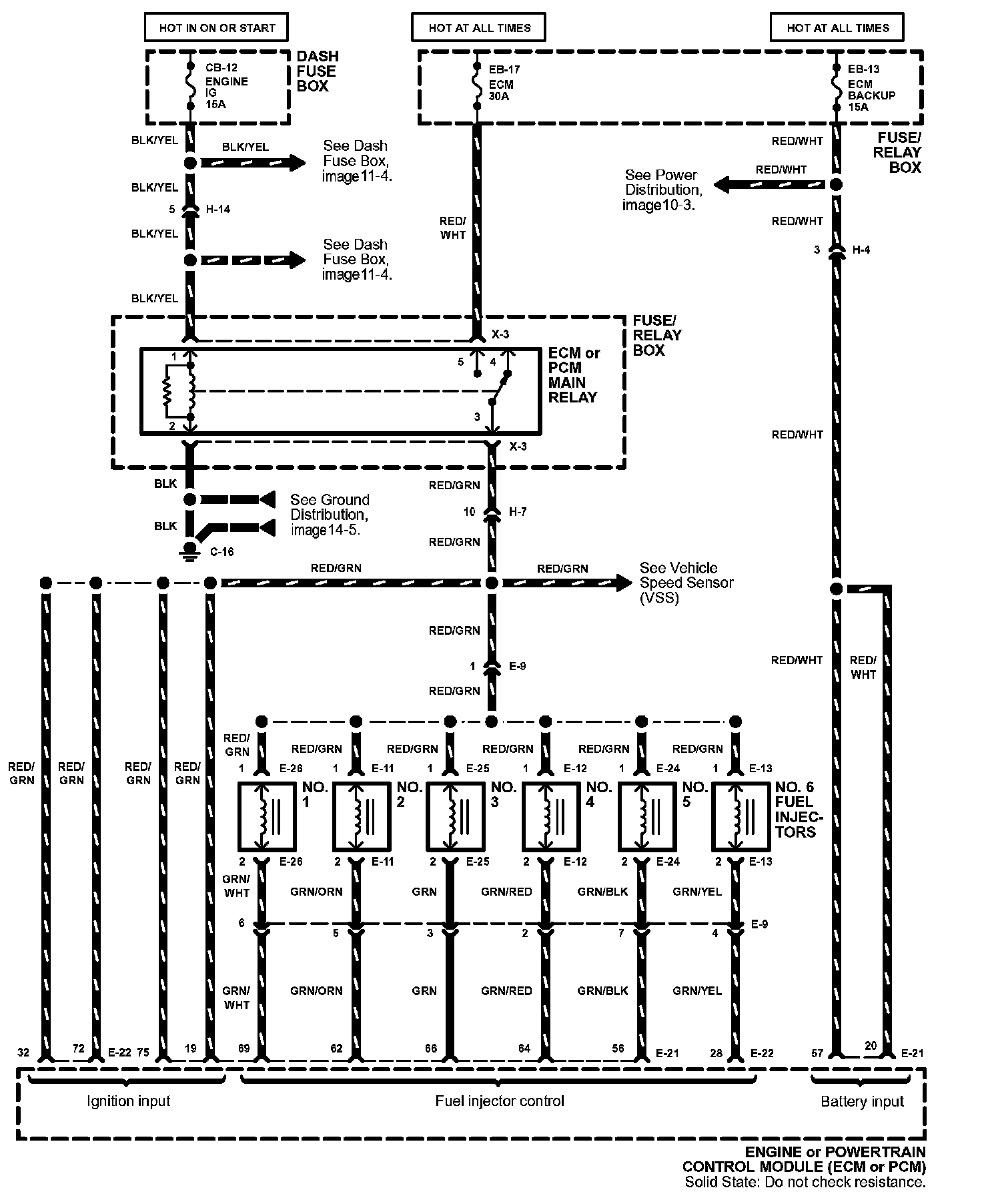

Engine Controls Image 24-2:

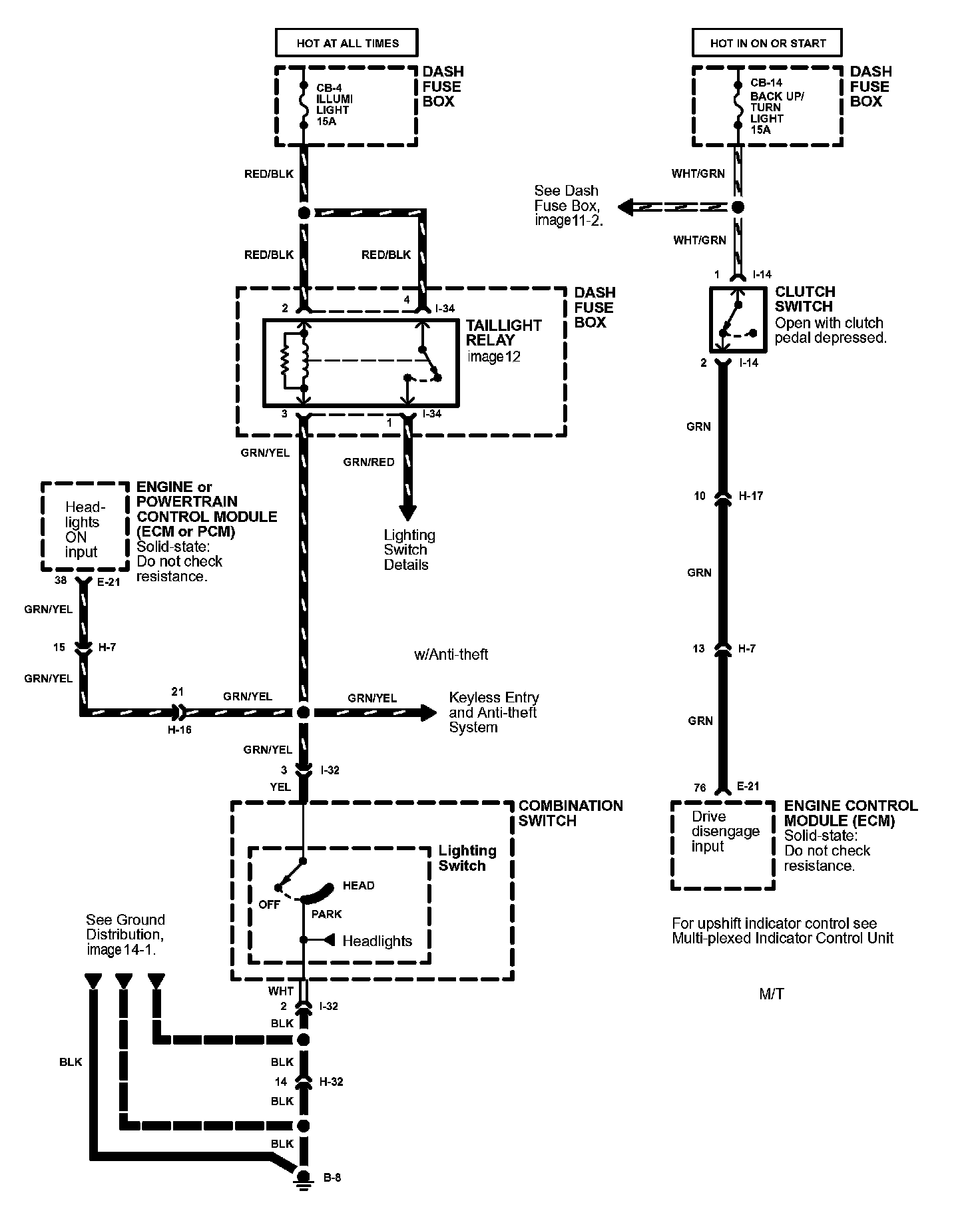

Engine Controls Image 24-3:

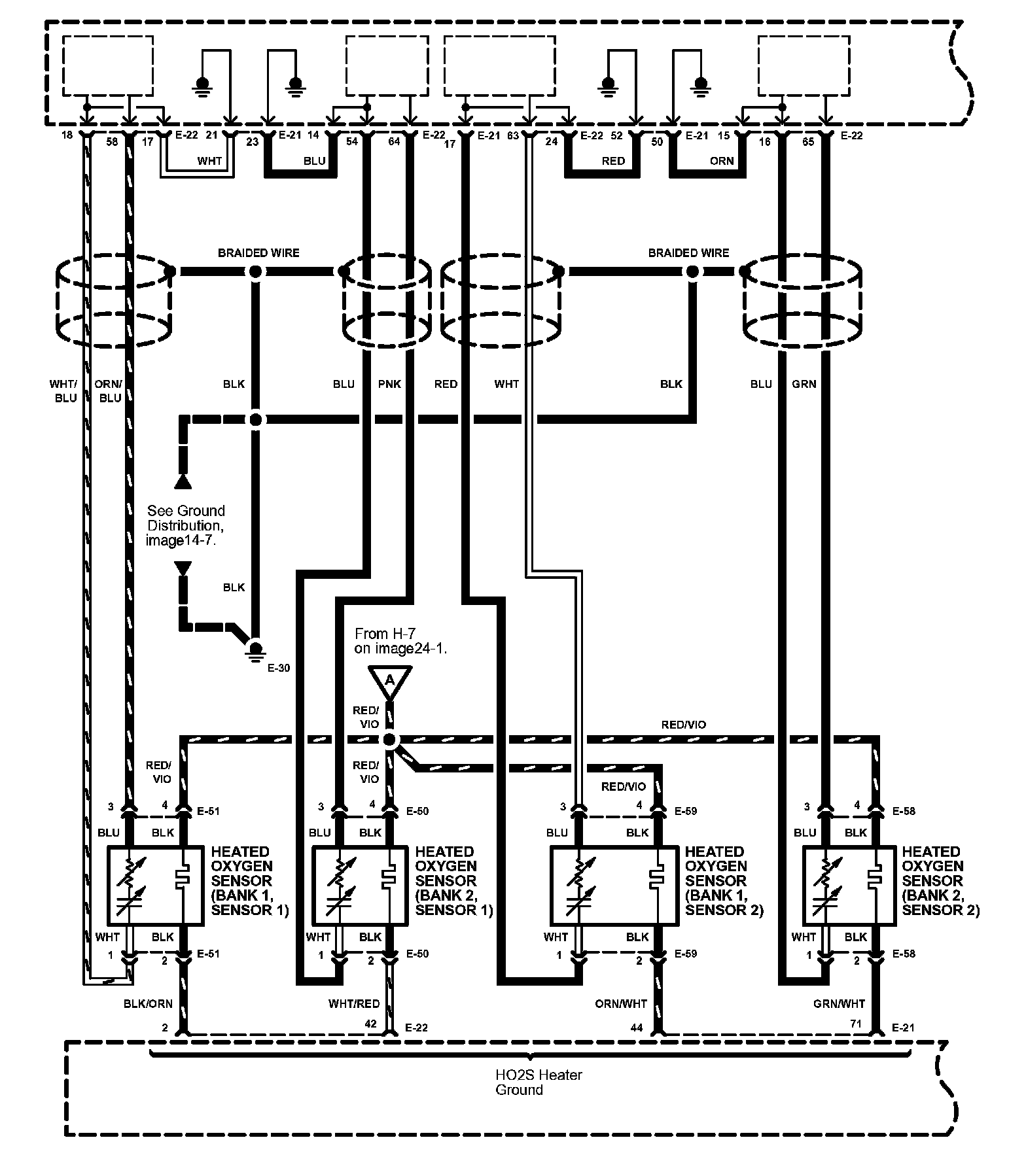

Engine Controls Image 24-4:

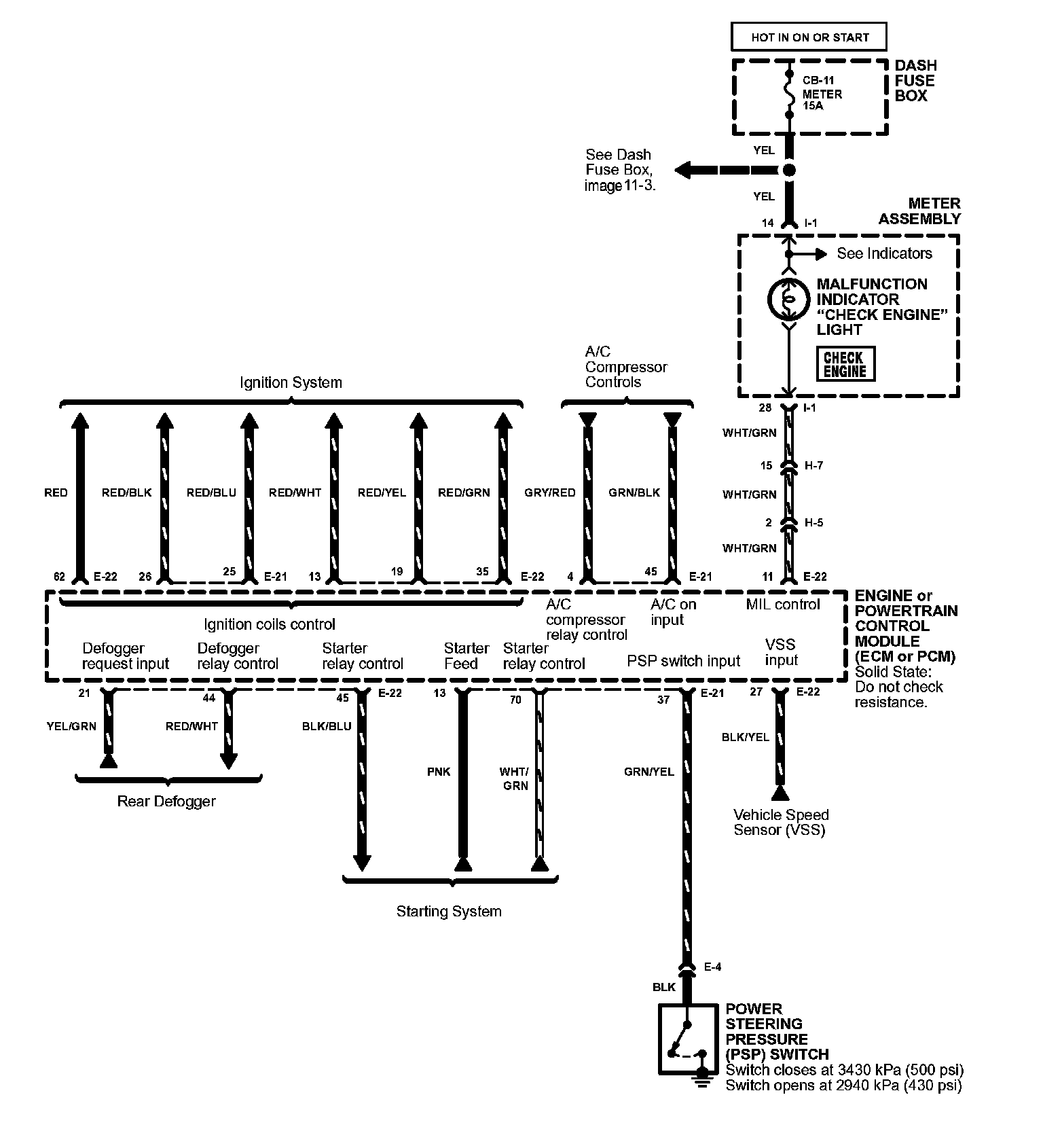

Engine Controls Image 24-5:

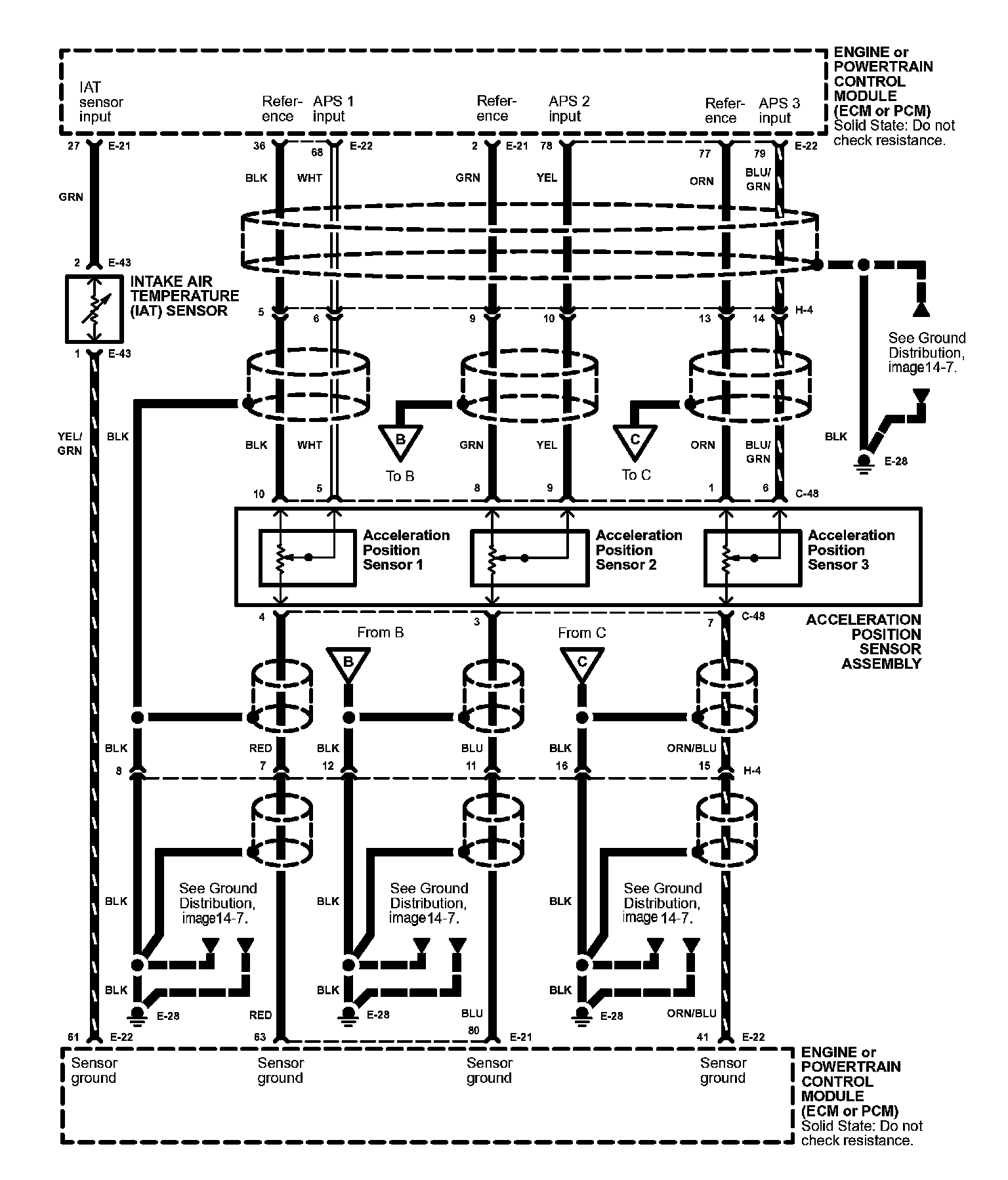

Engine Controls Image 24-6:

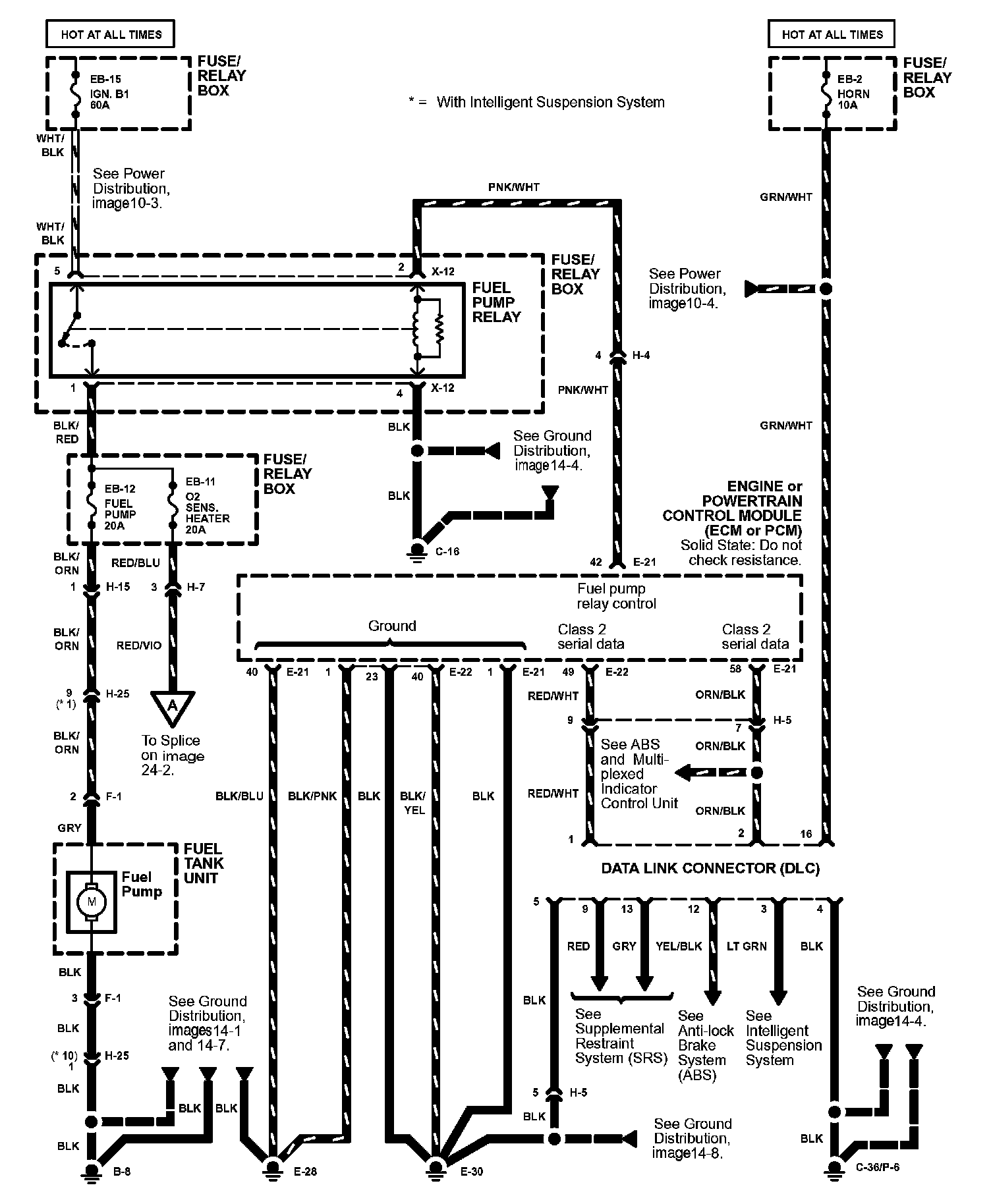

Engine Controls Image 24-7:



Engine Controls Image 24-8:
