Electrical Diagrams

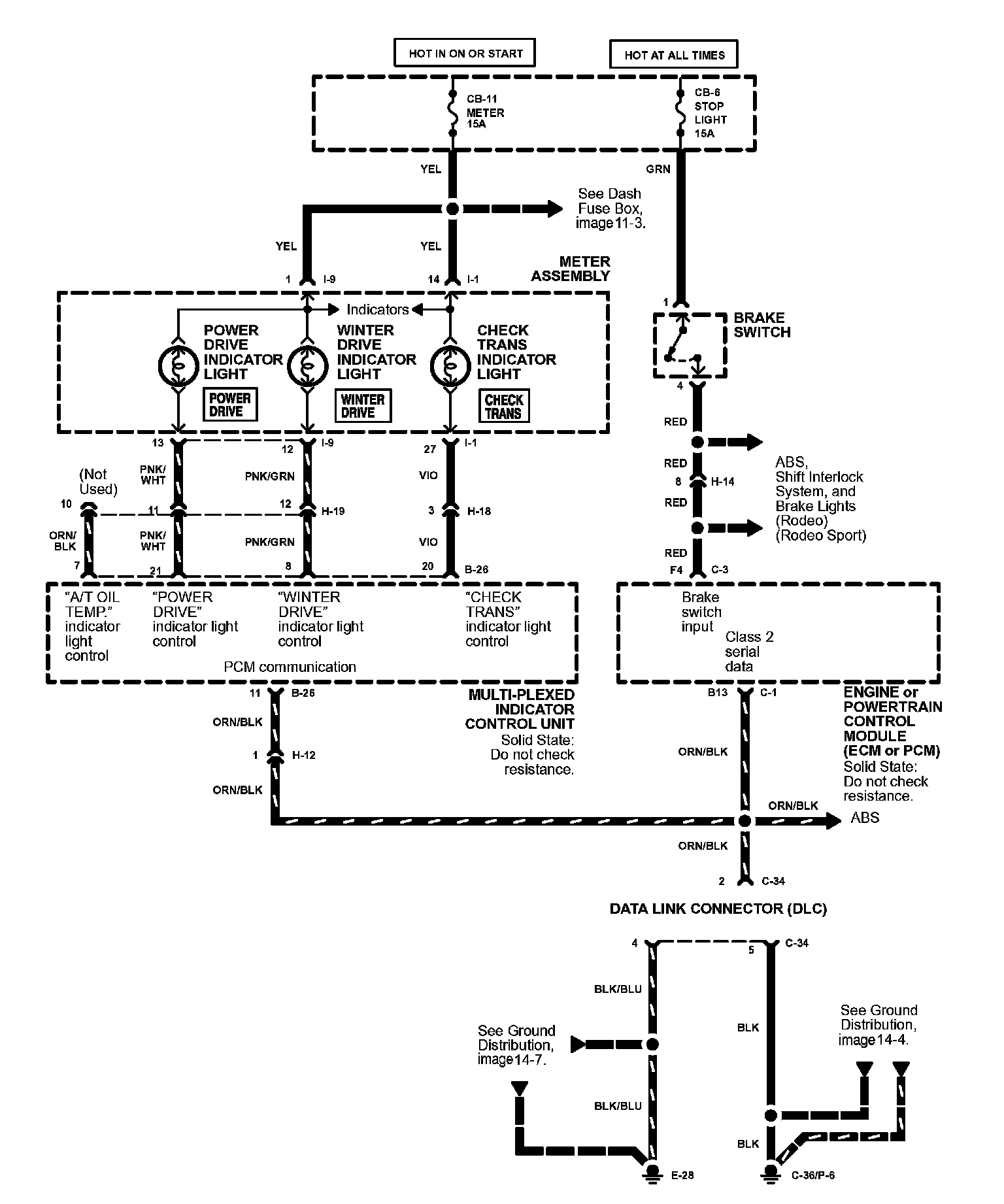

Automatic Transmission Controls Image 39:

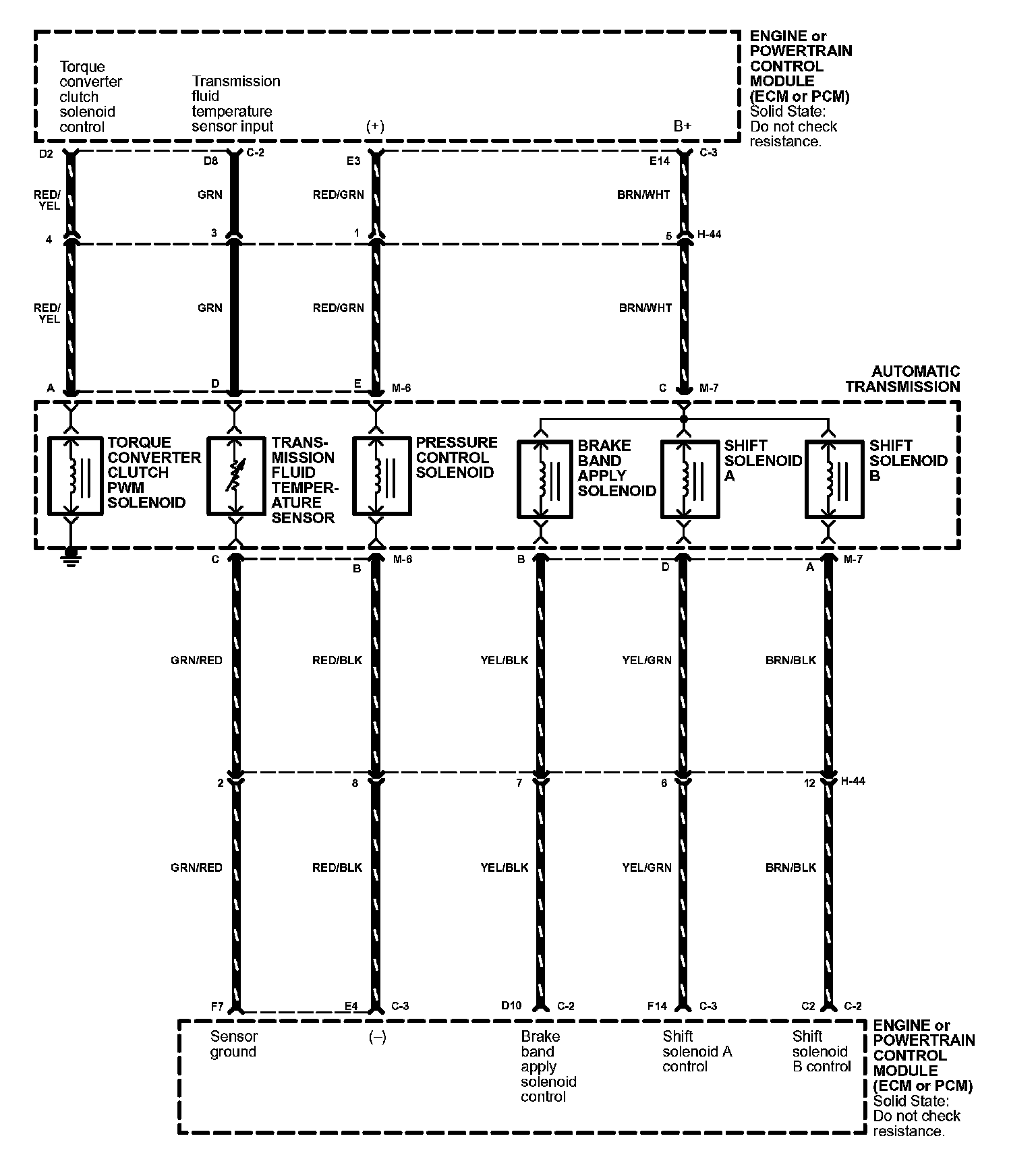

Automatic Transmission Controls Image 39-1:

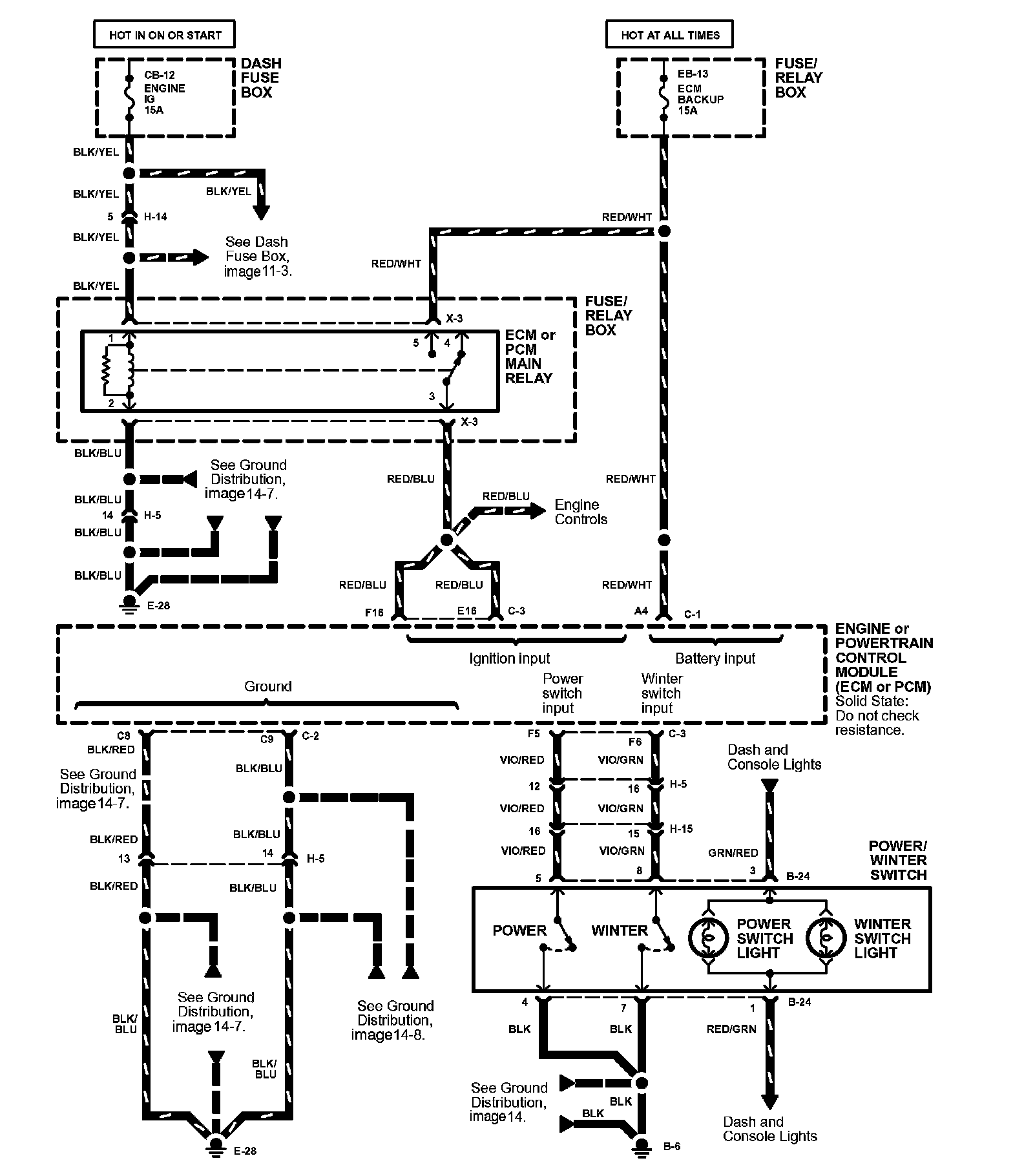

Automatic Transmission Controls Image 39-2:

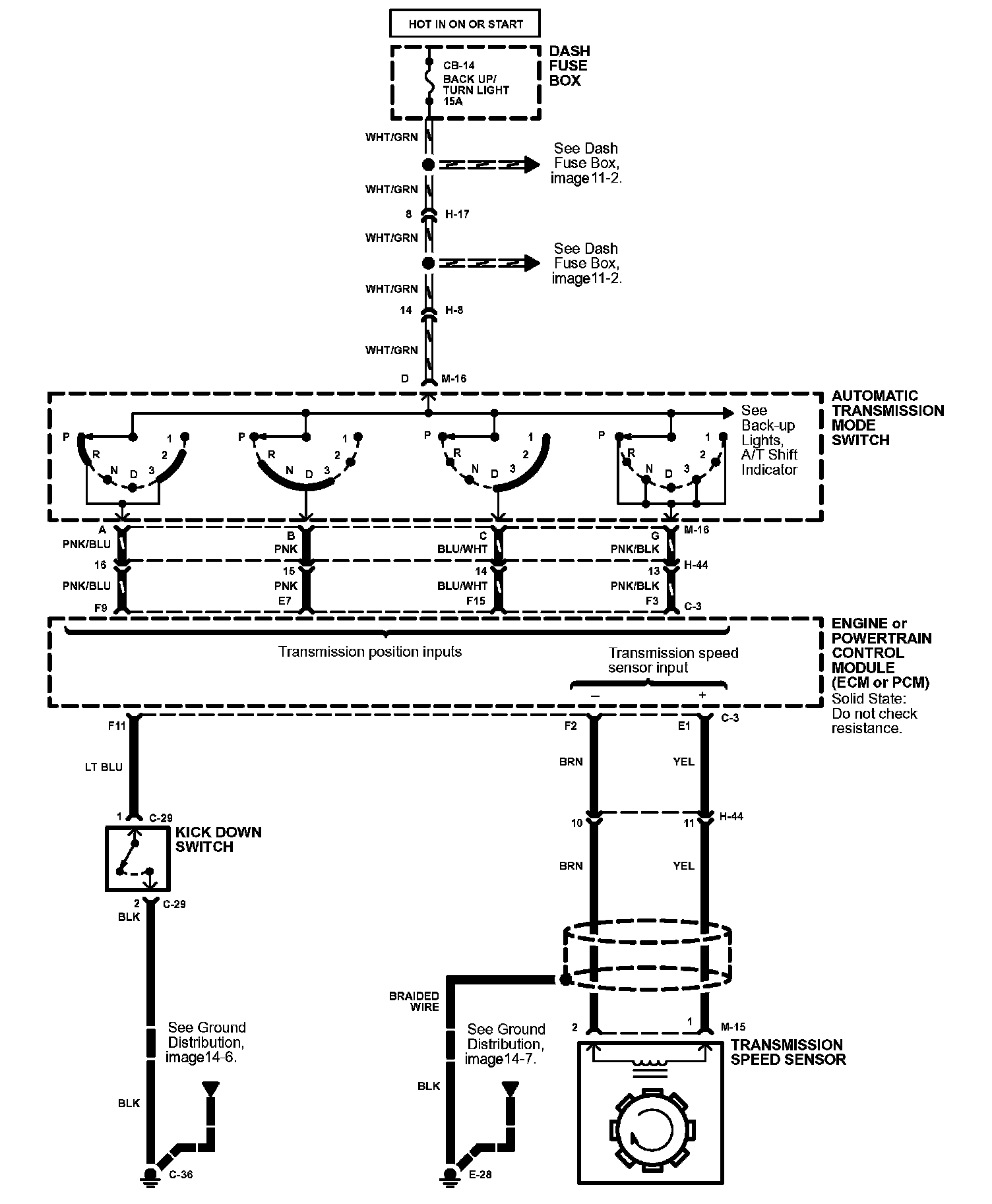

Automatic Transmission Controls Image 39-3:
