No Load Test

NOTE: Rating as short as 30 seconds requires rapid testing.

Fix the starter on the test bench, and wire. See Fig 1 . When the switch is closed, the current flows and the starter runs under no load. At this time, measure current, voltage and speed to check if they satisfy the standard. See STARTER SPECIFICATIONS .

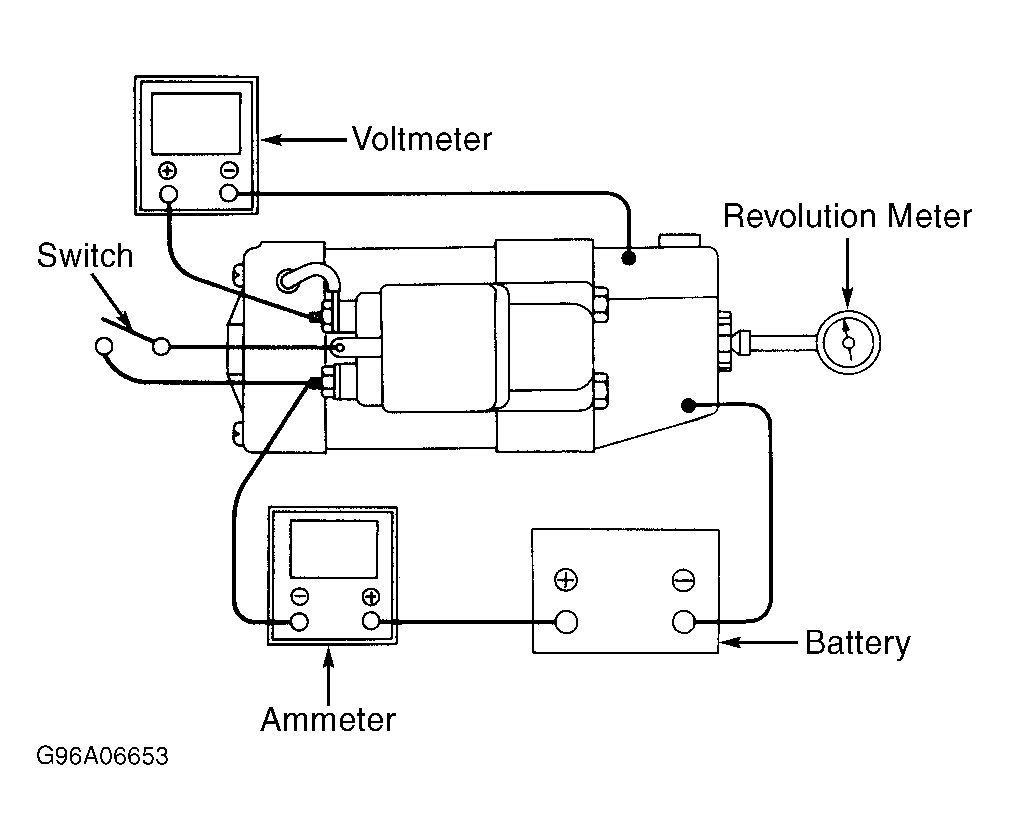

Fig 1: Fixing Starter On Test Bench

Courtesy of ISUZU MOTOR CO.
