Front Fender Panel: Removal
- Open the hood.
- Support the hood.
- Remove cowl cover.
- Refer to COWL COVER .
- Remove front combination lamp assembly.
- Disconnect fixing screw and connector.
- Remove front mud flap.
- Disconnect three fixing screws and four clips.
- Remove inner liner.

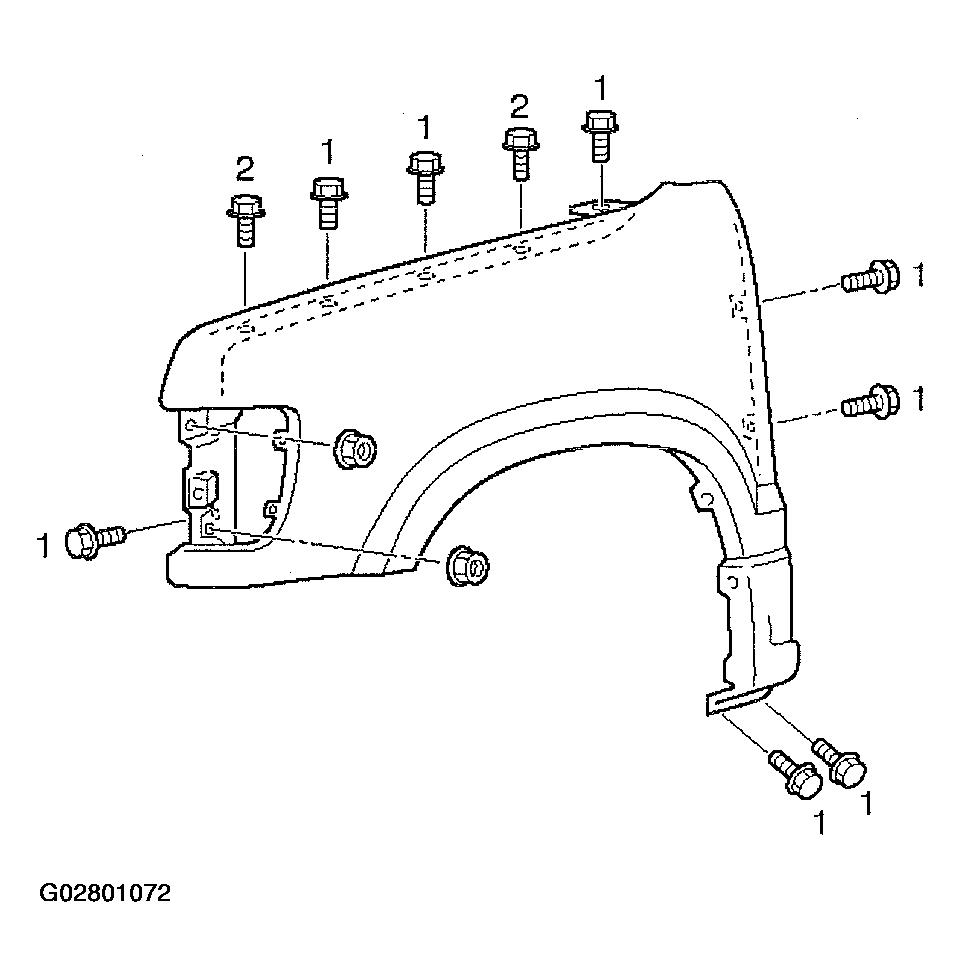

- Remove front fender panel.
- Disconnect ten fixing bolts and two nuts.
