Chart C-1-3 RL Sensor Output Inspection Procedure

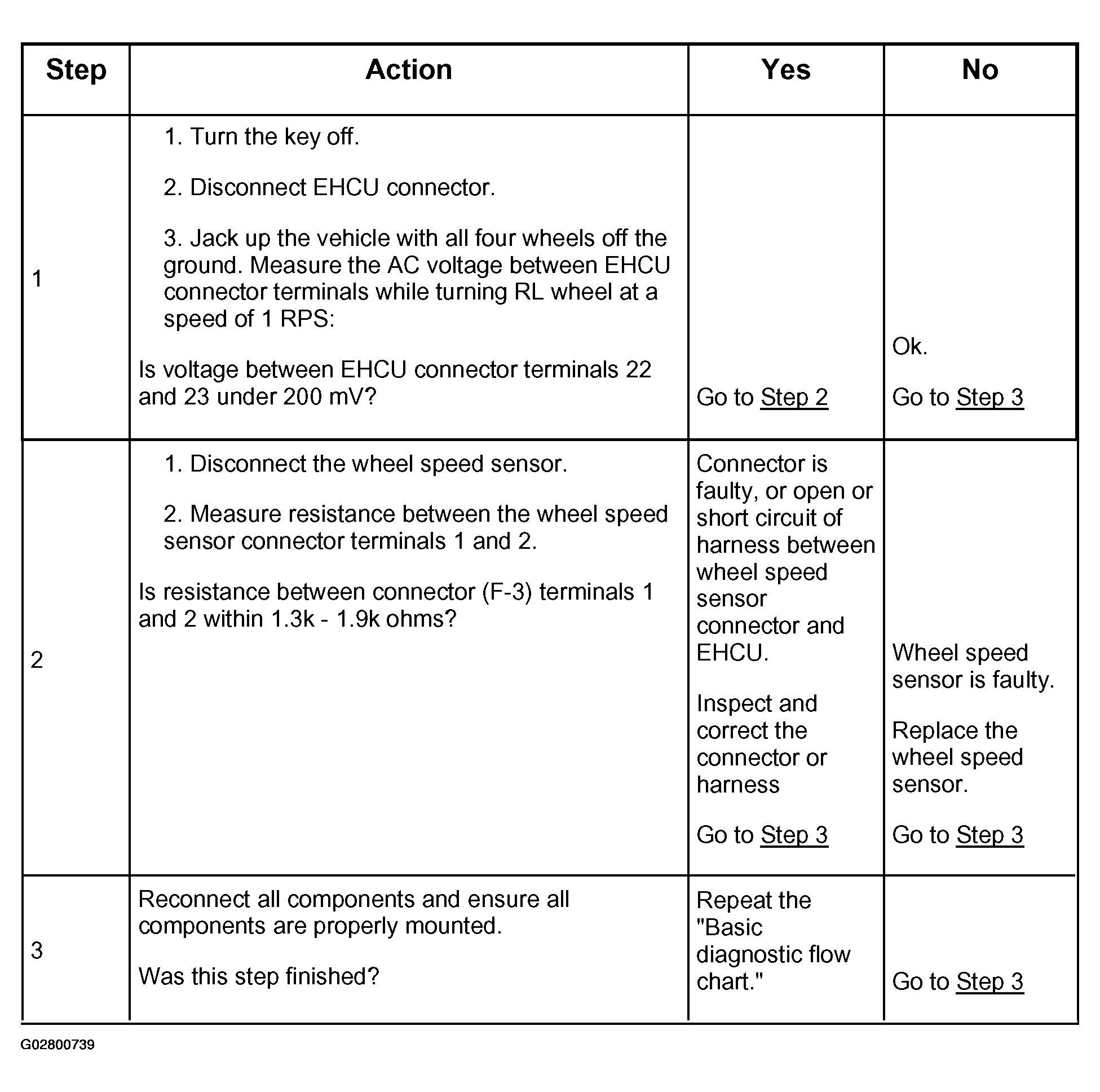

Fig 1: RL Sensor Output Inspection Procedure
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
