Chart C-1-4 RR Sensor Output Inspection Procedure

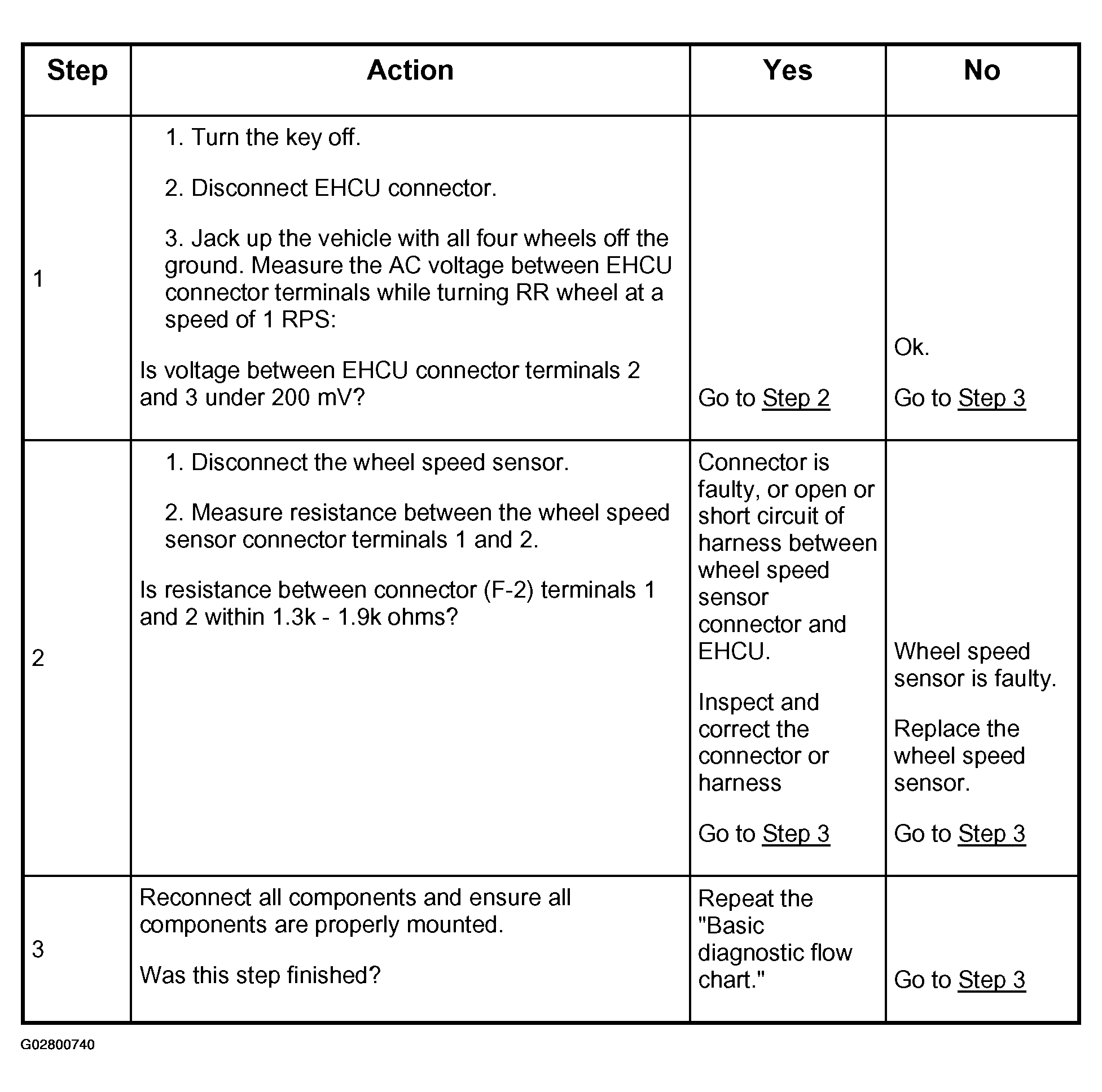

Fig 1: RR Sensor Output Inspection Procedure
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
