Chart TC-2 Transmission Input Inspection Procedure (Use TECH 2)

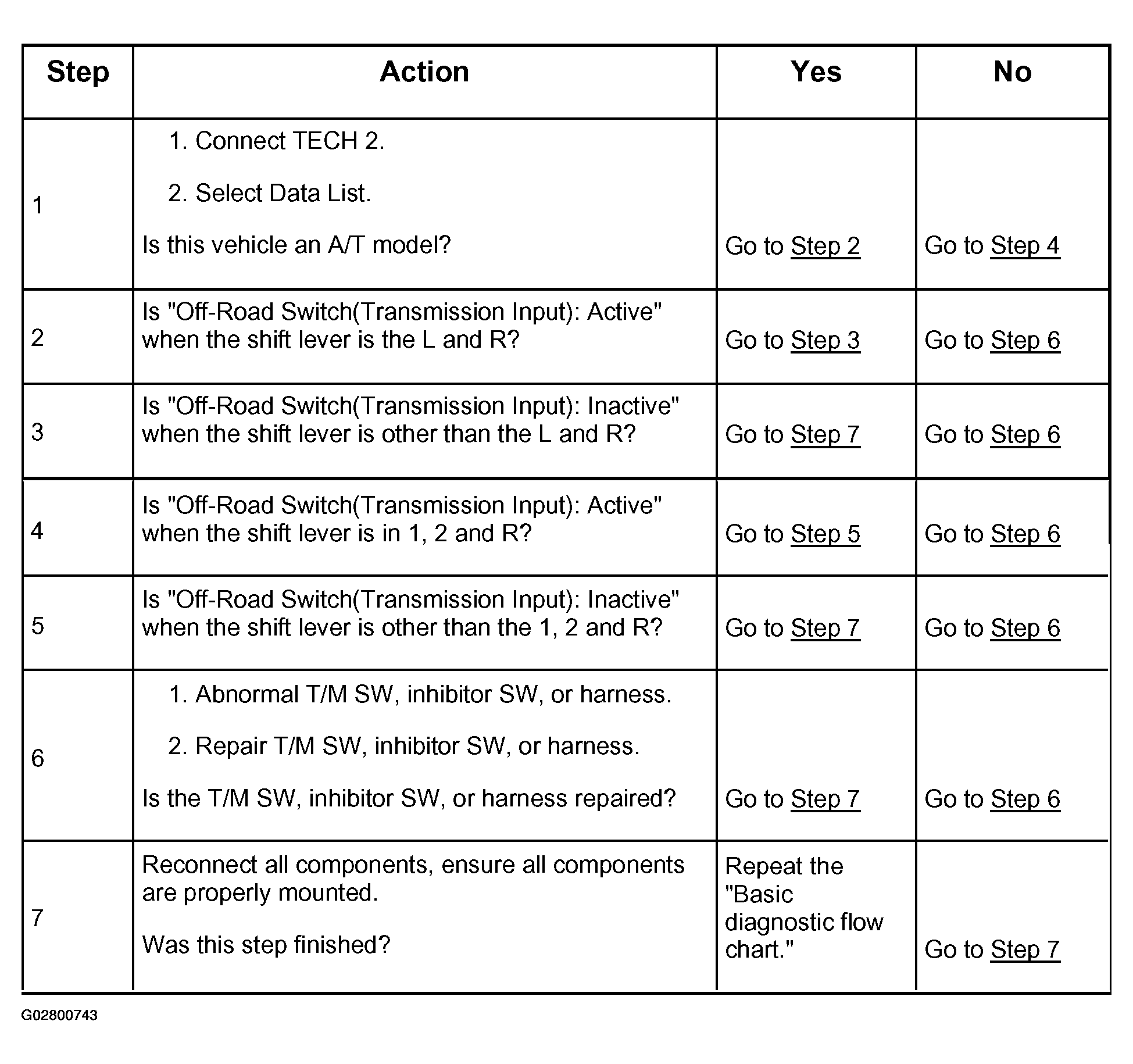

Fig 1: Transmission Input Inspection Procedure (Use TECH 2)
G02800743Courtesy of ISUZU MOTOR CO.
