Continuity Of Serial Coil

Check for continuity between terminals (S) and (M). Replace if there is no continuity. See Fig 1 .

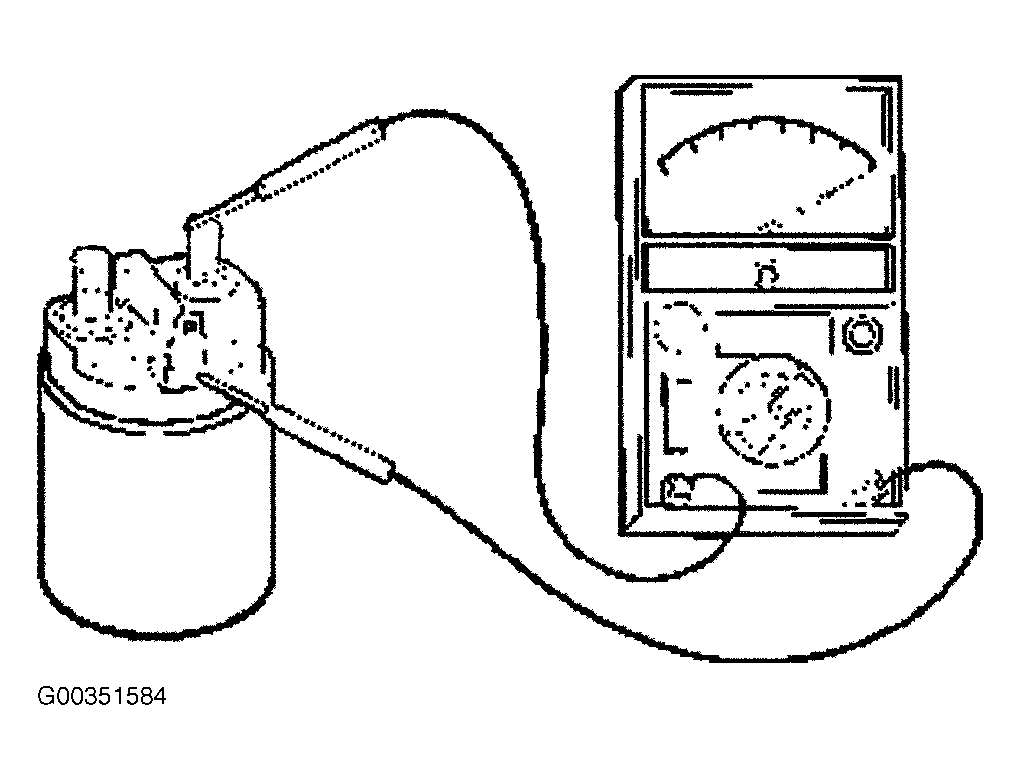

Fig 1: Checking Continuity Of Series Coil
G00351584Courtesy of ISUZU MOTOR CO.
