Engine Code Location

For engine code location, see Fig 1 -Fig 3 .

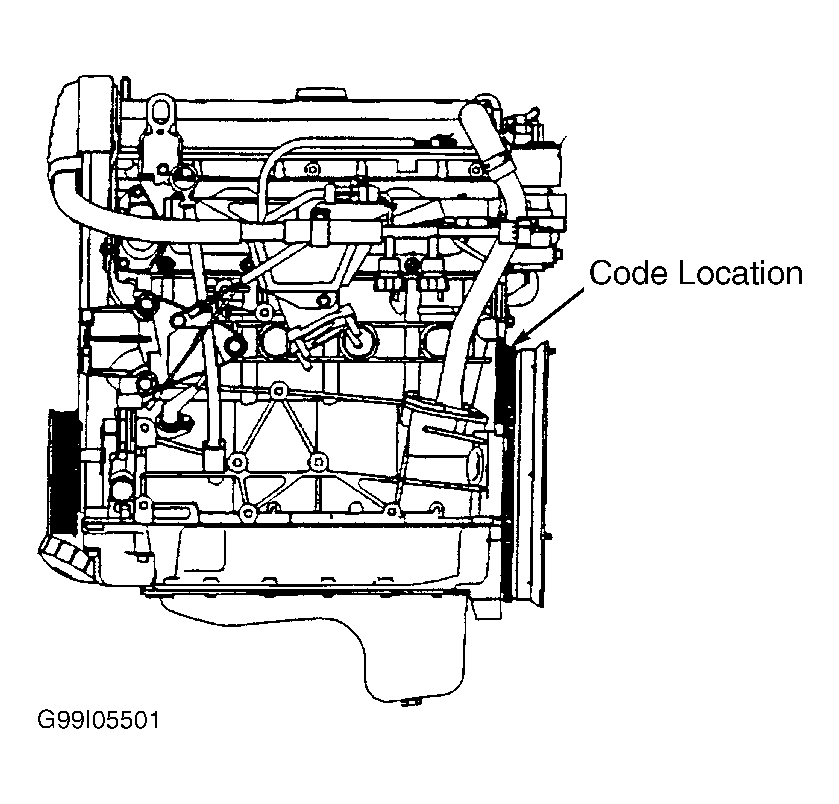

Fig 1: Locating Engine Code (2.2L)
G99I05501Courtesy of ISUZU MOTOR CO.

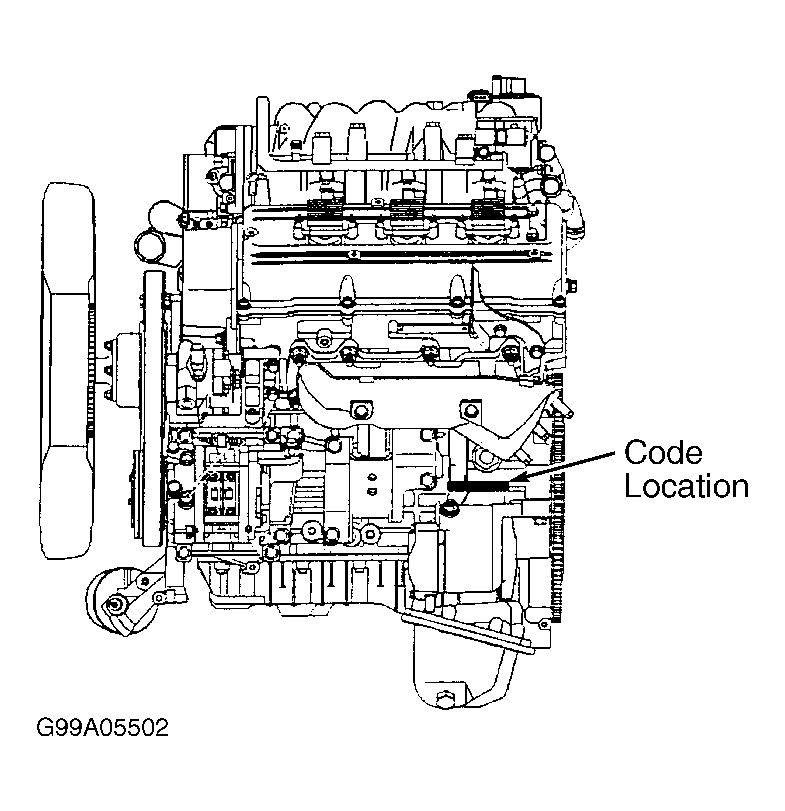

Fig 2: Locating Engine Code (3.2L & 3.5L)
G99A05502Courtesy of ISUZU MOTOR CO.

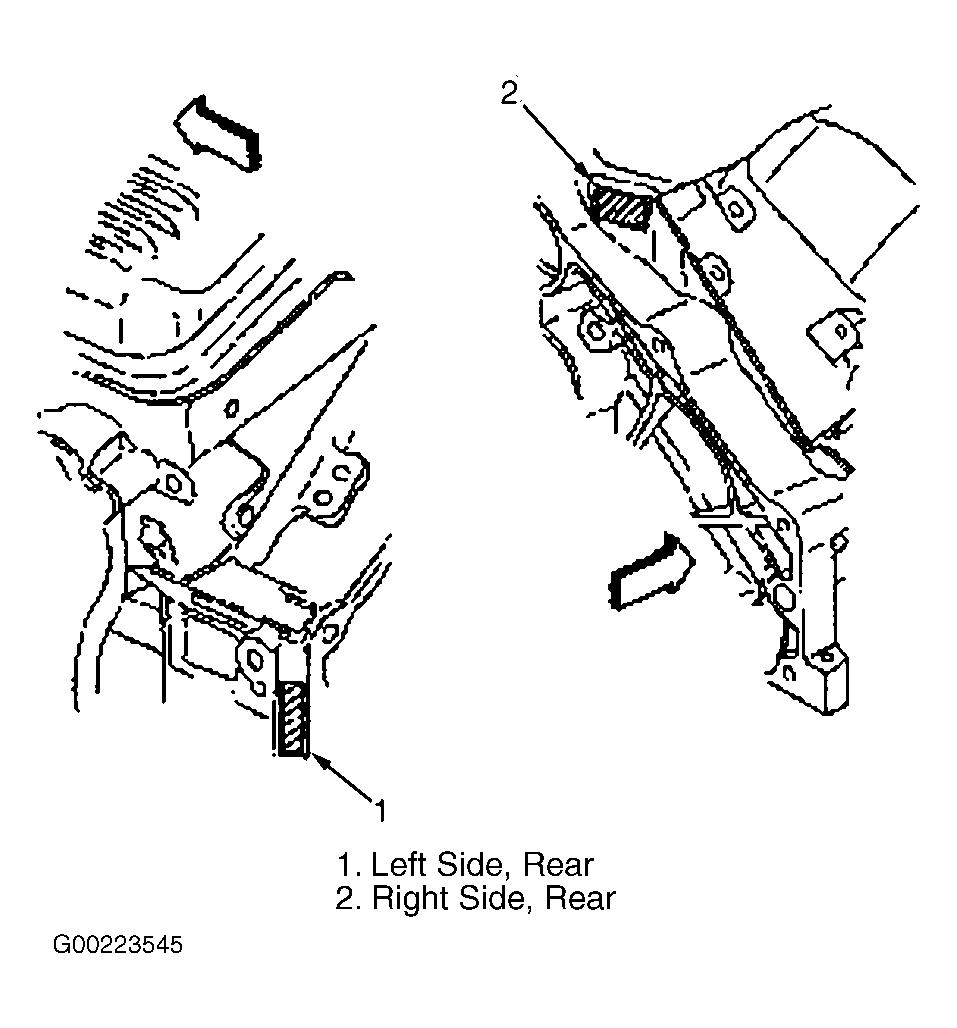

Fig 3: Locating Engine Code (4.2L & 5.3L)
G00223545Courtesy of ISUZU MOTOR CO.
