Cleaning Method

Tap the air cleaner filter gently so as not to damage the paper filter, or clean the element by blowing with compressed air of about 490 kPa (71 psi) from the clean side if it is extremely dirty.

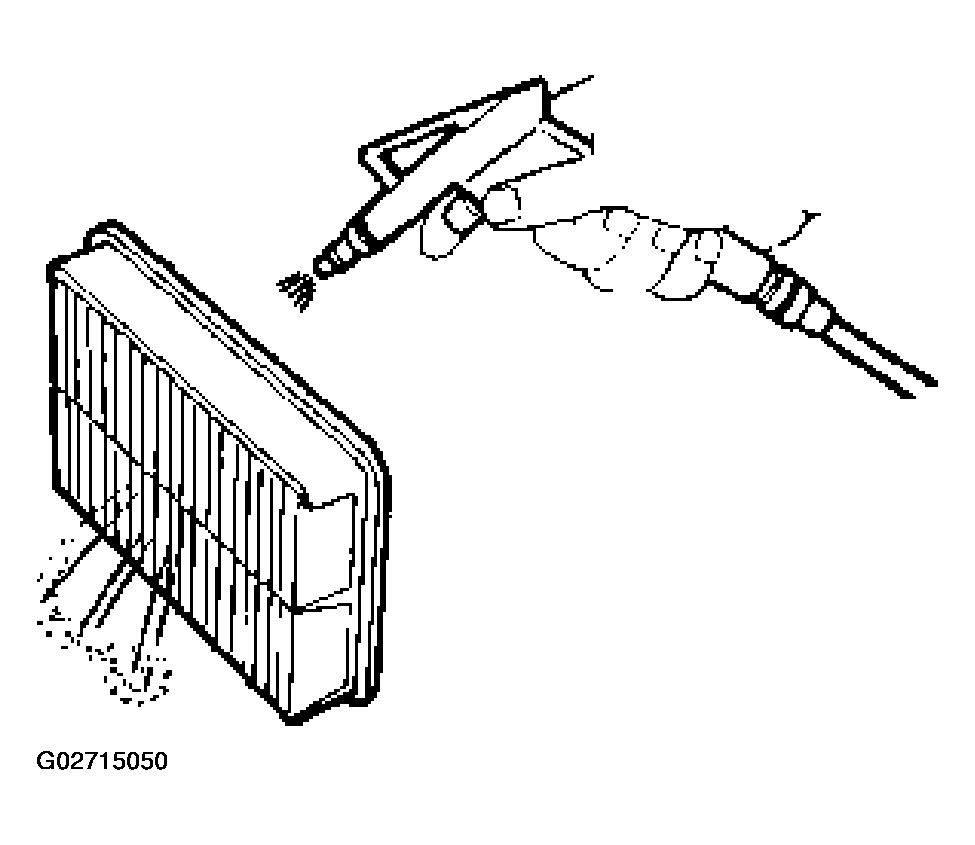

Fig 1: Cleaning Air Cleaner Element
G02715050Courtesy of ISUZU MOTOR CO.
