Air Cleaner Element: Removal

  1. Remove positive ventilation hose connector (1).
  2. Remove intake air temperature sensor (2).
  3. Remove air flow sensor (3).
  4. Remove air cleaner duct assembly (4).
  5. Remove air cleaner element (5).

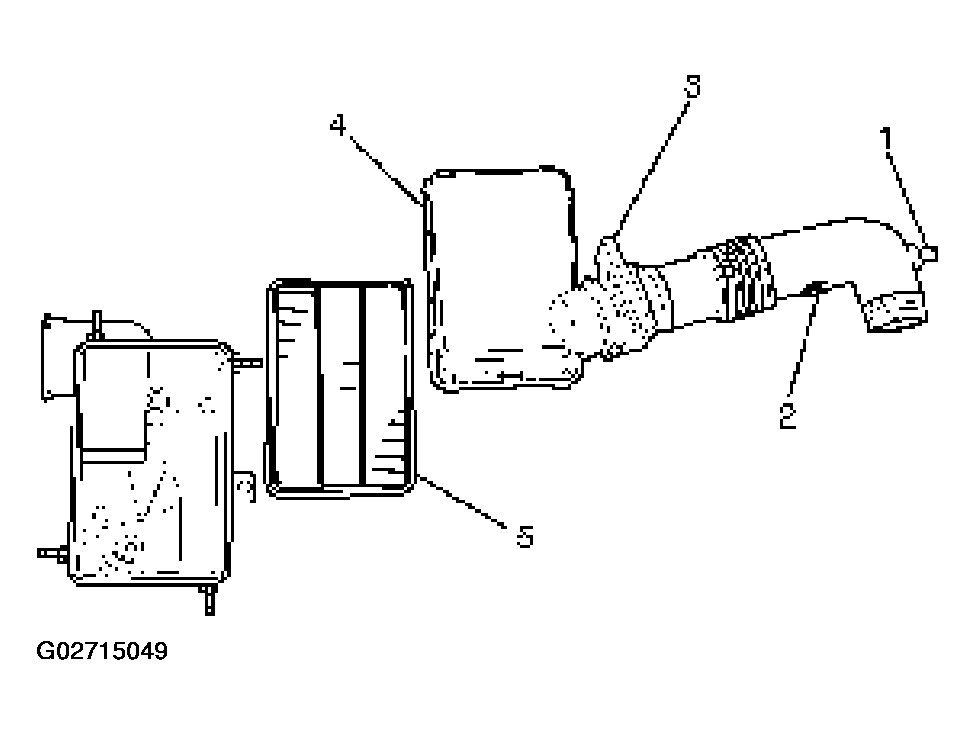

    Fig 1: Removing Air Cleaner Element
    G02715049Courtesy of ISUZU MOTOR CO.
