Diagnostic Procedure

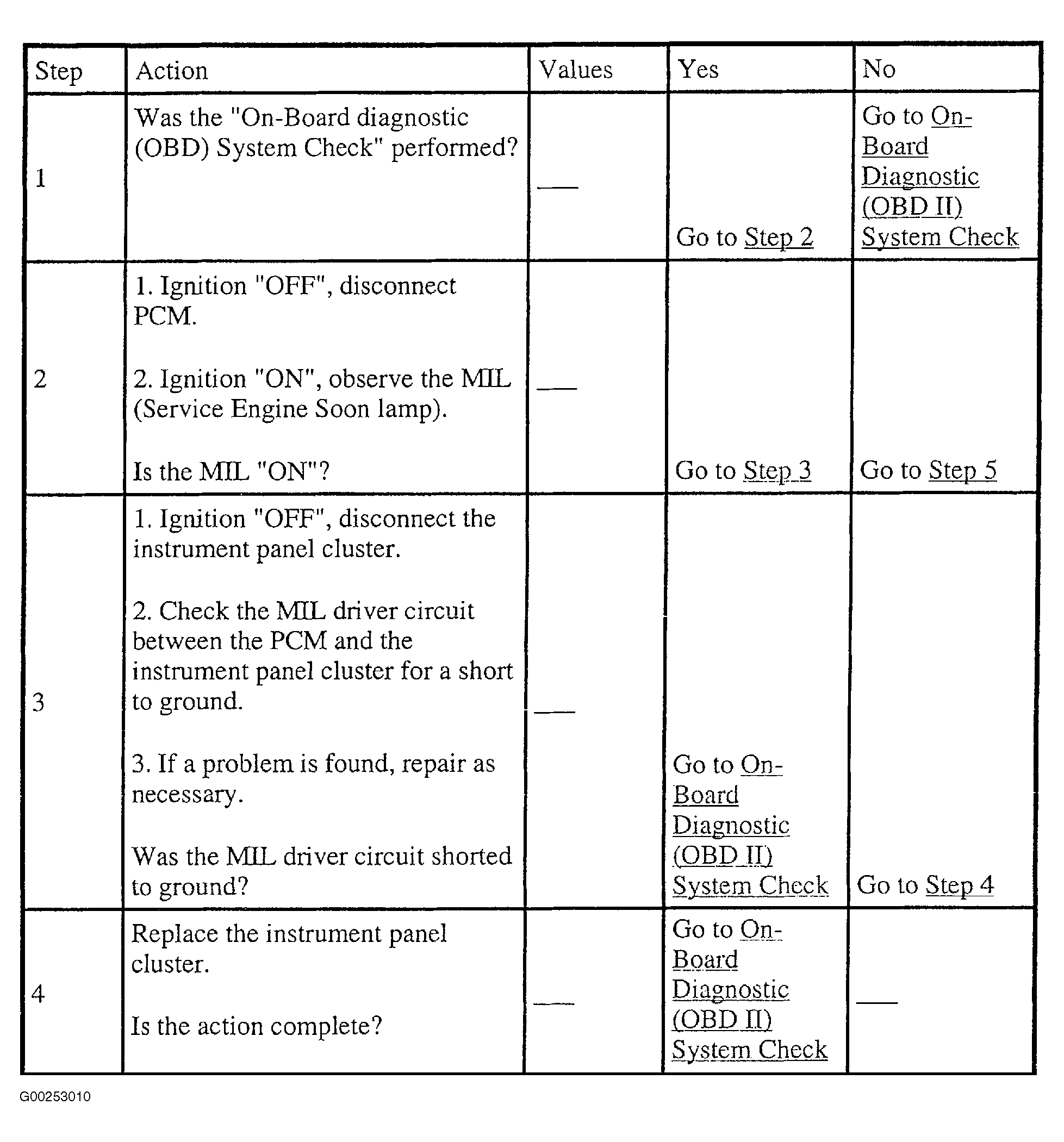

Fig 1: Malfunction Indicator Light On Steady (Steps 1-4)
G00253010Courtesy of ISUZU MOTOR CO.

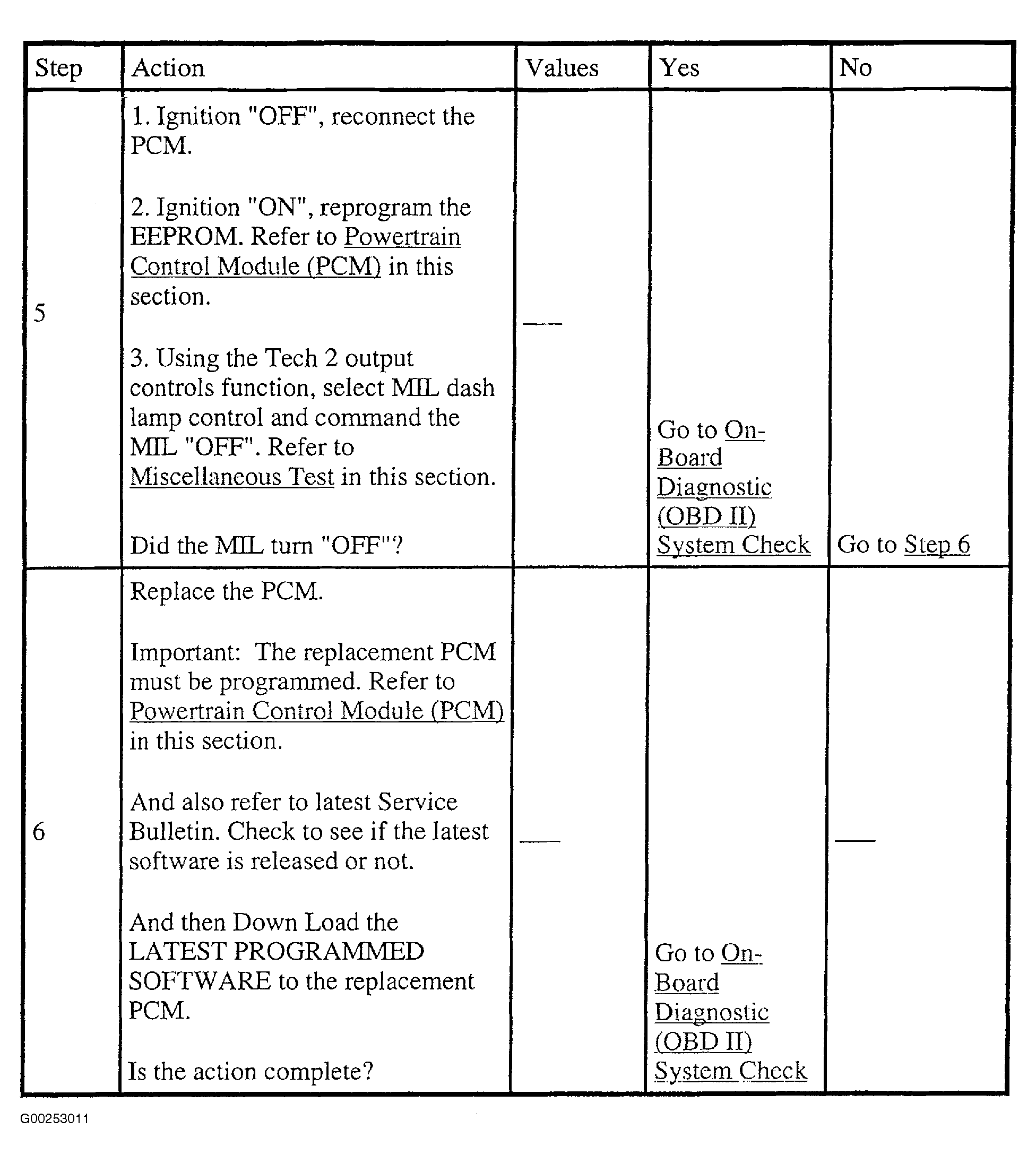

Fig 2: Malfunction Indicator Light On Steady (Steps 5 & 6)
G00253011Courtesy of ISUZU MOTOR CO.
