Diagnostic Procedure

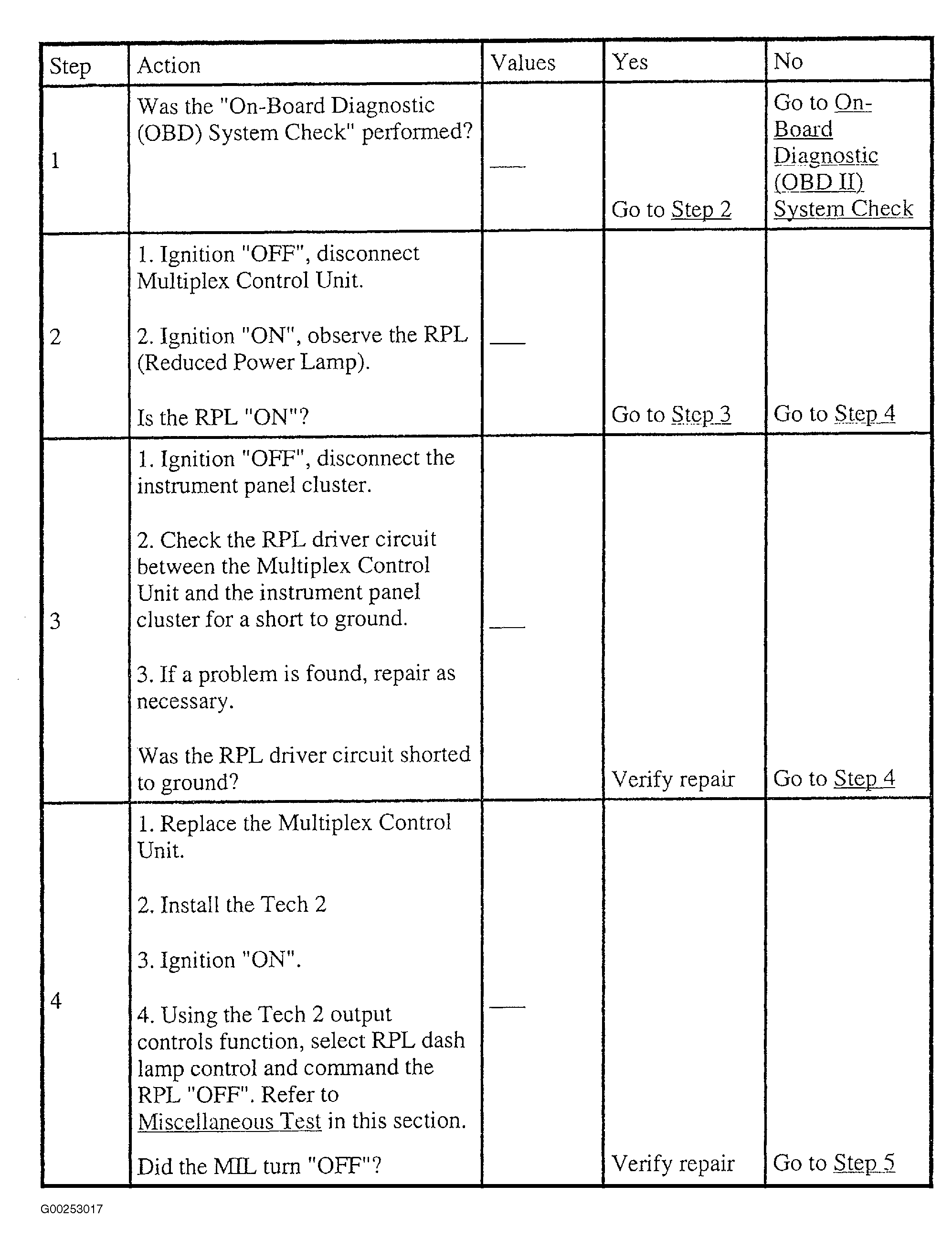

Fig 1: Reduced Power Lamp On Steady (Steps 1-4)
G00253017Courtesy of ISUZU MOTOR CO.

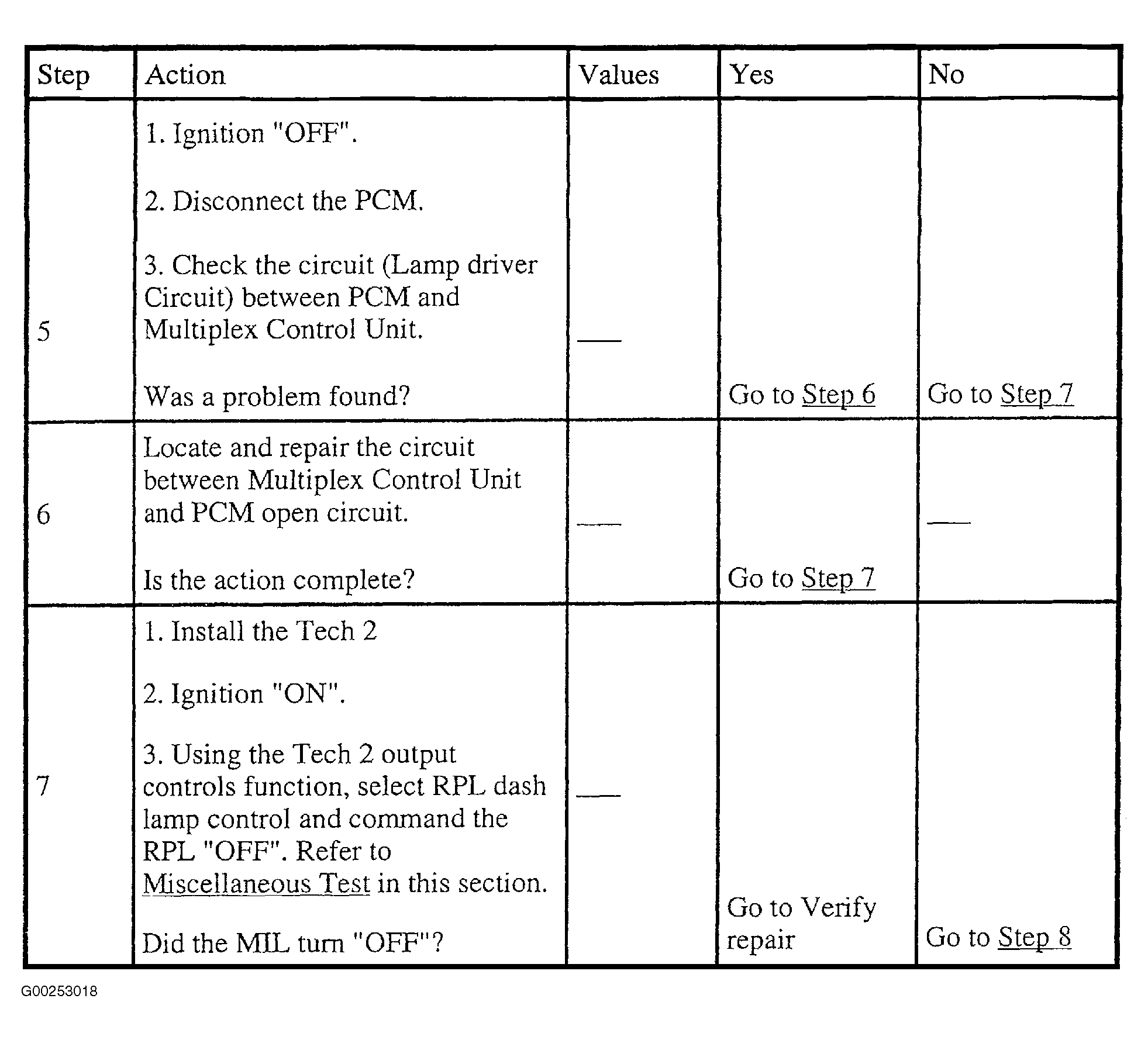

Fig 2: Reduced Power Lamp On Steady (Steps 5-7)
G00253018Courtesy of ISUZU MOTOR CO.

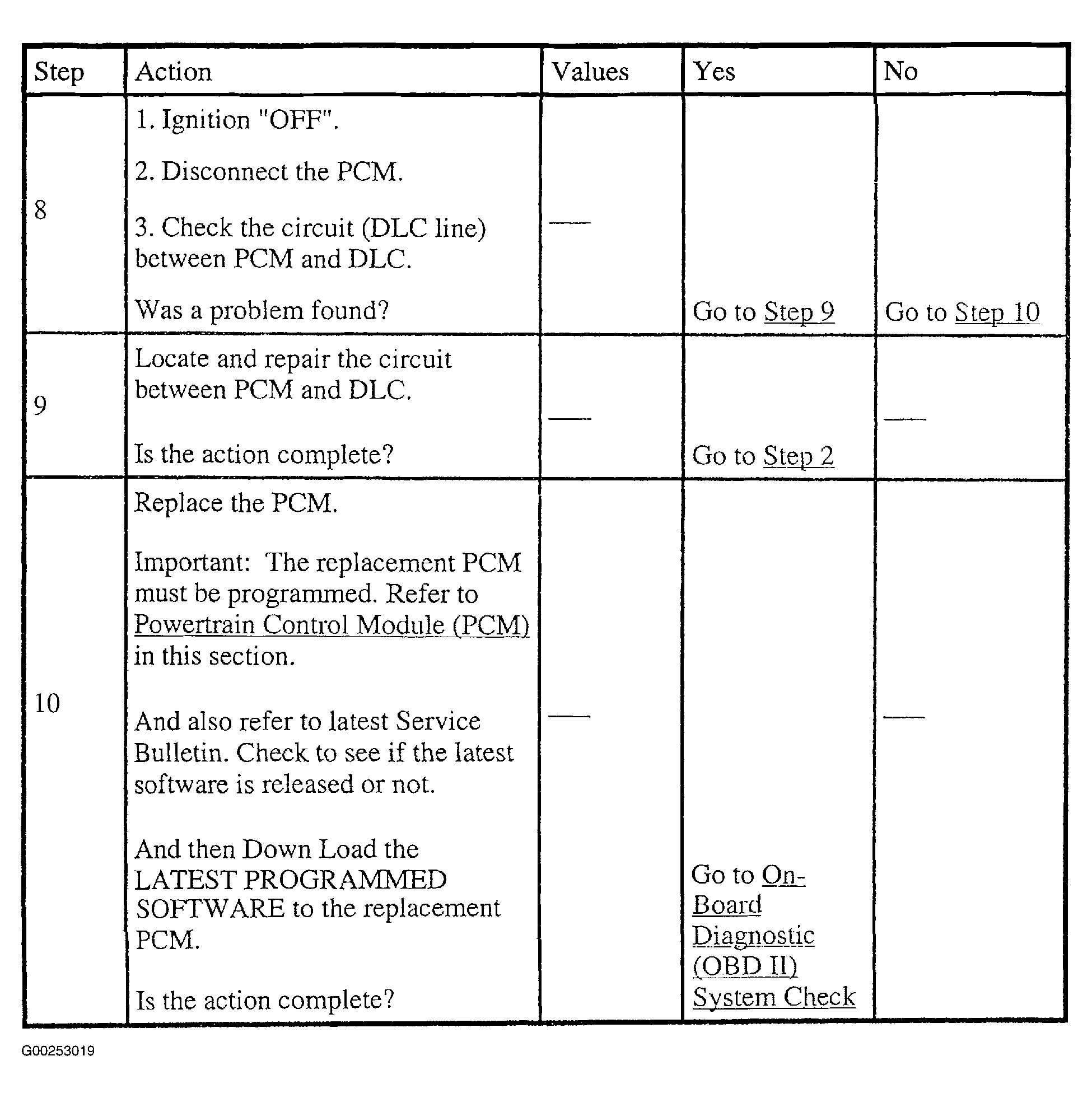

Fig 3: Reduced Power Lamp On Steady (Steps 8-10)
G00253019Courtesy of ISUZU MOTOR CO.
