DTC P0724: Brake Switch Circuit High (Stuck Off): Notes

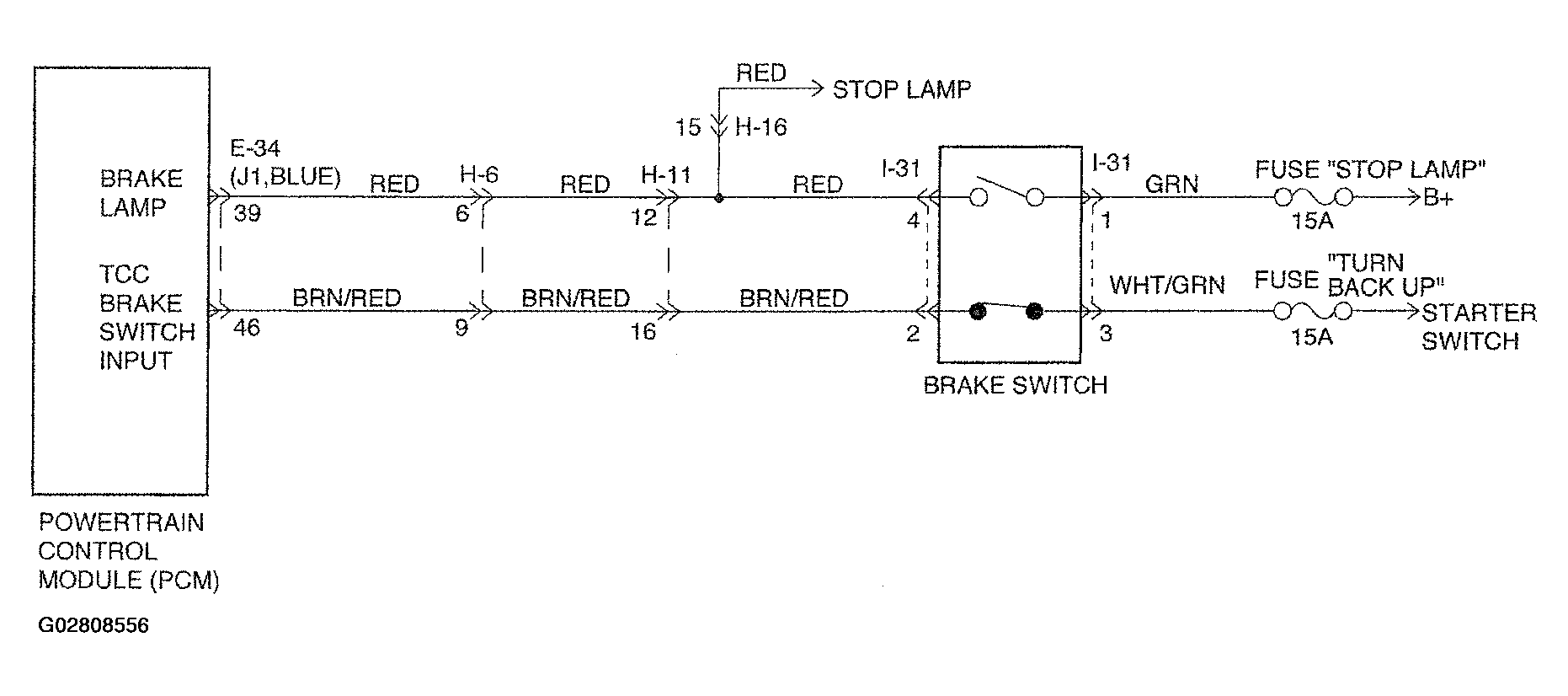

Fig 1: DTC P0724 Brake Switch Circuit High (Stuck Off) Circuit Diagram
G02808556Courtesy of ISUZU MOTOR CO.
