DTC P0753: Shift Solenoid A Electrical: Notes

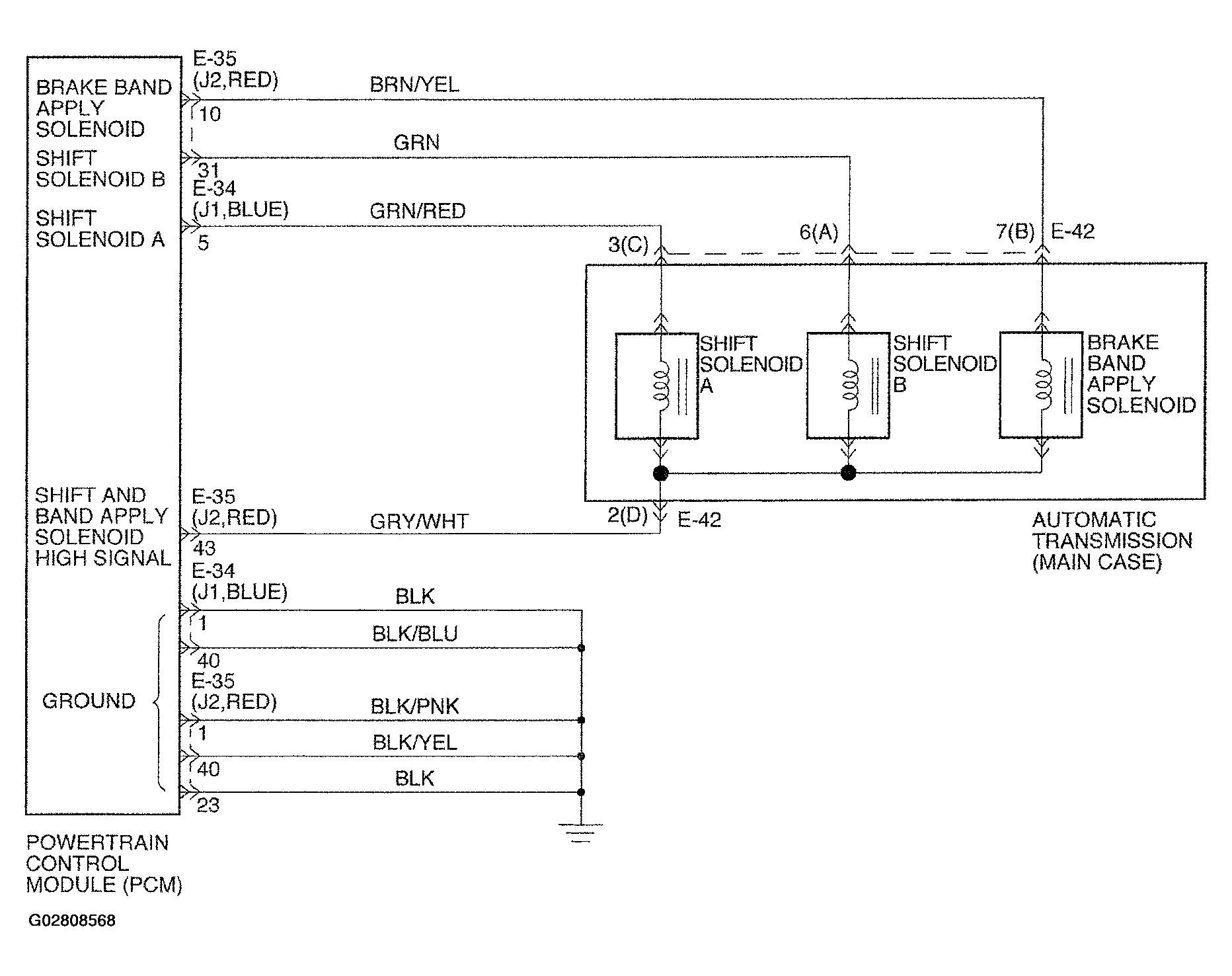

Fig 1: DTC P0753 Shift Solenoid A Electrical Circuit Diagram
G02808568Courtesy of ISUZU MOTOR CO.
