DTC P0758: Shift Solenoid B Electrical: Notes

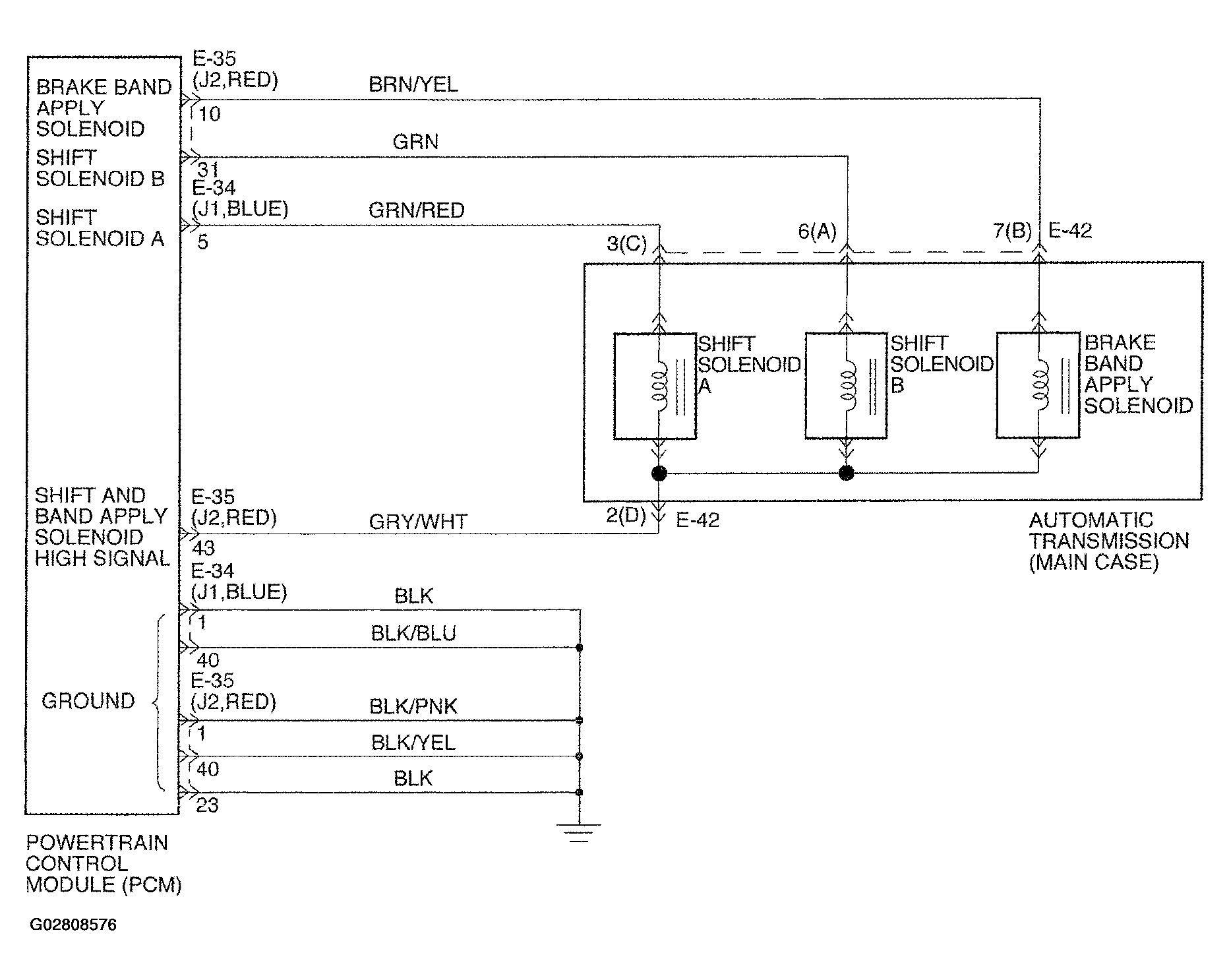

Fig 1: DTC P0758 Shift Solenoid B Electrical Circuit Diagram
G02808576Courtesy of ISUZU MOTOR CO.
