Functions of Input / Output Components

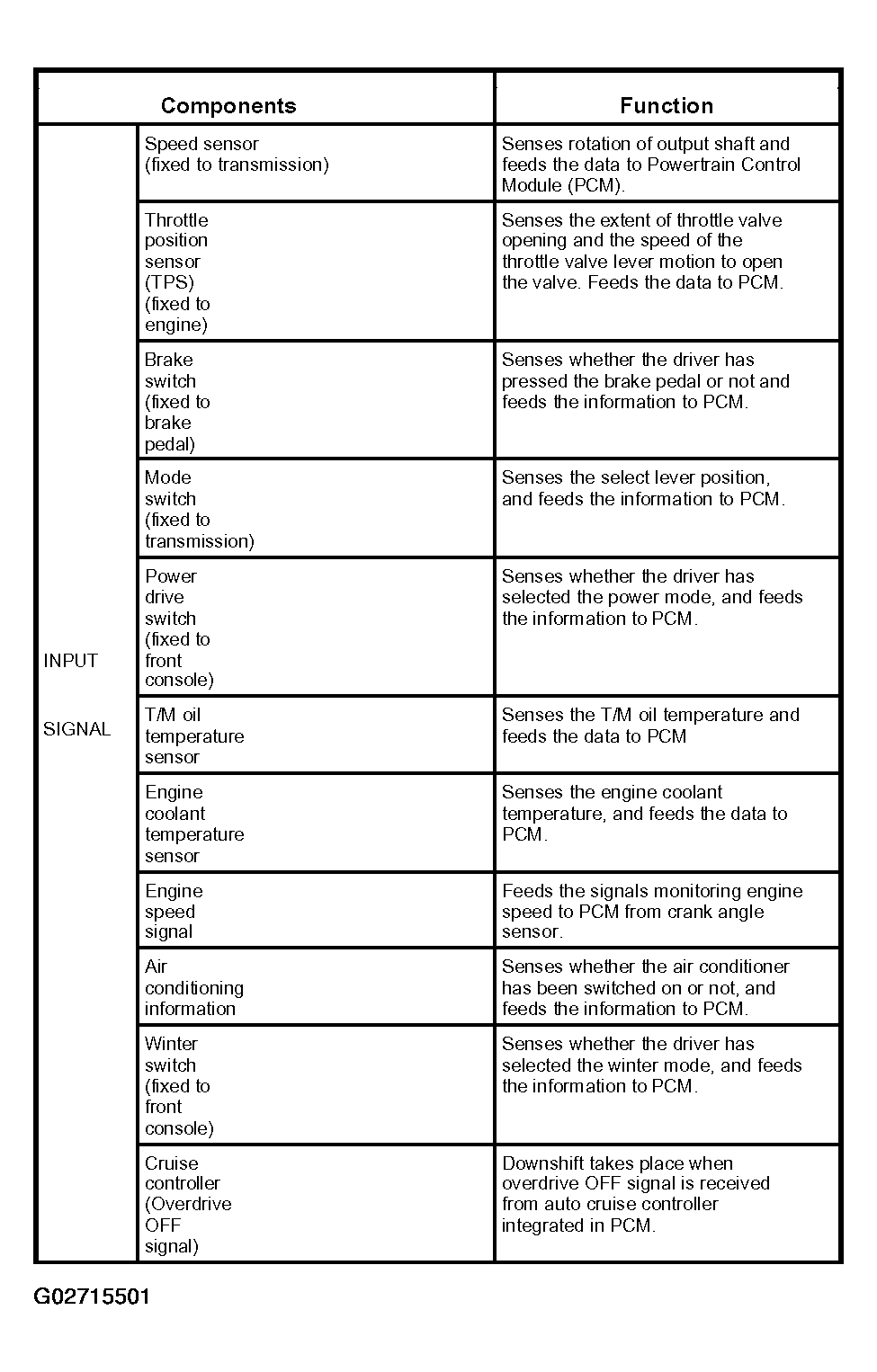

Fig 1: Input Components Functions Table
G02715501Courtesy of ISUZU MOTOR CO.

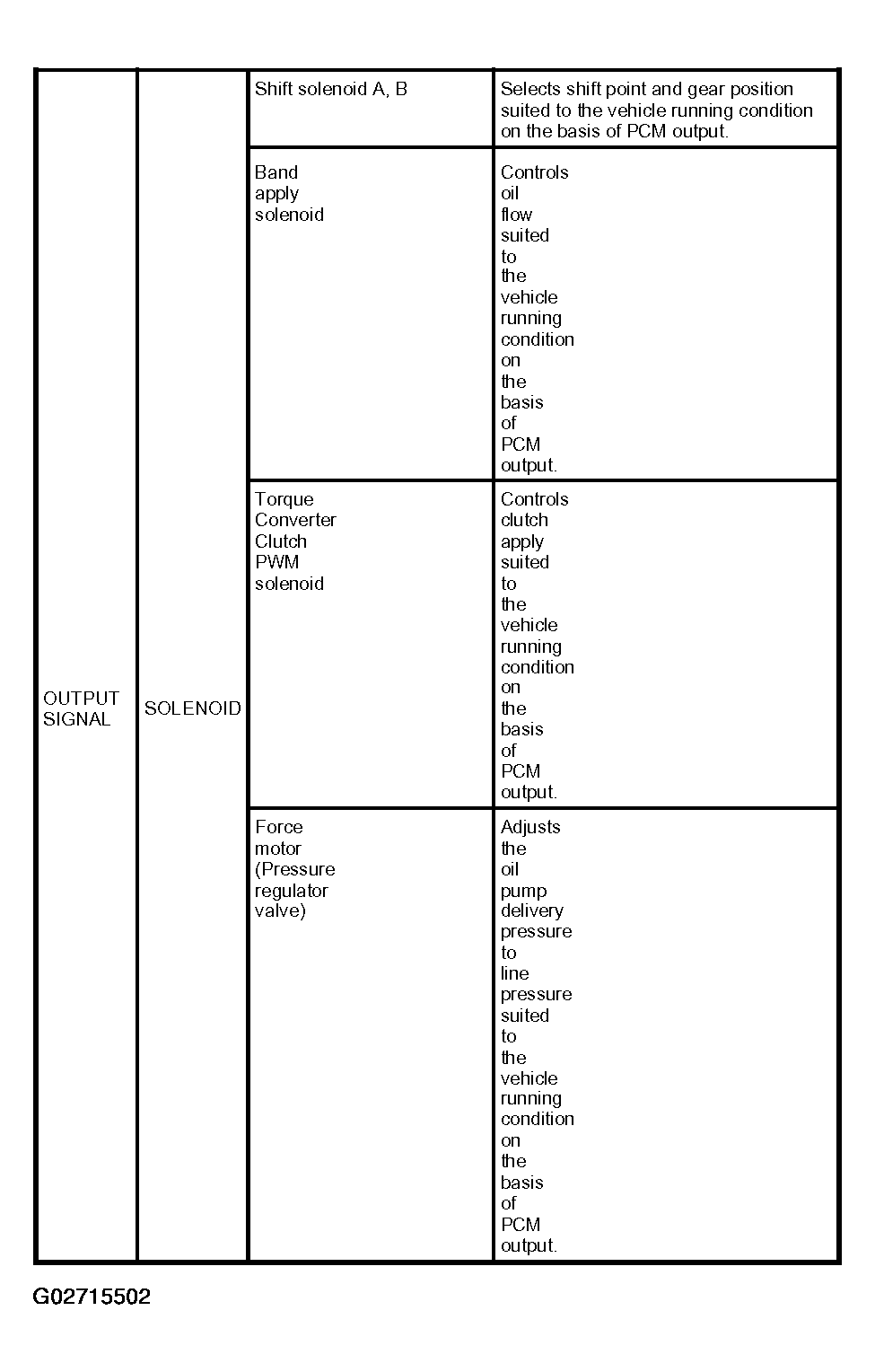

Fig 2: Output Components Functions Table
G02715502Courtesy of ISUZU MOTOR CO.
