Gear Shift Control

Shift pattern

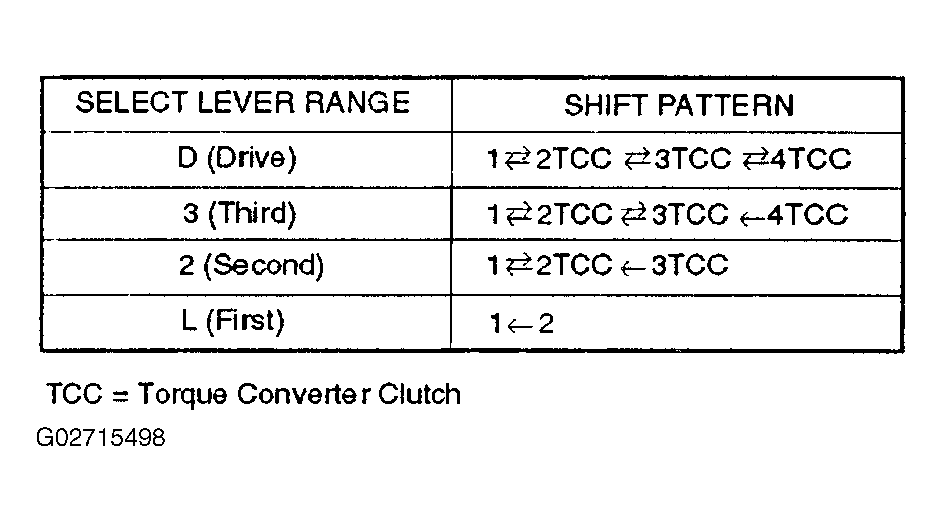

Fig 1: Gear Shift Control - Shift Pattern
Courtesy of ISUZU MOTOR CO.
Gear position
The gears selected by ON/OFF of two solenoids.

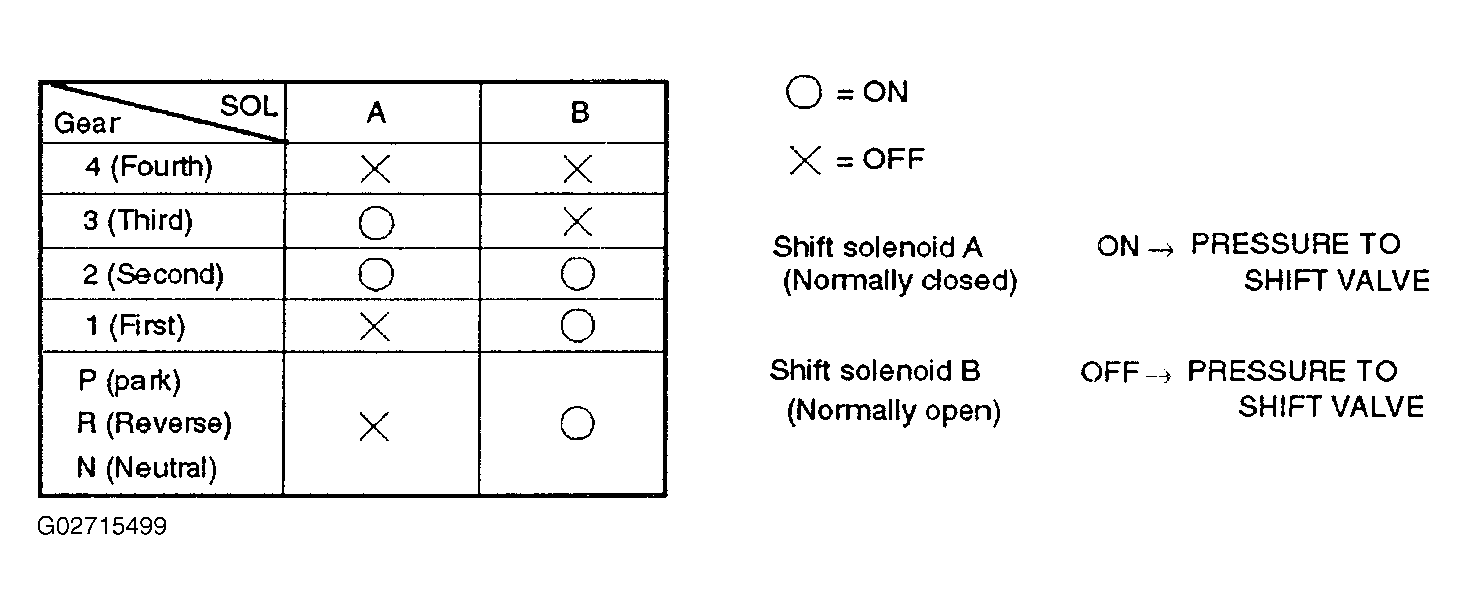

Fig 2: Gear Shift Control - Gear Position
Courtesy of ISUZU MOTOR CO.
Selecting gear position
Seven types of positions can be selected according to 5 signals from the mode switch as below.

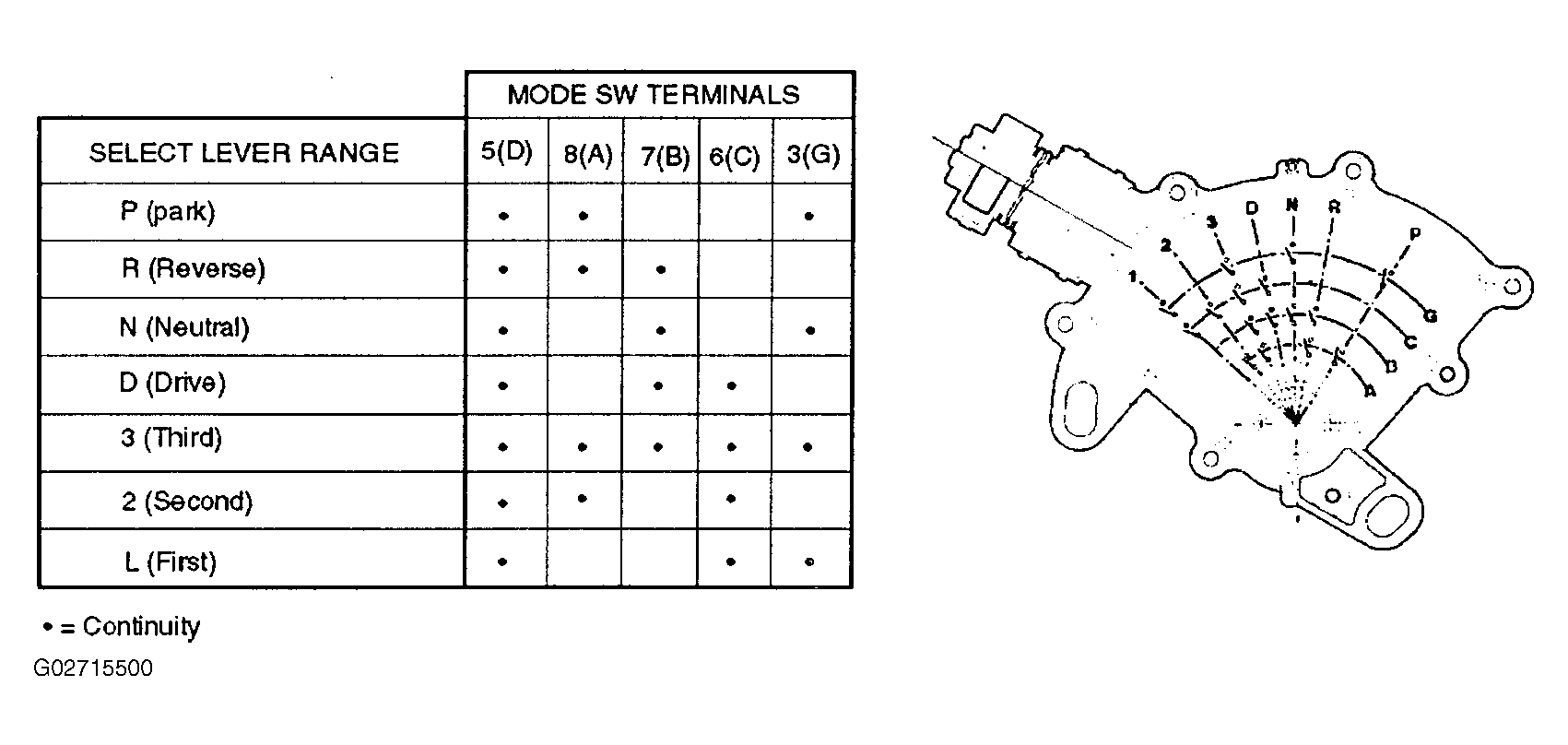

Fig 3: Gear Shift Control - Selecting Gear Position

Courtesy of ISUZU MOTOR CO.
