Select Cable: Removal

  1. Pull the hand parking brake.
  2. Set selector lever in "R" position.
  3. Remove knee pads, cluster upper cover, center cluster assembly, rear console, front console, selector lever knob and cover assembly.
  4. Disconnect inner cable by pulling projection on pin.

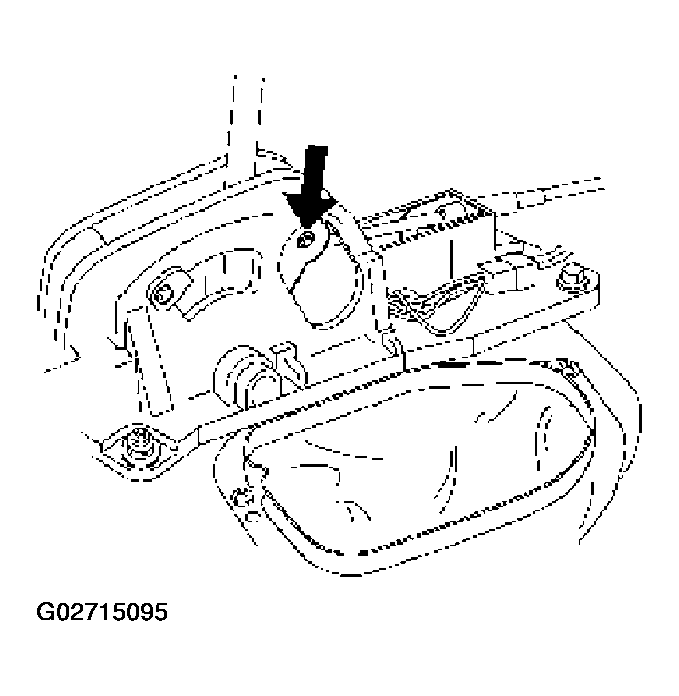

    Fig 1: Disconnecting Inner Cable By Pulling Projection On Pin
    G02715095Courtesy of ISUZU MOTOR CO.
  5. Press down claws and disconnect cable assembly.
    Fig 2: Disconnecting Cable Assembly
    G02808353Courtesy of ISUZU MOTOR CO.
  6. Remove nuts that fasten grommet in select cable assembly.
  7. Disconnect inner cable.

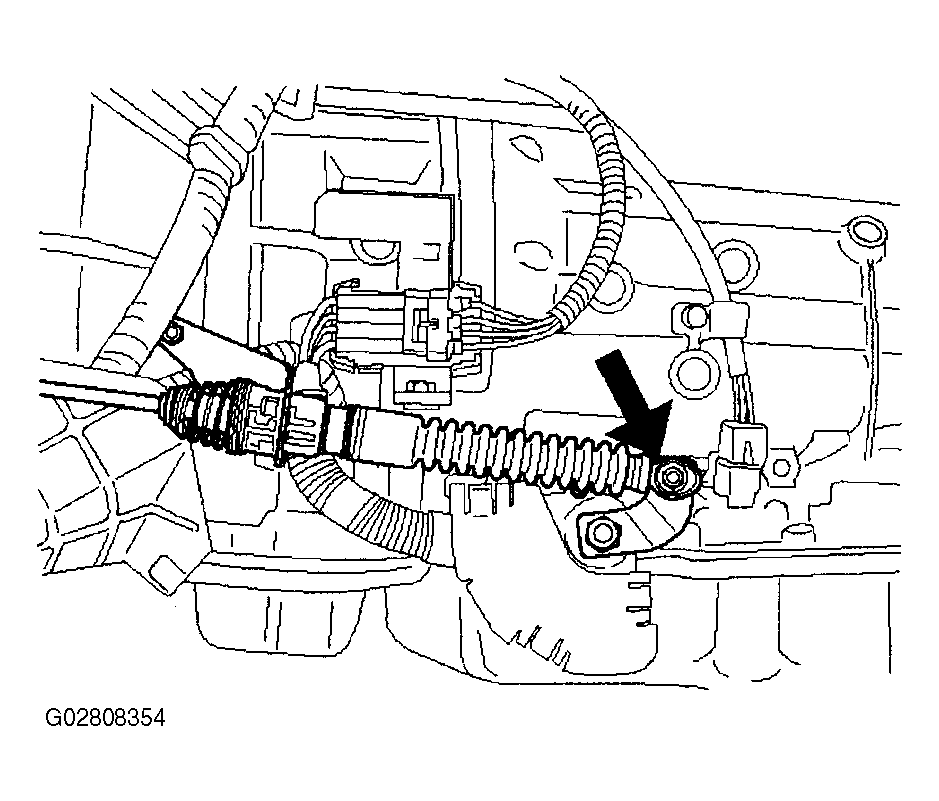

    Fig 3: Disconnecting Inner Cable
    G02808354Courtesy of ISUZU MOTOR CO.
  8. Slide sleeve and disconnect cable assembly.

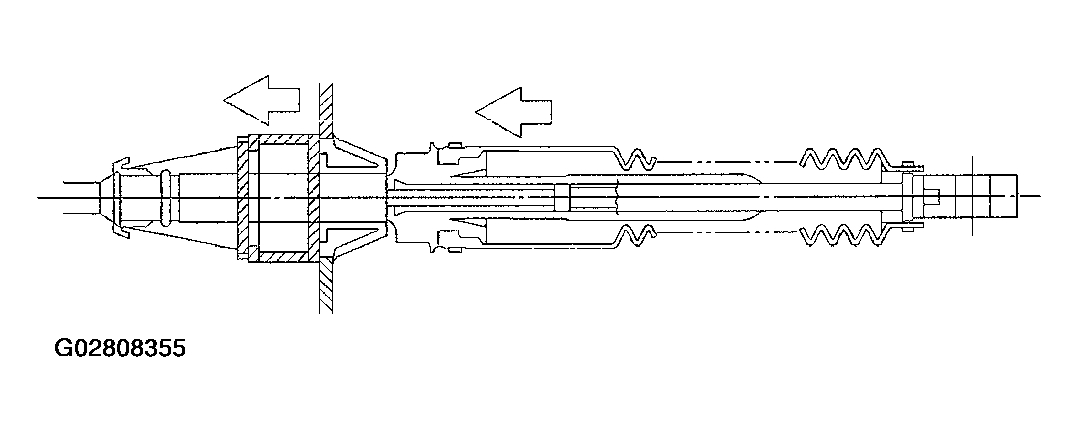

    Fig 4: Sliding Sleeve And Disconnect Cable Assembly
    G02808355Courtesy of ISUZU MOTOR CO.
  9. Pull lock.

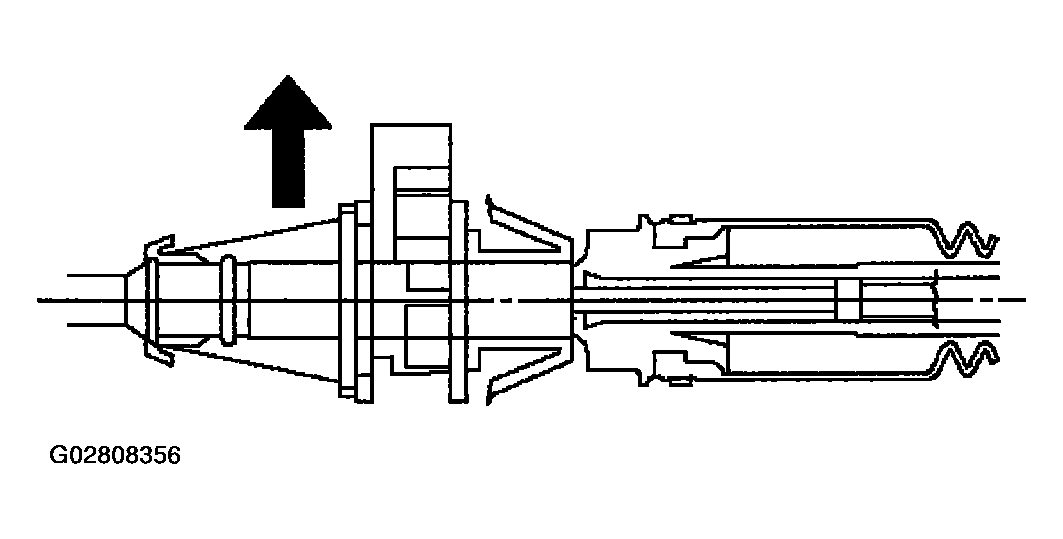

    Fig 5: Pulling Lock
    G02808356Courtesy of ISUZU MOTOR CO.
  10. Draw select cable assembly into the interior side.
