Valve Body Assembly (Main Case): Installation

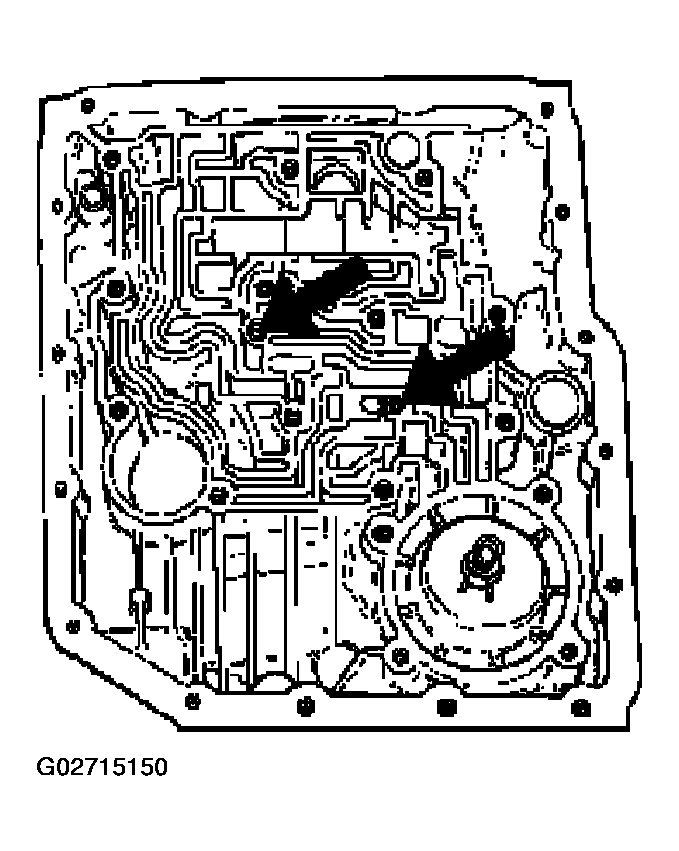

- Install two check balls to main case.
- Inspect electrical 7 way connector and seal of main case. Replace if necessary.
- Use two J-25025-B guide pin to install main case.

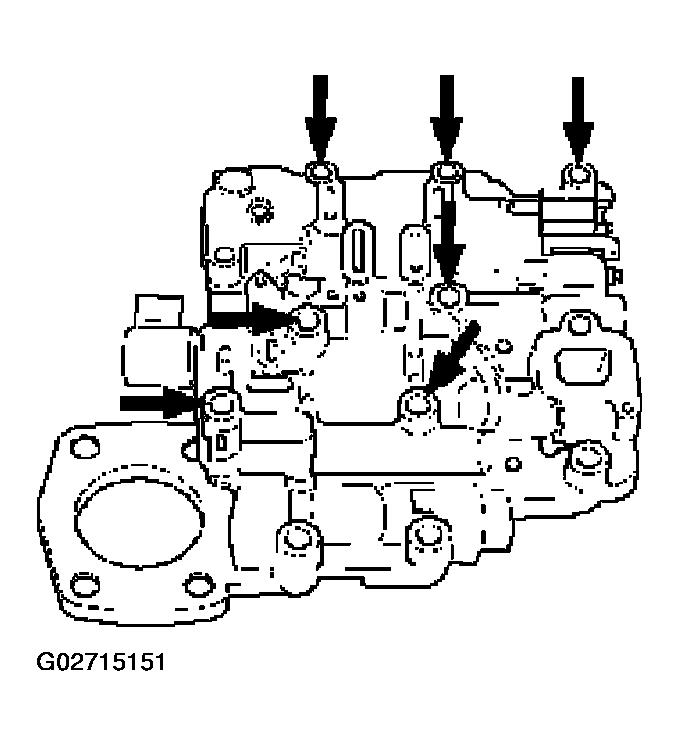

- Install valve body assembly and manual valve link.
NOTE: Valve must be extended as the short end of manual valve link is connected to the range selector lever. Long end of link goes into valve. - Install seven 13 mm screws, and tighten them to the specified torque.
Torque: 20 N.m (15 lb ft)
- Remove two guide pins from main case.
- Install servo cover gasket, cover, and four 13 mm screws. Tighten the screws to the specified torque.
Torque: 25 N.m (18 lb ft)
- Connect wiring harness to band control and shift solenoids.
- Install roller and spring assembly to manual detent.
- Install two 13 mm screws, and tighten them to the specified torque.
Torque: 20 N.m (15 lb ft)
- Install oil filter and three 13 mm screws. Tighten the screws to the specified torque.
Torque: 20 N.m (15 lb ft)
- Install oil pan gasket, magnet, oil pan and sixteen 10 mm screws. Tighten the screws to the specified torque.
Torque: 11 N.m (96 lb in)
- Install third crossmember and rear mount. Tighten the bolts and nuts to the specified torque. Torque
Third crossmember bolt: 116 N.m (85 lb ft)
Rear mount nut: 50 N.m (37 lb ft)
- Install transfer protector. Tighten the bolts to the specified torque (4x4).
Torque: 37 N.m (27 lb ft)
- Fill transmission through overfill screw hole of oil pan, using ATF DEXRON®-III. Refer to CHANGING TRANSMISSION FLUID .
- Connect battery ground cable.
