Connector Pin Assignment

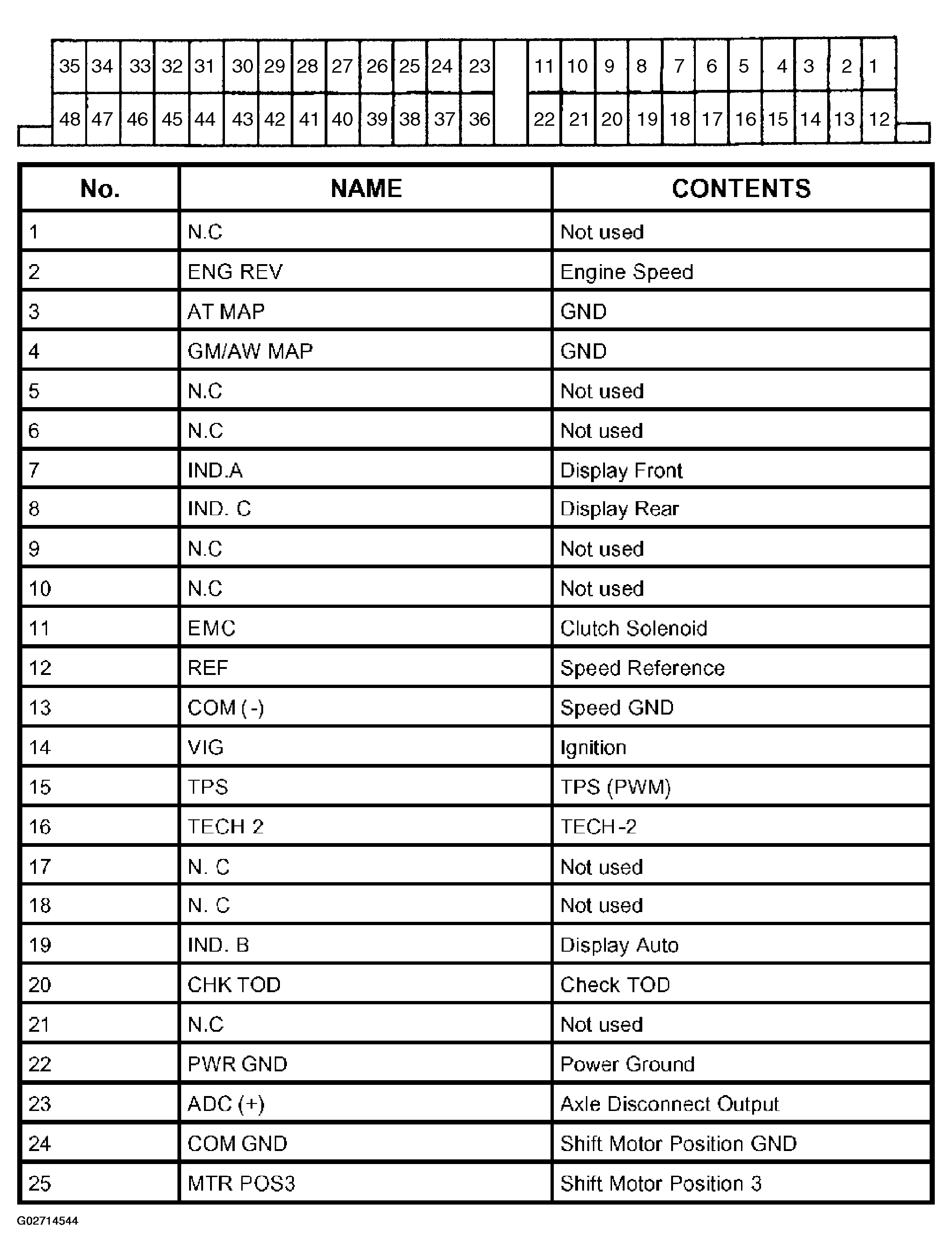

Fig 1: Connector Pin Assignment Chart (1 Of 2)
G02714544Courtesy of ISUZU MOTOR CO.

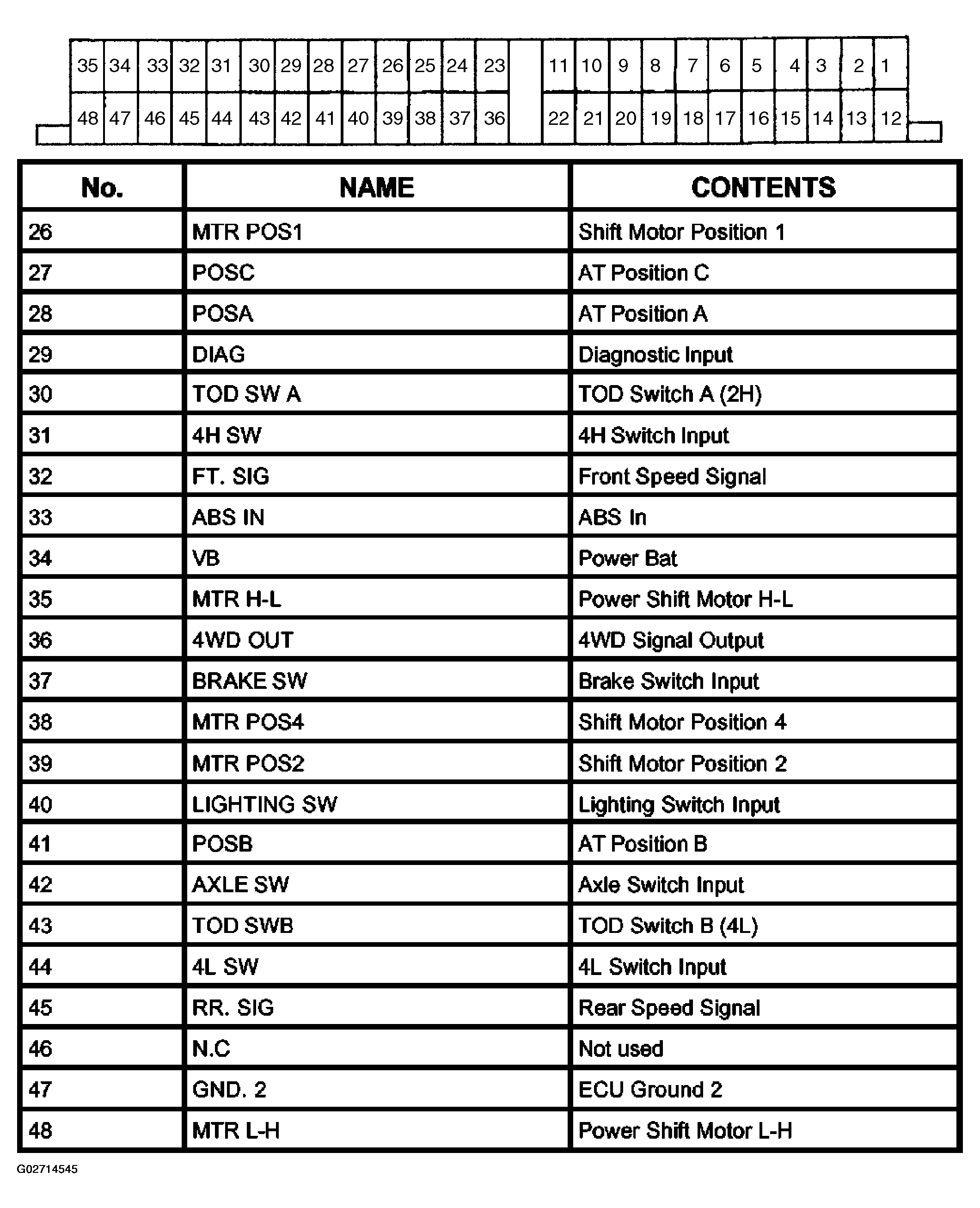

Fig 2: Connector Pin Assignment Chart (2 Of 2)
G02714545Courtesy of ISUZU MOTOR CO.
