Checking Failed Tod Control Unit Pin: Notes

NOTE:

Unplug the ECU connector and the pins, unless otherwise specified.
Before removing the ECU, turn off the ignition switch.
If the standard values are not observed, check the pins with other testers.

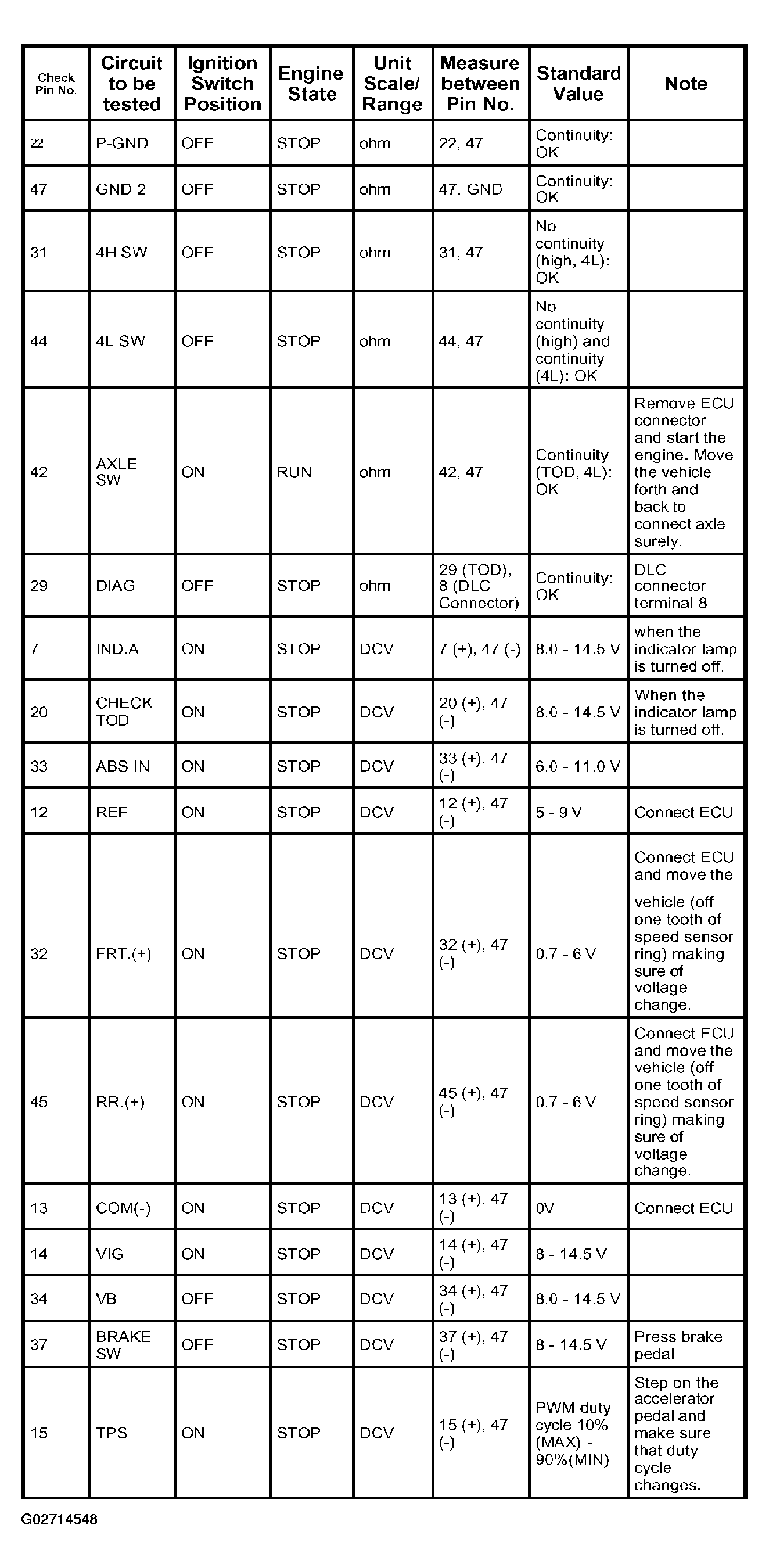

Fig 1: TOD Control Unit Pin Measurement & Standard Value Chart (1 Of 2)

G02714548

Courtesy of ISUZU MOTOR CO.

Fig 2: TOD Control Unit Pin Measurement & Standard Value Chart (2 Of 2)

G02714549

Courtesy of ISUZU MOTOR CO.
