Front and Rear Speed Sensors

The sensors are built in the transfer case, and detect the rotation of rotors directly coupled to the propeller shafts. Thirty rectangular pulses are output per one rotation of the propeller shaft.

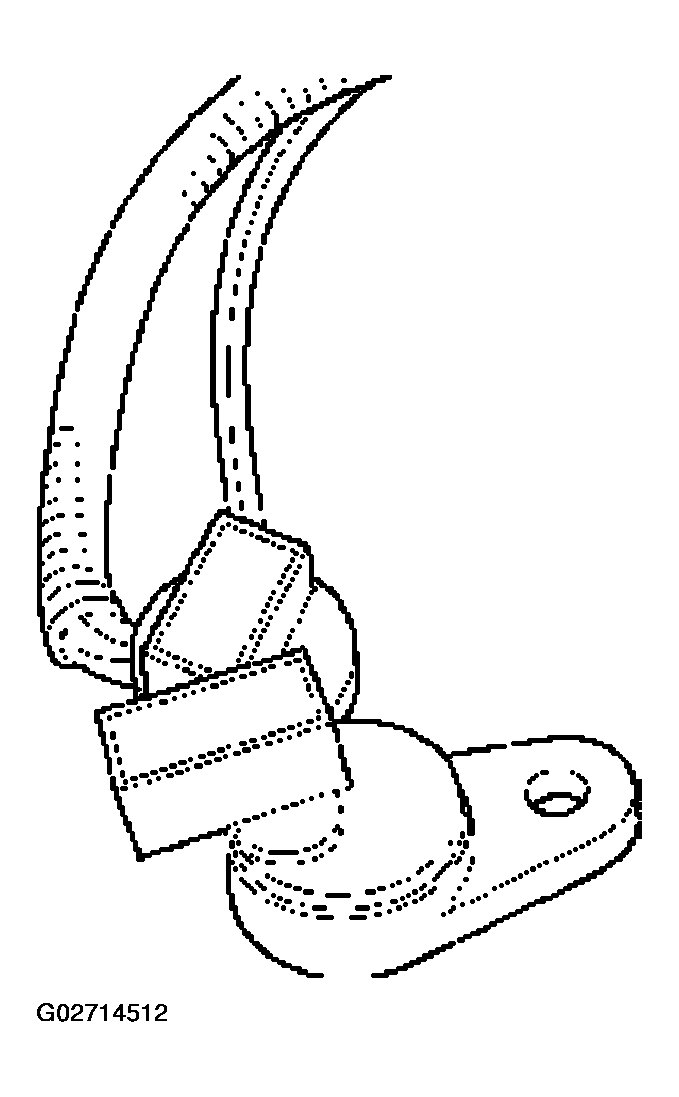

Fig 1: Identifying Front & Rear Speed Sensors

Courtesy of ISUZU MOTOR CO.
