Circuit Diagram

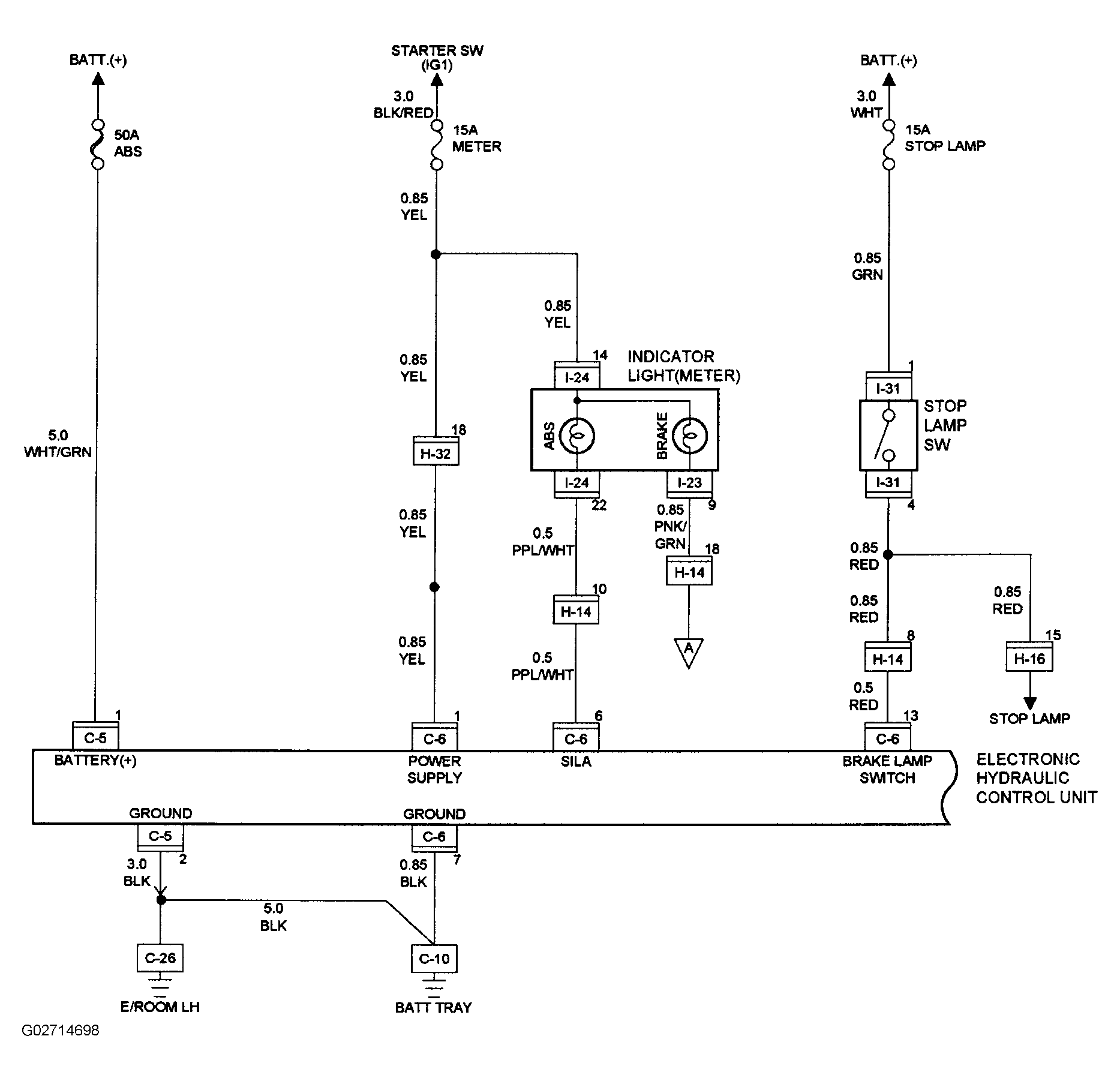

Fig 1: EHCU Connector Circuit Diagram (1 Of 3)
G02714698Courtesy of ISUZU MOTOR CO.

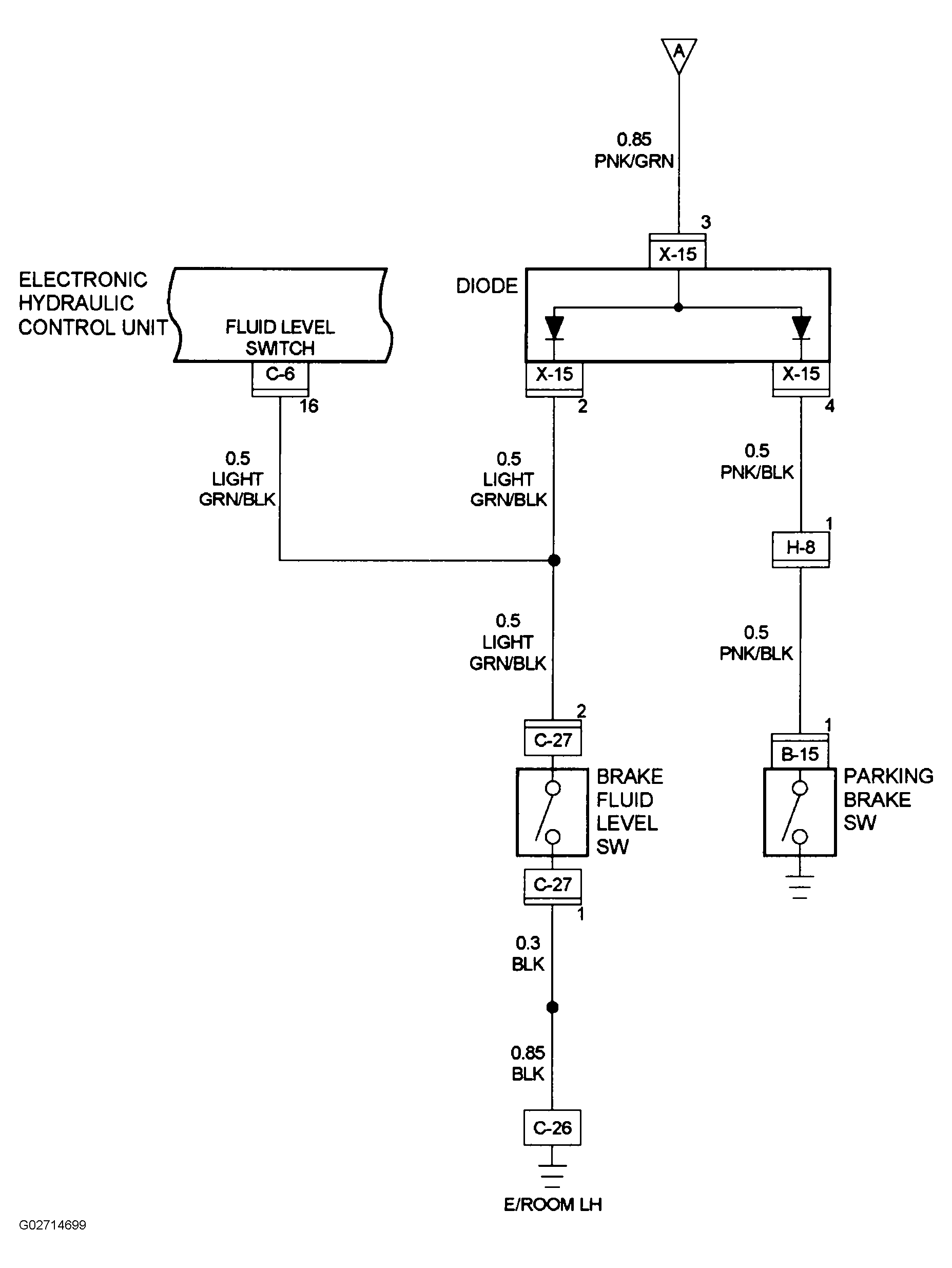

Fig 2: EHCU Connector Circuit Diagram (2 Of 3)
G02714699Courtesy of ISUZU MOTOR CO.

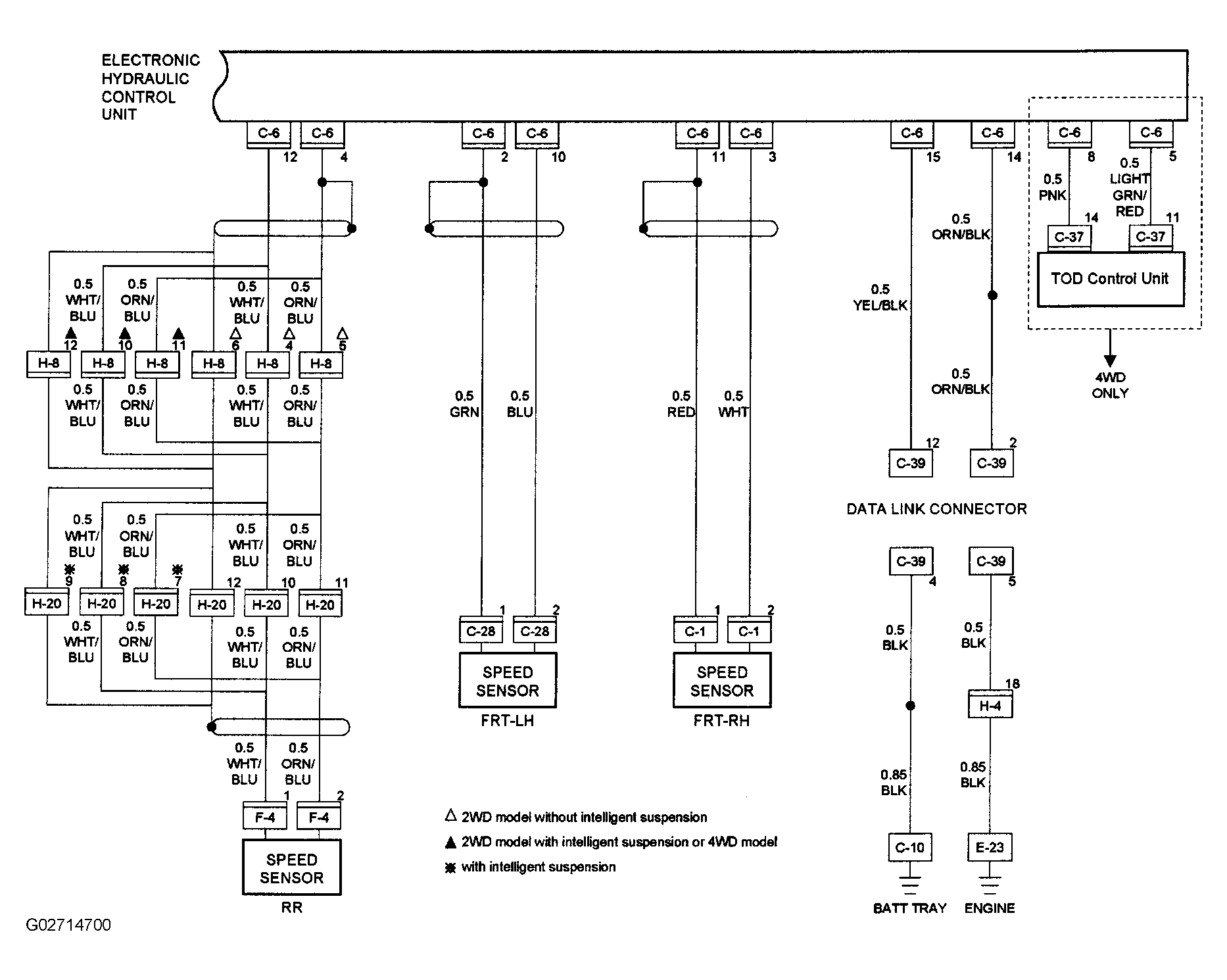

Fig 3: EHCU Connector Circuit Diagram (3 Of 3)
G02714700Courtesy of ISUZU MOTOR CO.
