Basic Diagnostic Flow Chart

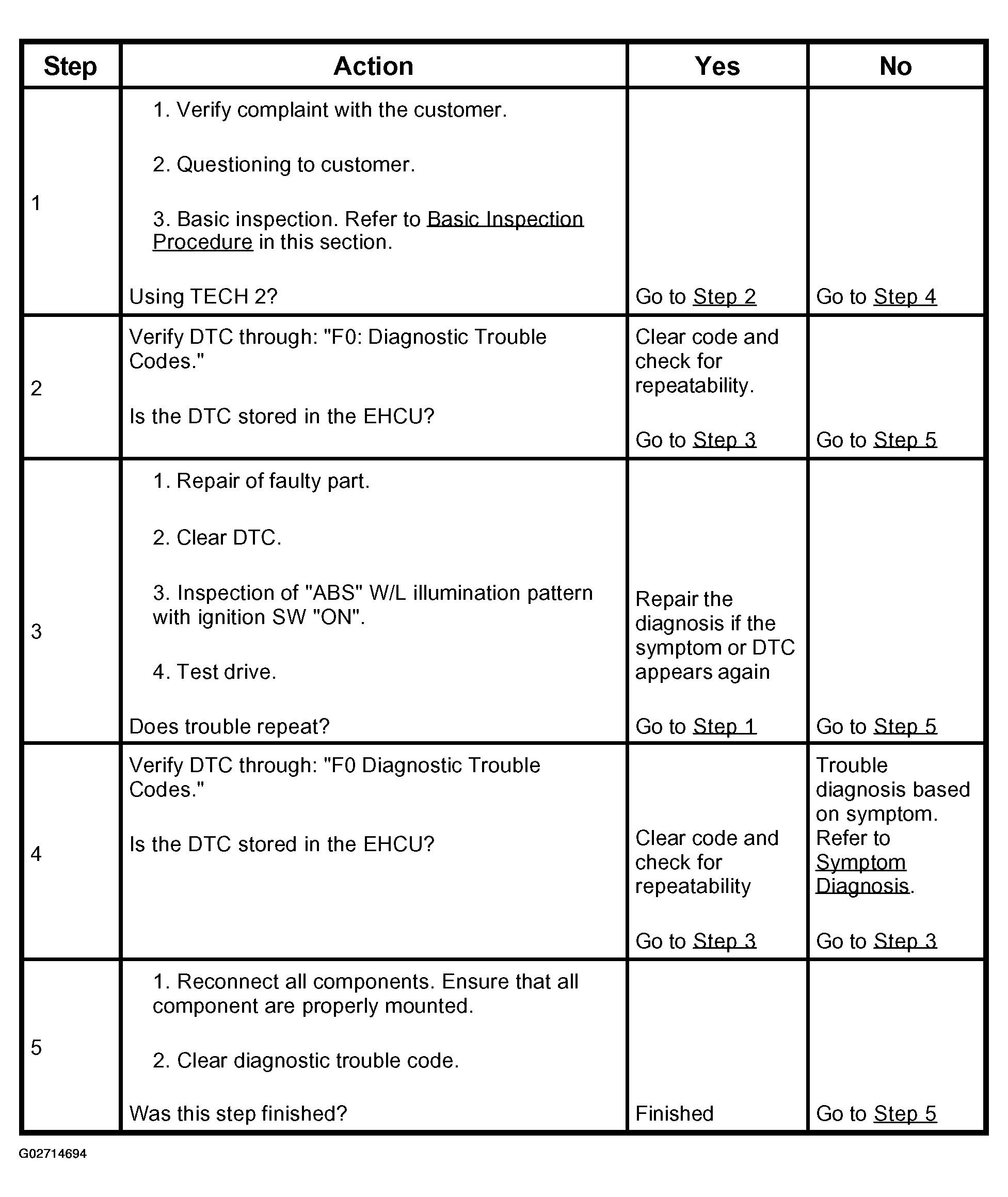

Fig 1: Basic Diagnostic Flow Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
