Fuel Filler Cap: General Description

A vacuum valve and pressure valve are built into the fuel filler cap which adjusts the fuel pressure in the fuel tank to prevent fuel tank damage.

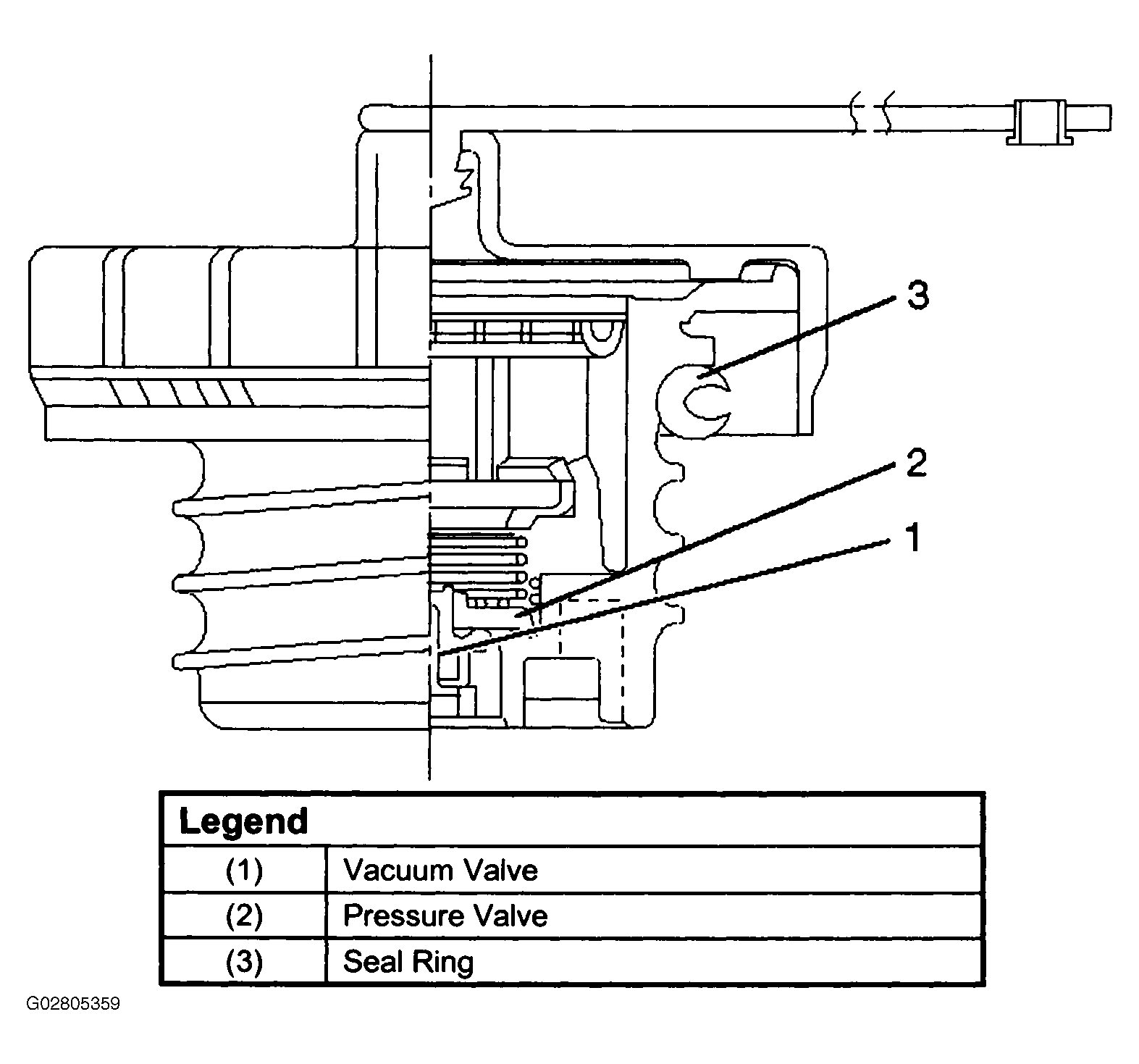

Fig 1: Identifying Fuel Filler Cap
G02805359Courtesy of ISUZU MOTOR CO.
