Ignition Coil: Installation

Install the ignition coil assembly (3).
Connect ignition coil connector (1) and ignition coil (3), then tighten bolt (2) to the specified torque.

Torque: 4 N.m (35 lb in)

Fig 1: Identifying Ignition Coil Connector & Ignition Coil Assemblies Fasteners
Courtesy of ISUZU MOTOR CO.

CAUTION: Ignition coil assembly #6 is different from ignition coil assembly from #1 to #5. Ignition coil assembly #6 is short type. So, note it when installing ignition coil assembly of #6.

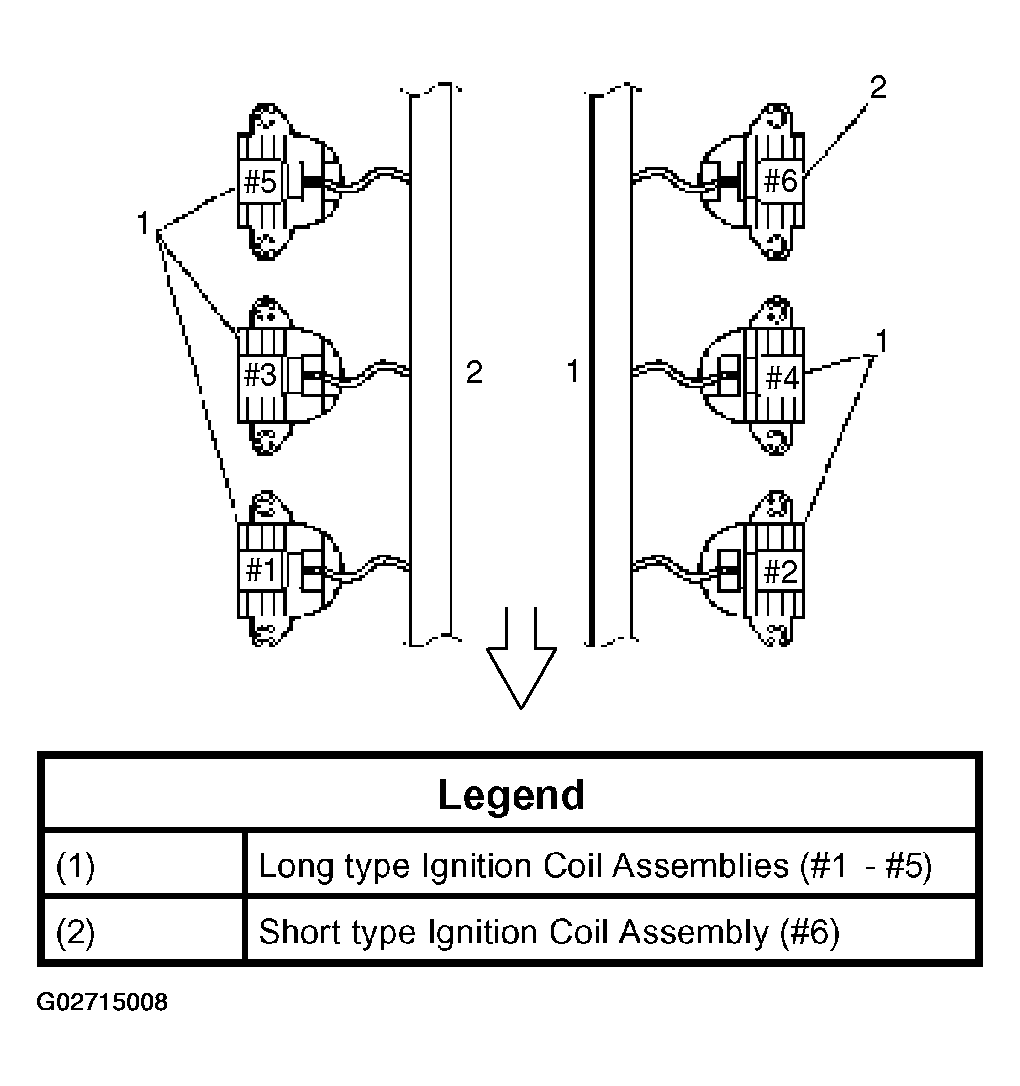

Fig 2: Identifying Ignition Coil Assemblies
Courtesy of ISUZU MOTOR CO.
Connect battery ground cable.
