Connector Identification

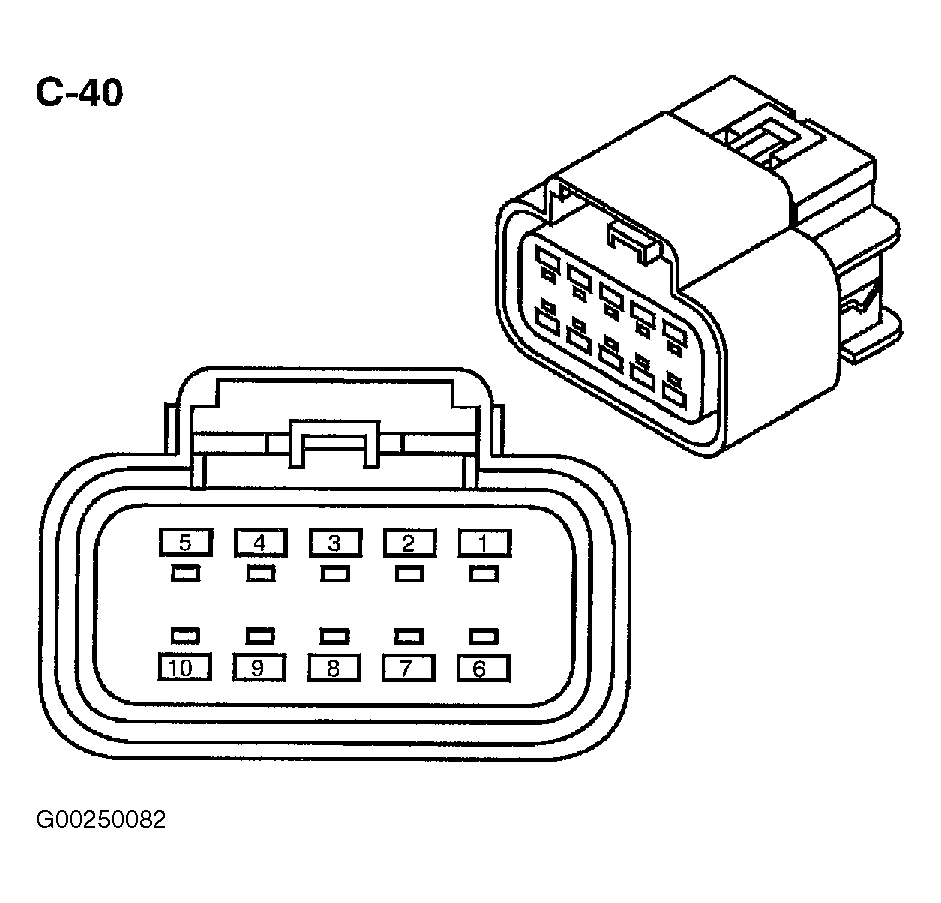

Fig 1: Identifying Acceleration Position Sensor Assembly Connector Terminals (C-40)

Courtesy of ISUZU MOTOR CO.

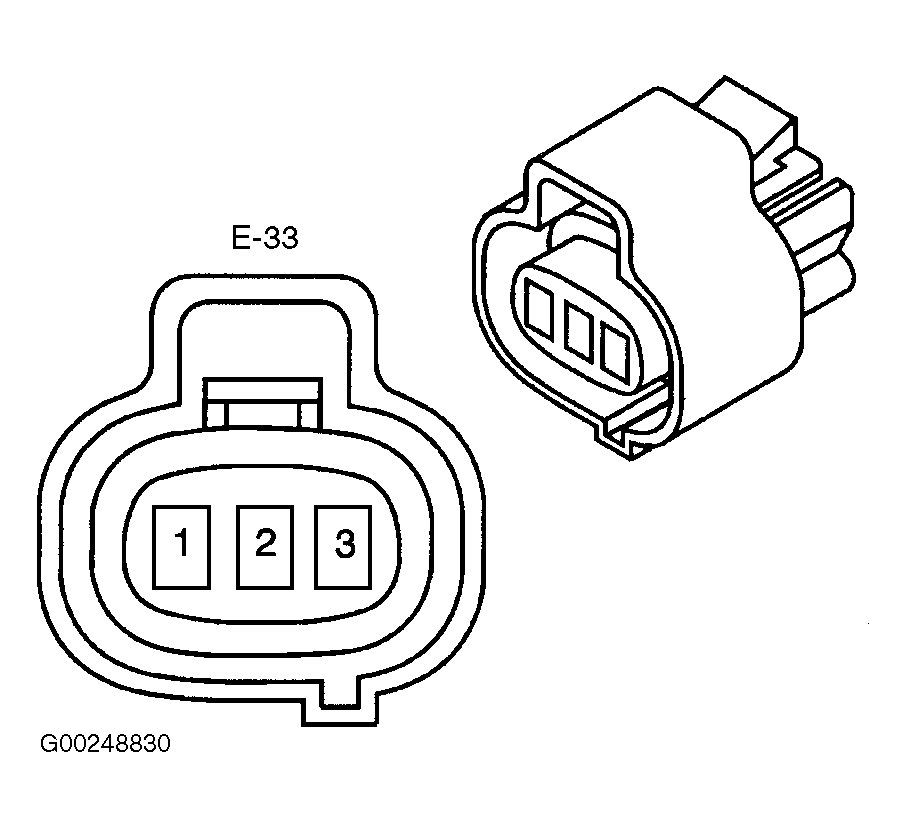

Fig 2: Identifying Crankshaft Position Sensor Connector Terminals (E-33)

Courtesy of ISUZU MOTOR CO.

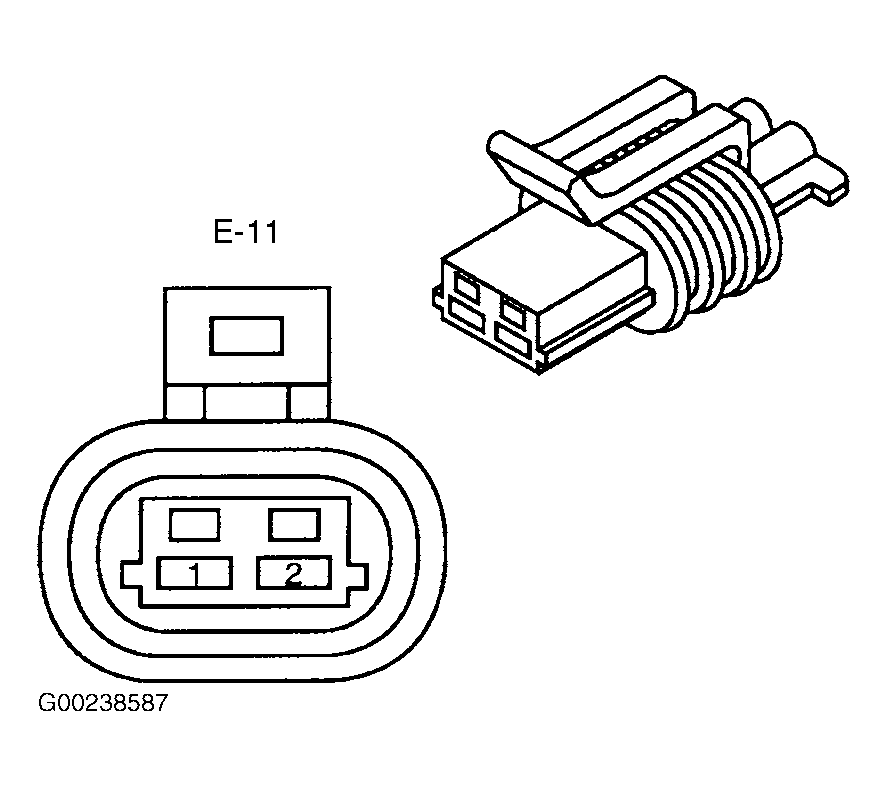

Fig 3: Identifying Engine Coolant Temperature Sensor Connector Terminals (E-11)

Courtesy of ISUZU MOTOR CO.

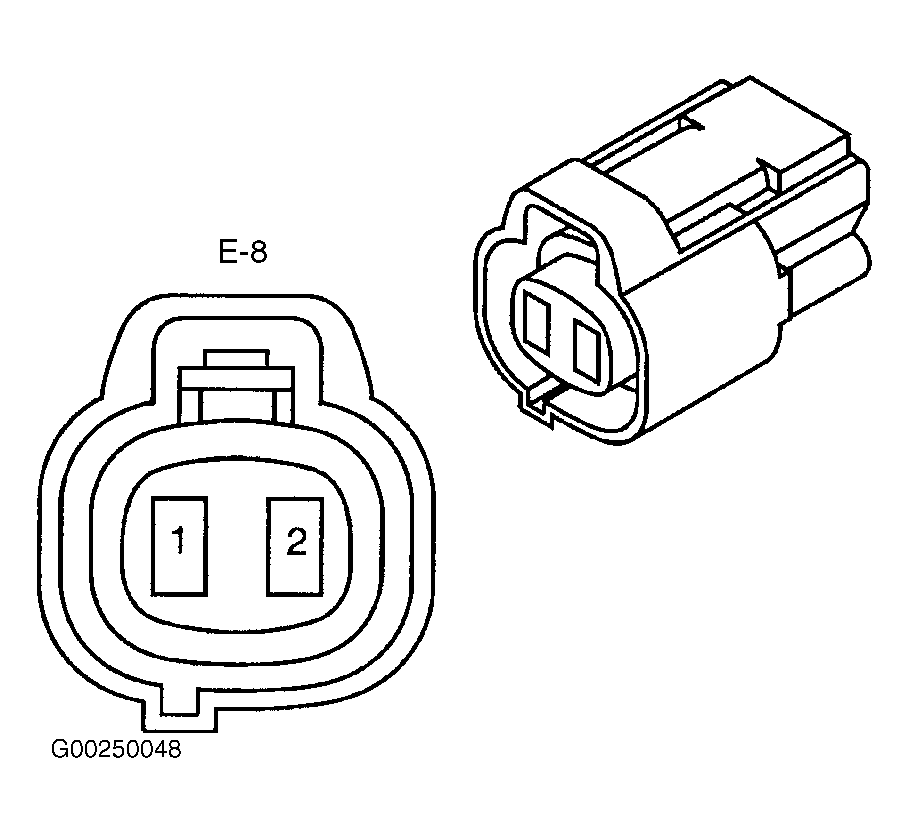

Fig 4: Identifying Evaporative Emission Canister Purge Valve Connector Terminals (E-8)

Courtesy of ISUZU MOTOR CO.

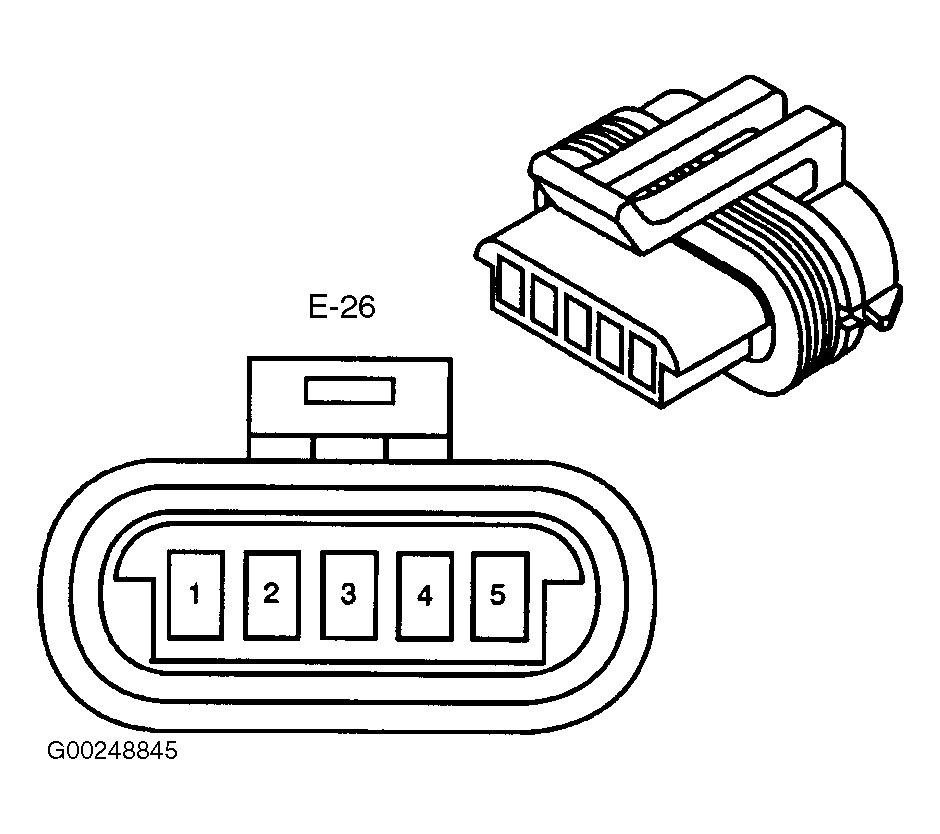

Fig 5: Identifying Exhaust Gas Recirculation Solenoid Valve Connector Terminals (E-26)

Courtesy of ISUZU MOTOR CO.

Fig 6: Identifying Fuel Injector Connector Terminals (E-15, E16, E-17, E-27, E-28, E-29)

Courtesy of ISUZU MOTOR CO.

Fig 7: Identifying Heated Oxygen Sensor Connector Terminals (E-36, E-37, E-38, & E-39)

Courtesy of ISUZU MOTOR CO.

Fig 8: Identifying Ignition Coil Connector Terminals (E-12, E-13, E-14, E30, E-31, & E-32)

Courtesy of ISUZU MOTOR CO.

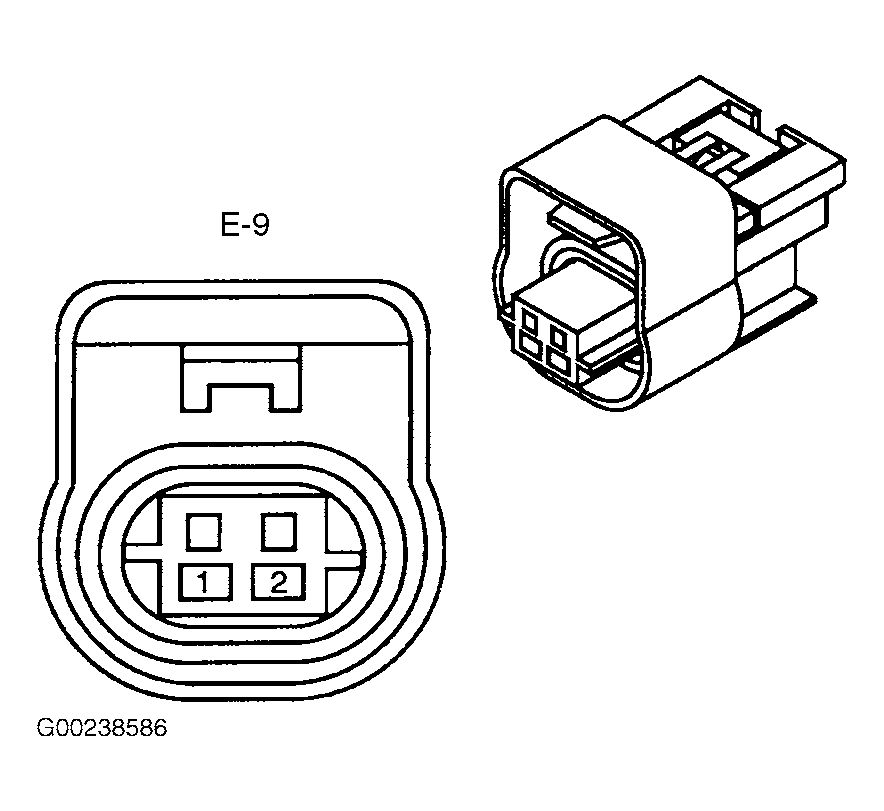

Fig 9: Identifying Intake Air Temperature Sensor Connector Terminals (E-9)

Courtesy of ISUZU MOTOR CO.

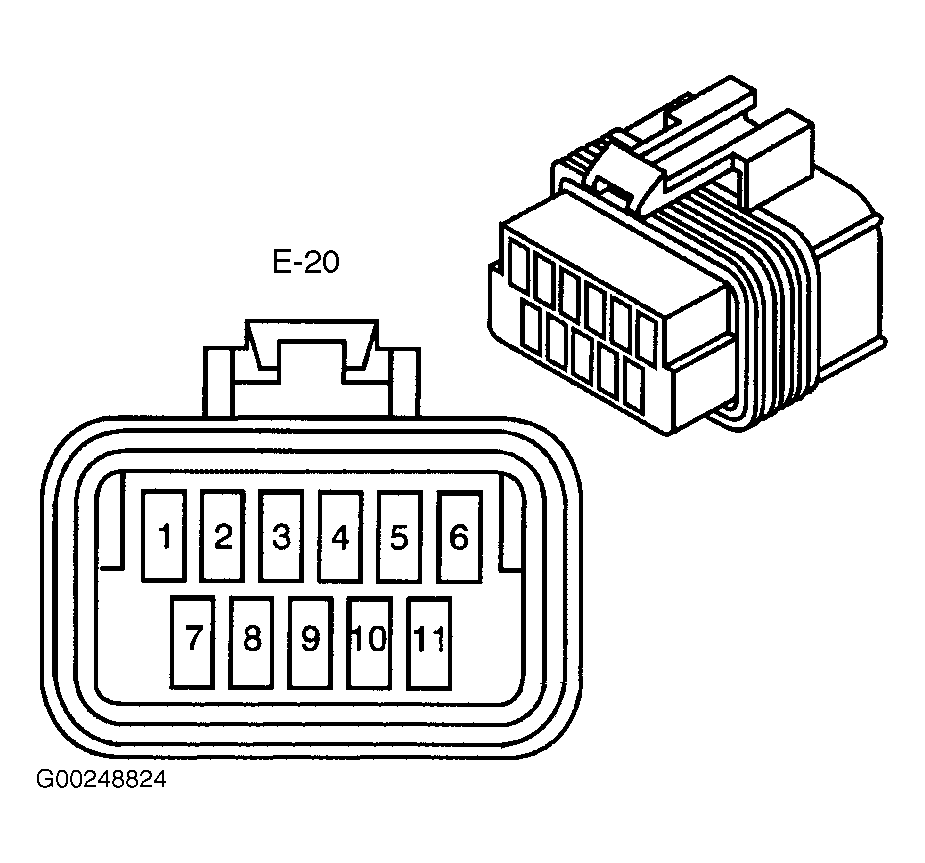

Fig 10: Identifying ION Sensing Module Connector Terminals (E-20)

Courtesy of ISUZU MOTOR CO.

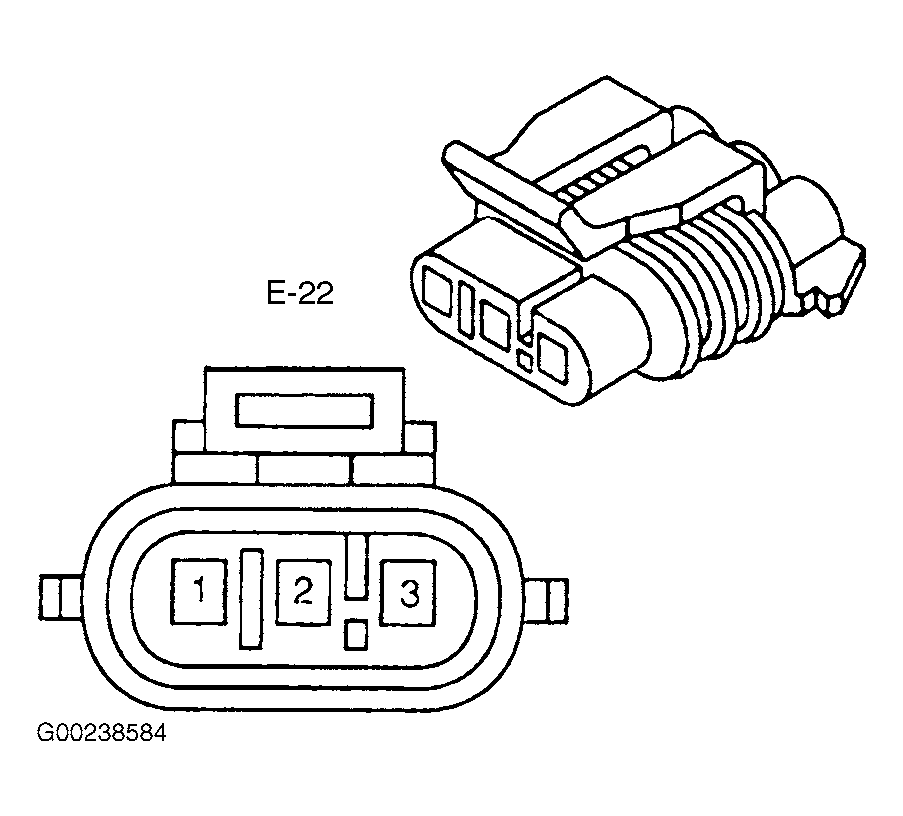

Fig 11: Identifying Manifold Absolute Pressure Sensor Connector Terminals (E-22)

Courtesy of ISUZU MOTOR CO.

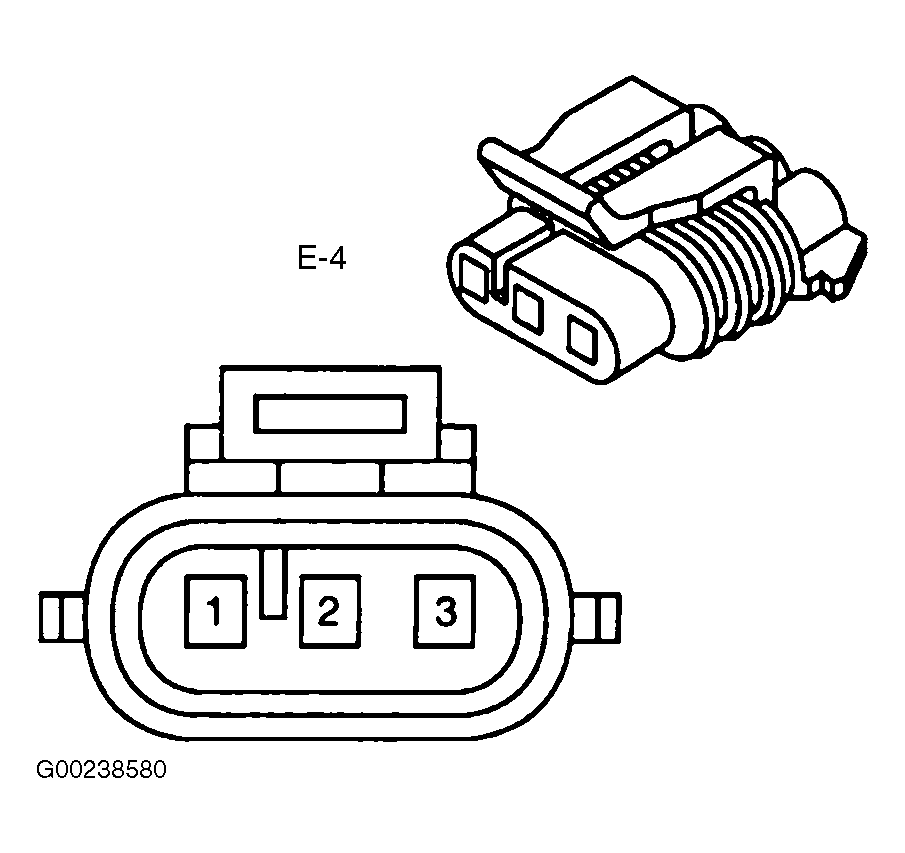

Fig 12: Identifying Mass Air Flow Sensor & Fuel Vapor Pressure Sensor Connector Terminals (E-4)

Courtesy of AUDI OF AMERICA, INC.

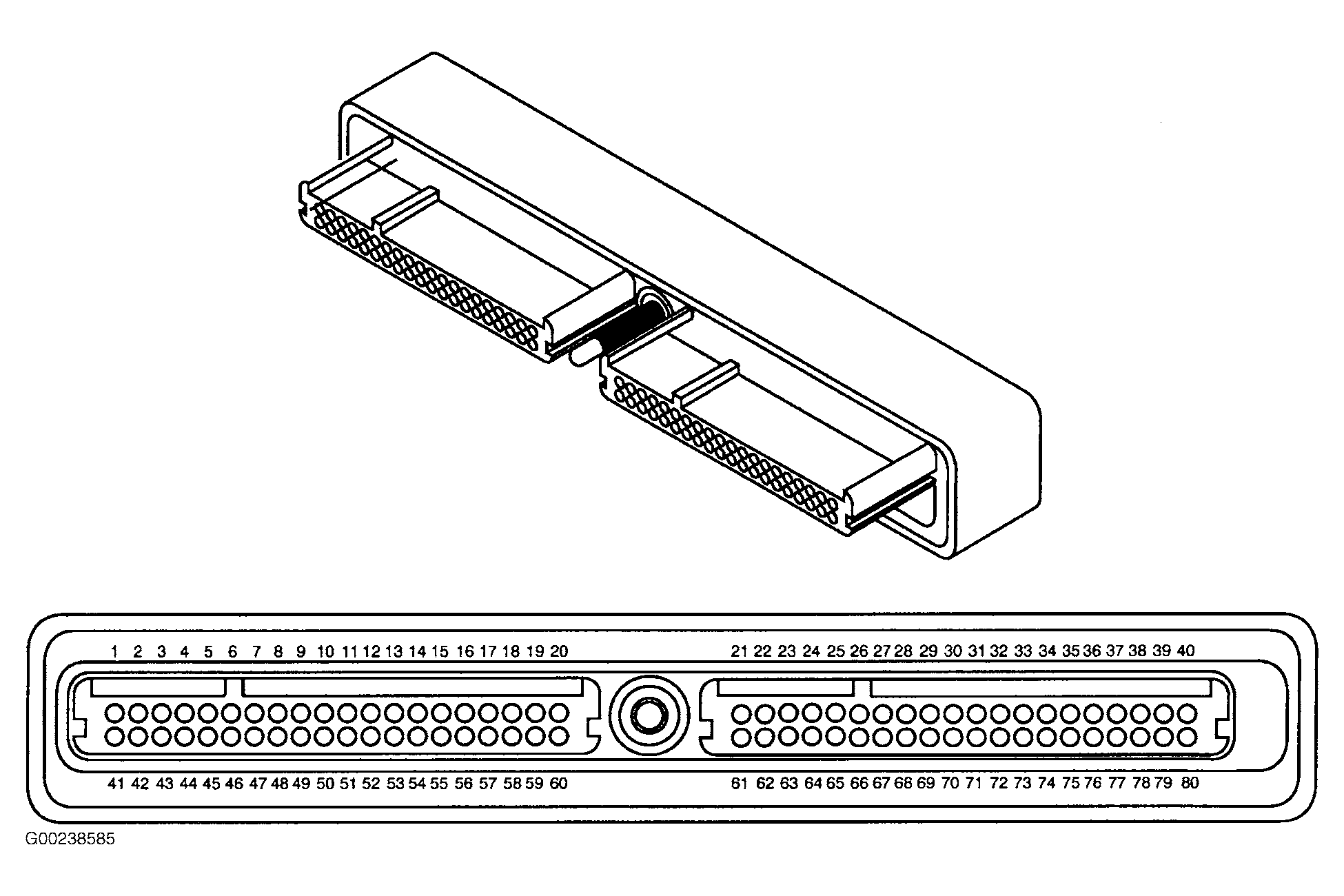

Fig 13: Identifying Powertrain Control Module Connector Terminals (E-34 & E-35)

Courtesy of ISUZU MOTOR CO.

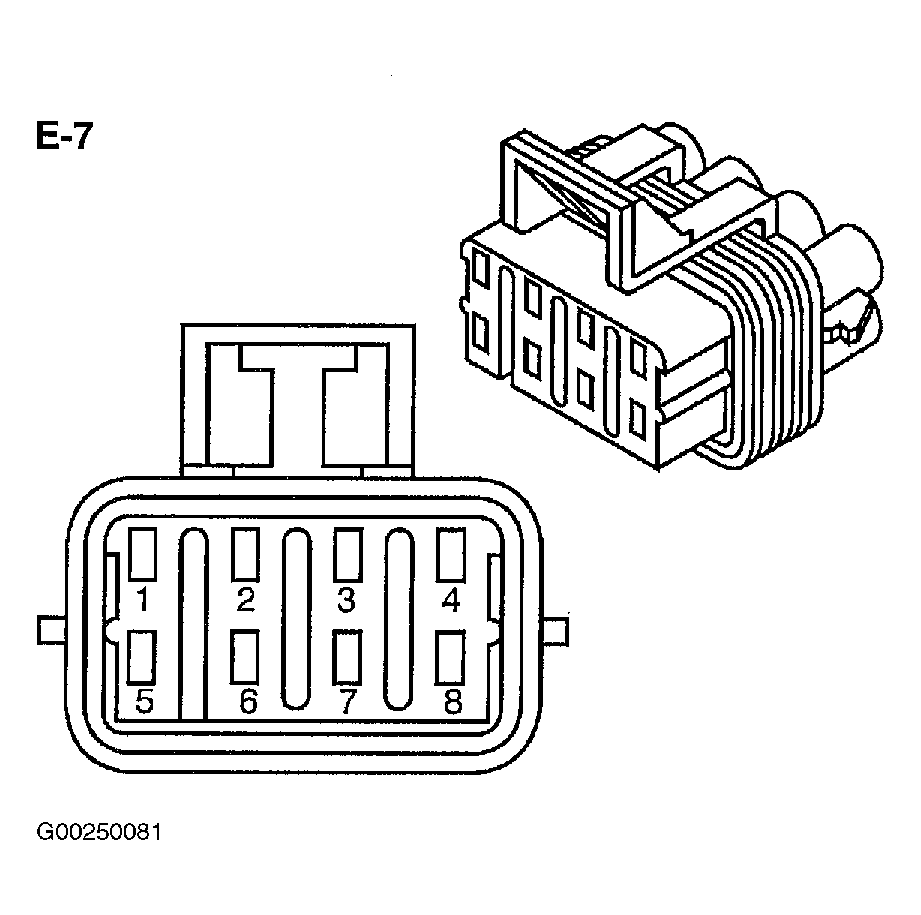

Fig 14: Identifying Throttle Valve Assembly Connector Terminals (E-7)

Courtesy of ISUZU MOTOR CO.

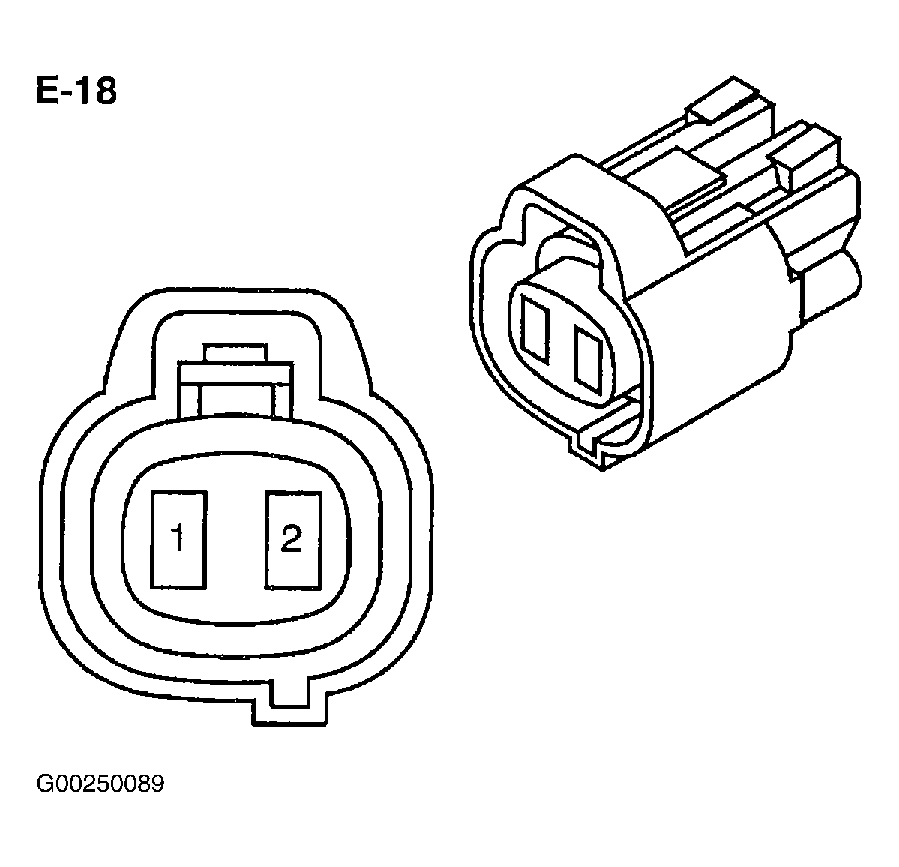

Fig 15: Identifying Variable Intake Manifold Vacuum Switching Valve Connector Terminals (E-18)

Courtesy of ISUZU MOTOR CO.

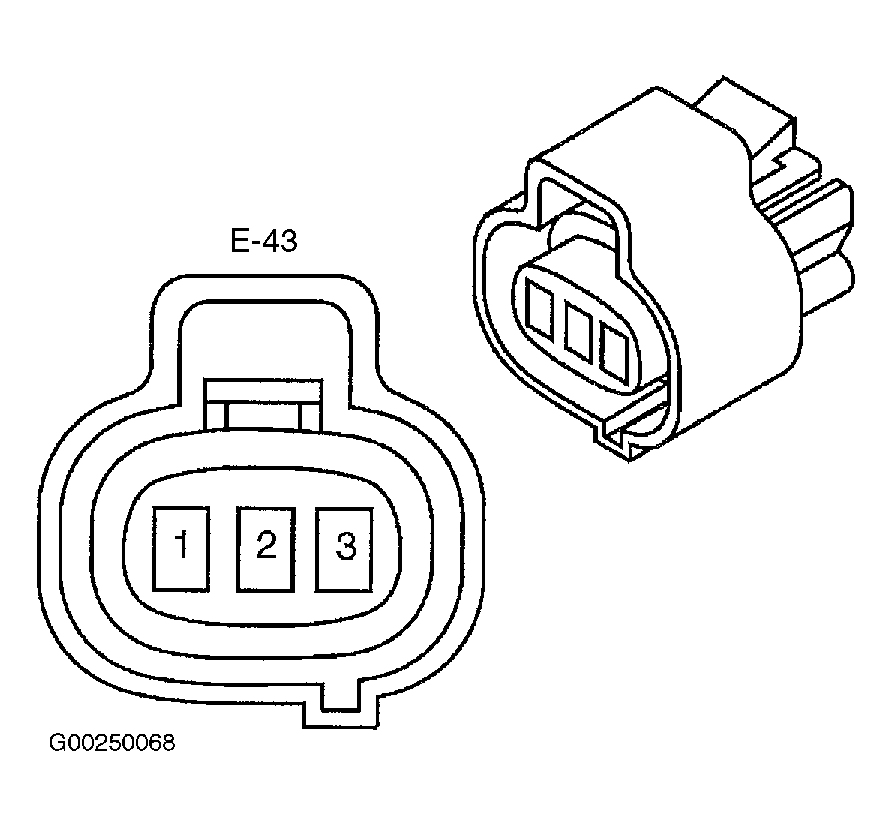

Fig 16: Identifying Vehicle Speed Sensor Connector Terminals (E-43)

Courtesy of ISUZU MOTOR CO.
