Diagnostic Procedure

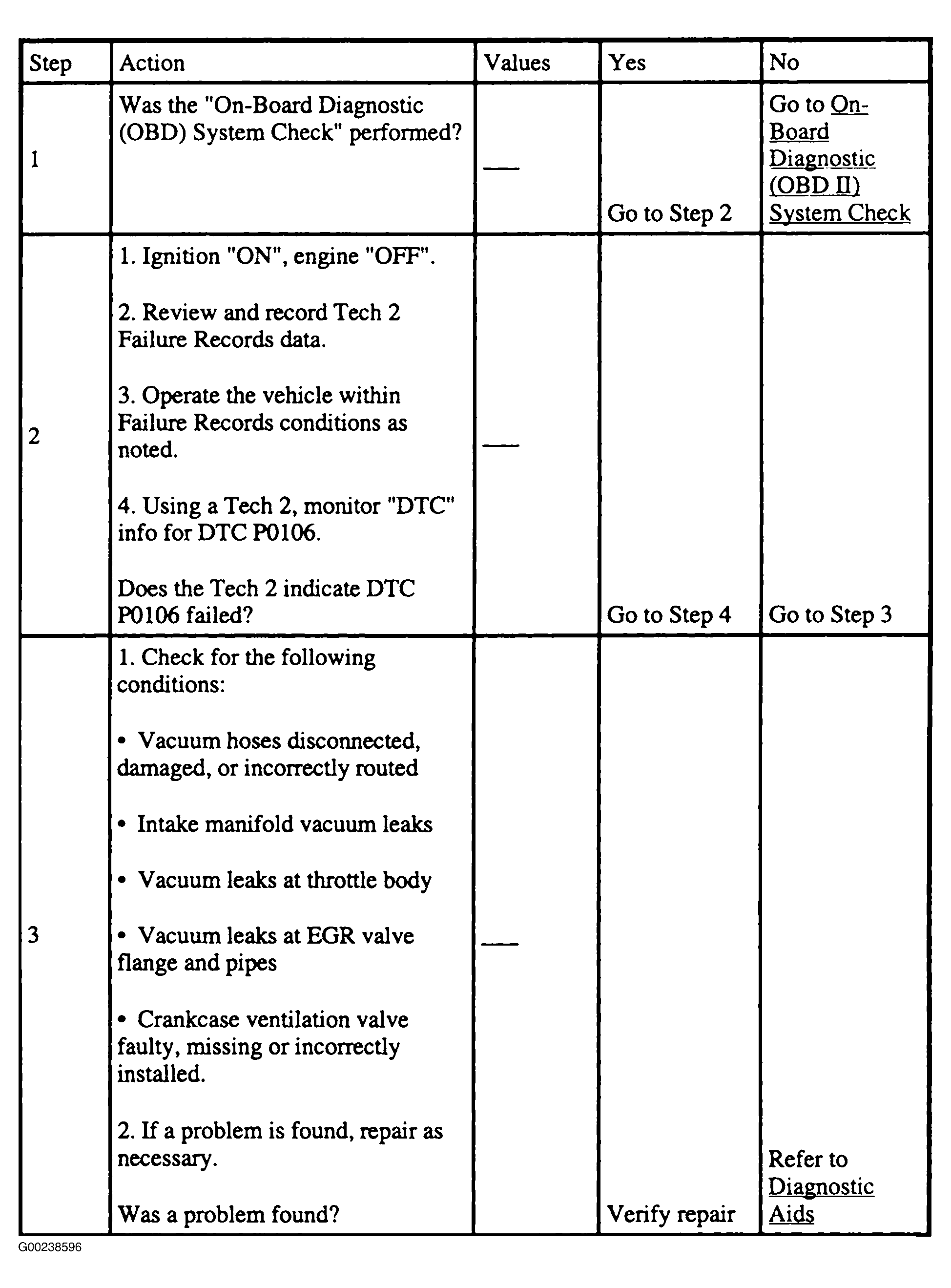

Fig 1: DTC P0106: MAP Sensor System Performance (Steps 1-3)

Courtesy of ISUZU MOTOR CO.

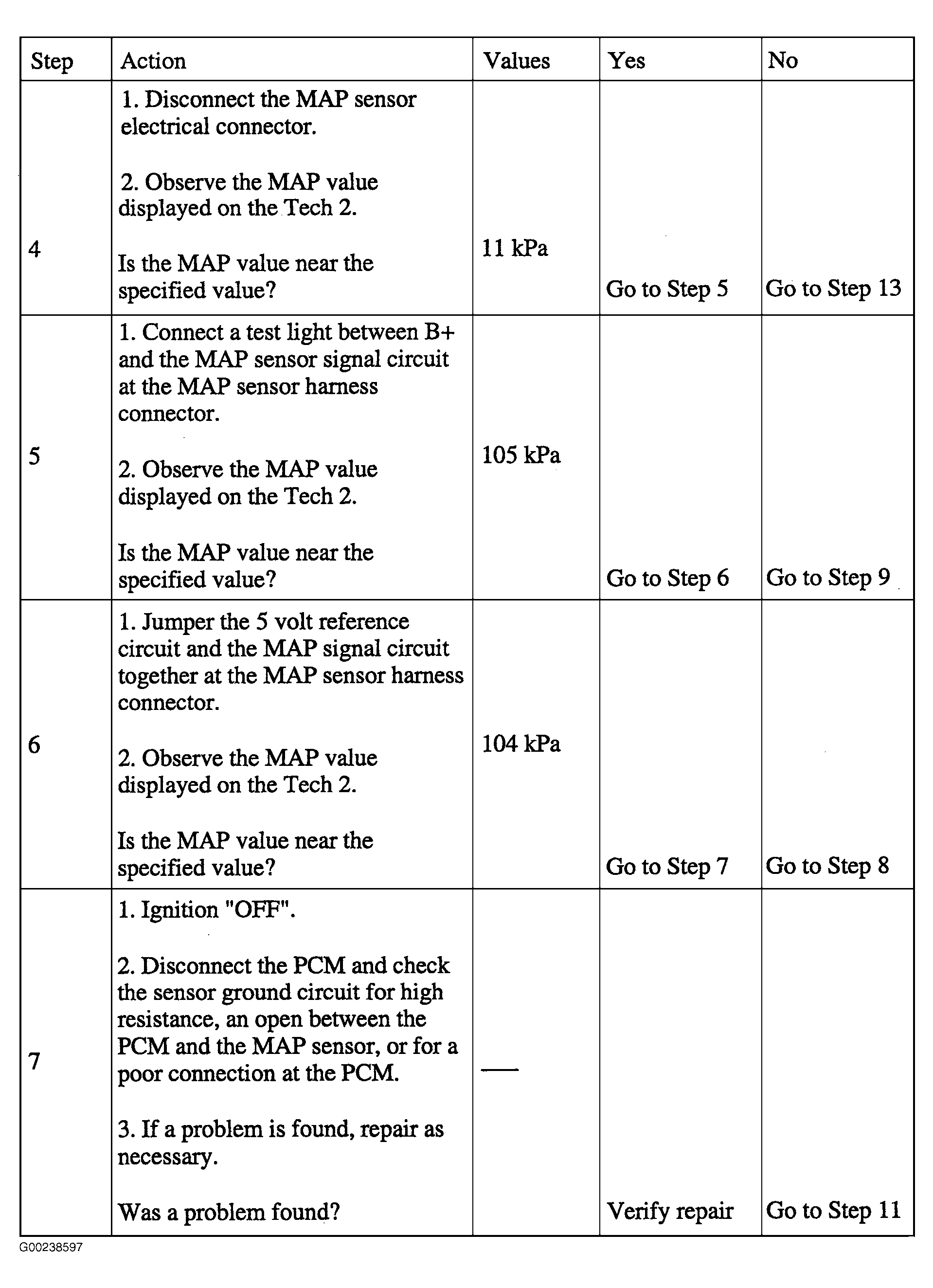

Fig 2: DTC P0106: MAP Sensor System Performance (Steps 4-7)

Courtesy of ISUZU MOTOR CO.

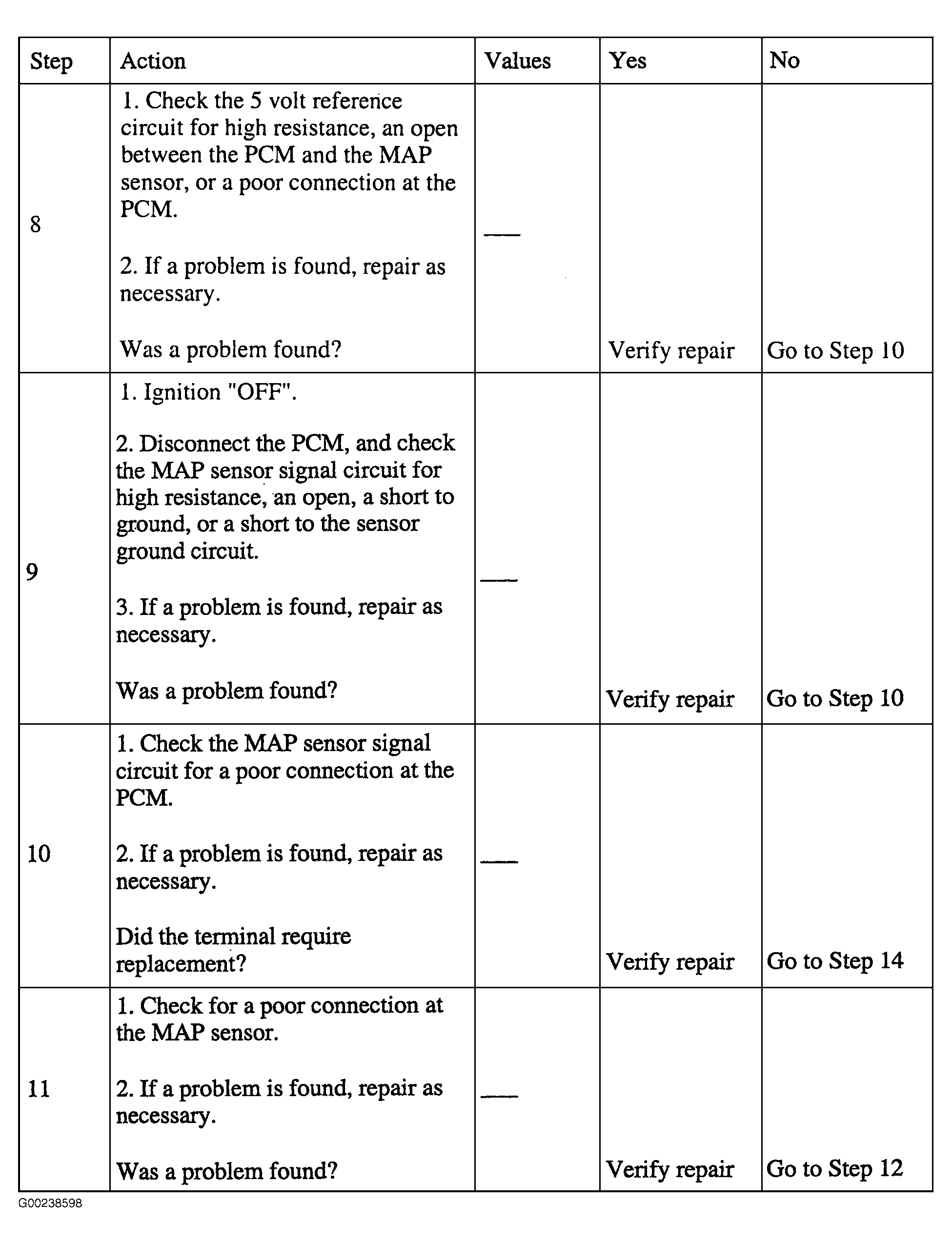

Fig 3: DTC P106: MAP Sensor System Performance (Steps 8-11)

Courtesy of ISUZU MOTOR CO.

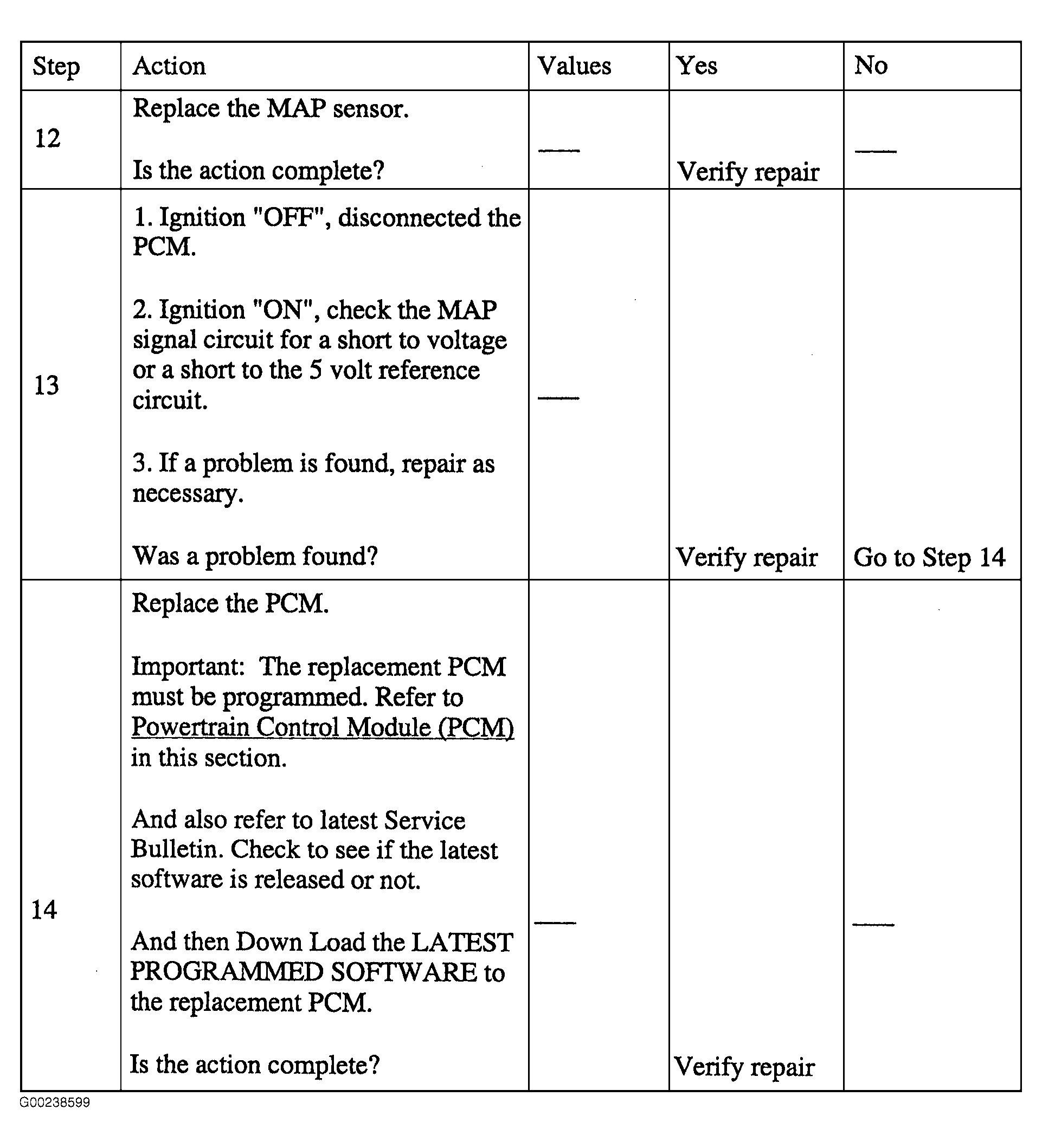

Fig 4: DTC P0106: MAP Sensor System Performance (Steps 12-14)

Courtesy of ISUZU MOTOR CO.
