DTC P1310: Ion Sensing Module Diagnostic
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

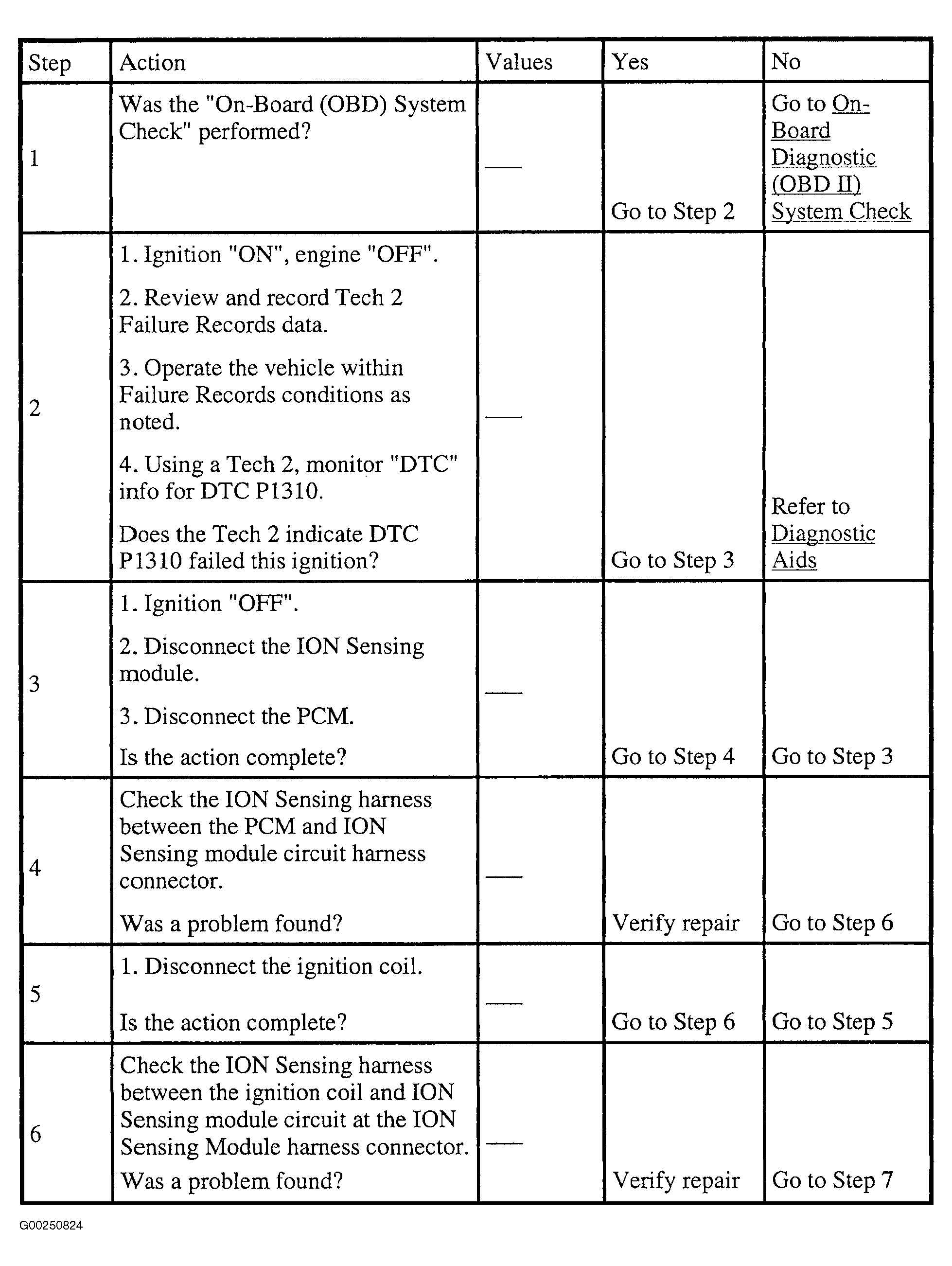

Fig 1: DTC P1310: ION Sensing Module Diagnostic (Steps 1-6)
Courtesy of ISUZU MOTOR CO.

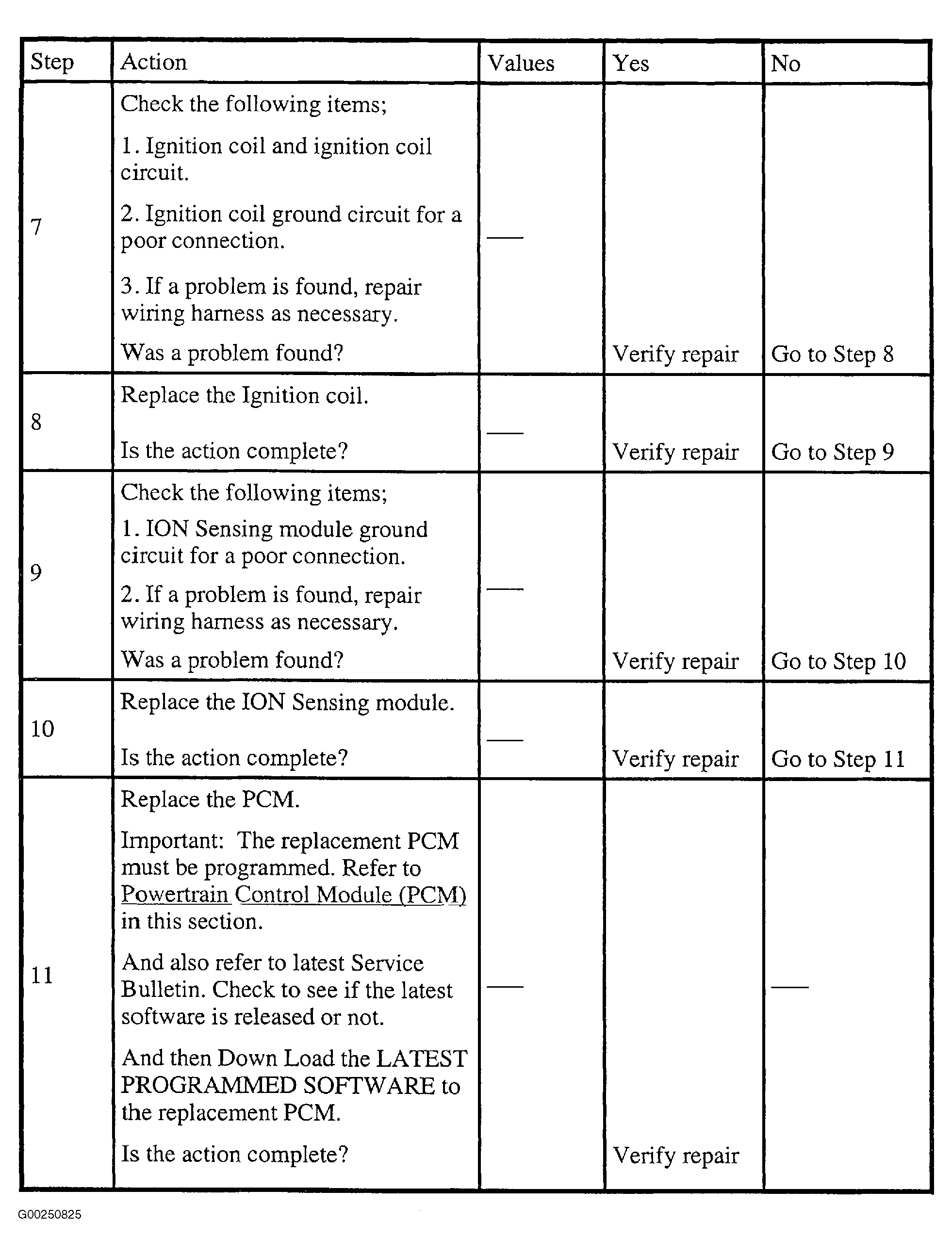

Fig 2: DTC P1310: ION Sensing Module Diagnostic (Steps 7-11)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
