Engine Controls - Self-Diagnostics
>>
Diagnostic Tests
>>
DTC P1625: Powertrain Control Module Unexpected Reset
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

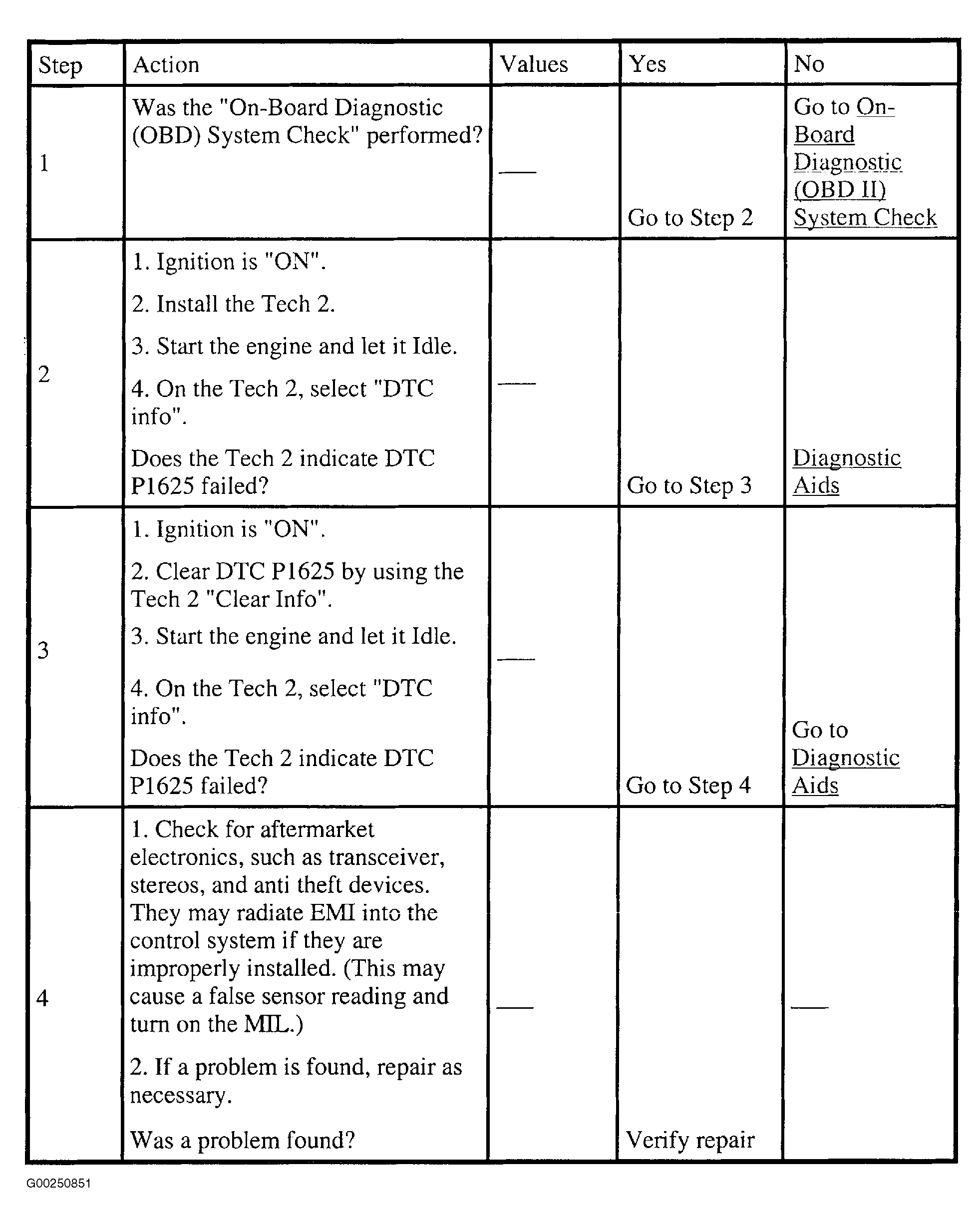

Fig 1: DTC P1625: PCM Unexpected Reset
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
