Diagnostic Procedures

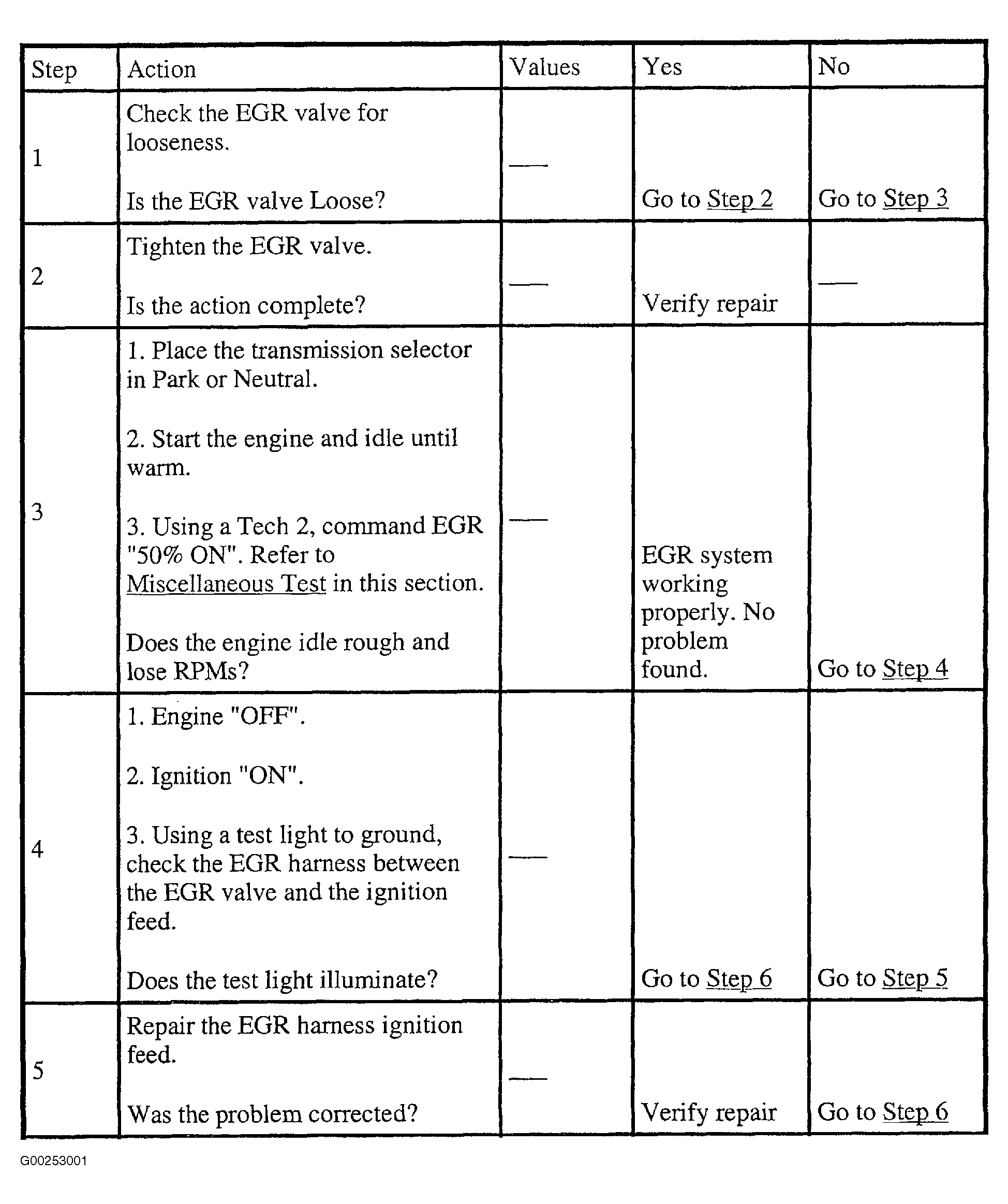

Fig 1: Identifying EGR System Check (Steps 1-5)
G00253001Courtesy of ISUZU MOTOR CO.

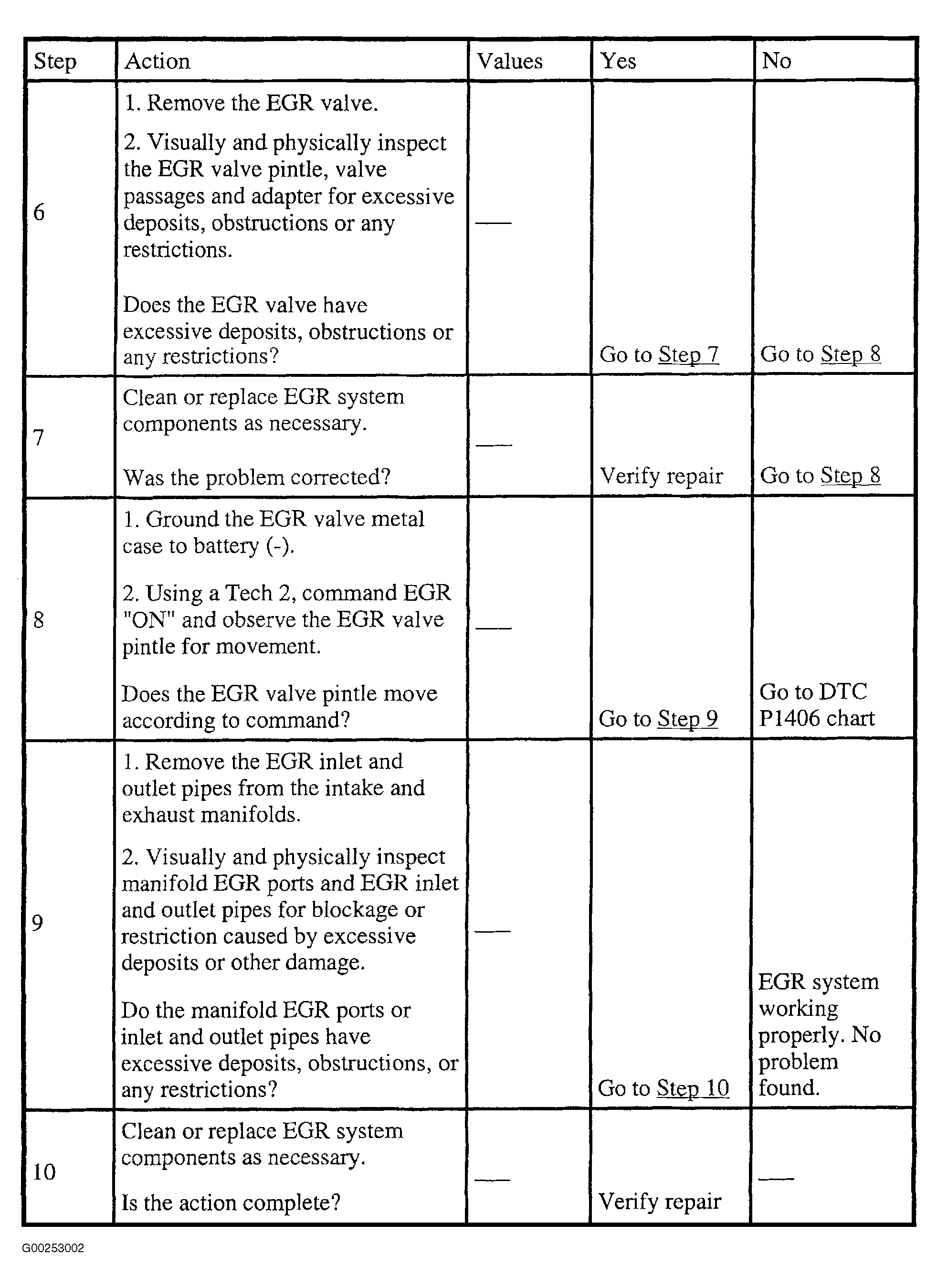

Fig 2: Identifying EGR System Check (Steps 6-10)
G00253002Courtesy of ISUZU MOTOR CO.
