Powertrain Control Module Location

PCM is located at left of engine compartment. See Fig 1.

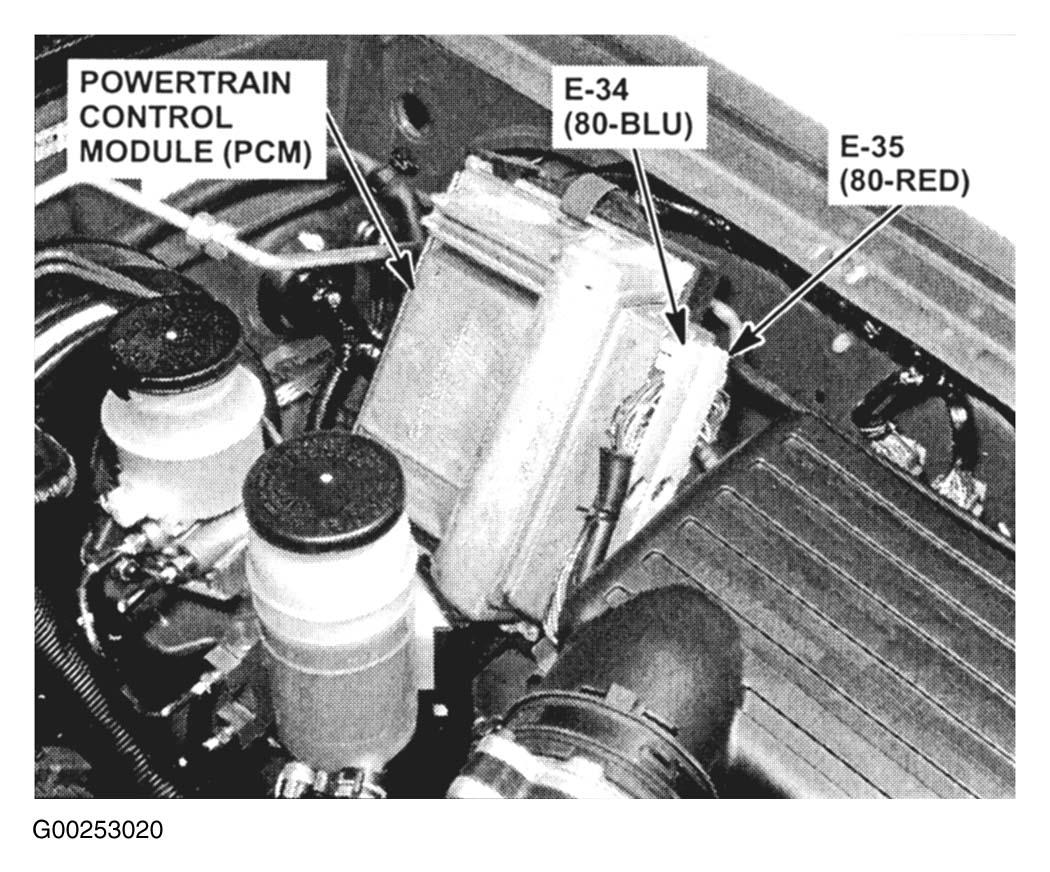

Fig 1: Locating PCM & Connectors
G00253020Courtesy of ISUZU MOTOR CO.
